104mm 120W Induction Motor Manufacturer

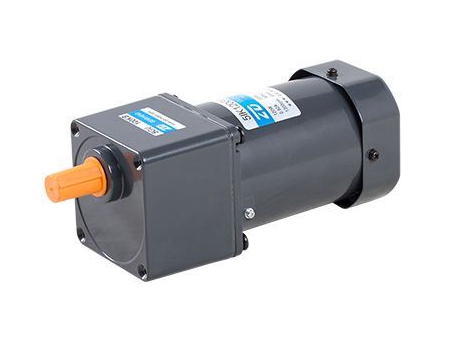

104mm 120W Induction Motor

Request a Quote

View All: http://zd-drivers.com/1-1-8-induction-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
6IK120GU-AF	120	1ph 100	50	2.10	600	930	1250	30
			60	2.50		750	1550
6IK120GU-EF	120	1ph 110	60	1.70	600	750	1550	20
		1ph 120		1.80
6IK120GU-CF	120	1ph 220	50	0.95	750	930	1250	8.0
		1ph 230
6IK120GU-HF	120	1ph 220	60	0.95	700	750	1550	8.0
		1ph 230		1.00
6IK120GU-SF	120	3ph 220	50	0.75	2200	890	1300	-
			60	0.70	2000	730	1600
6IK120GU-S3F	120	3ph 380	50	0.43	2200	890	1300	-
			60	0.40	2000	730	1600

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
6IK120GU-AF 6IK120GU-EF 6IK120GU-CF 6IK120GU-HF 6IK120GU-SF 6IK120GU-S3F	6GU()RC 6GU()RT	Allowance Torque	50Hz	4.26	5.68	7.89	9.47	11.4	15.8	18.9	22.7	28.4	34.1	42.6	51.1	56.8	60.0	60.0	60.0
	6GU()RC 6GU()RT	Allowance Torque	60Hz	3.44	4.58	6.36	7.64	9.16	12.7	15.3	18.3	22.9	27.5	34.4	41.2	45.8	55.0	60.0	60.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Type Motor/Gearhead	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
6IK120GU-AF 6IK120GU-CF 6IK120GU-SF	6GU()K	50Hz	2.30	2.70	3.80	4.50	5.60	6.80	6.68	8.50	10.2	12.2	12.0	15.3	18.4	22.1	24.0	30.7	36.8	40.0	40.0	40.0	40.0	40.0	40.0	40.0
			23.4	27.5	38.7	45.9	57.1	69.3	68.2	86.7	104	124	123	156	187	225	245	313	375	400	400	400	400	400	400	400
			2.22	2.60	3.60	4.30	5.40	6.50	6.42	8.10	9.70	11.7	11.6	14.7	17.6	21.1	23.2	29.4	35.2	40.0	40.0	40.0	40.0	40.0	40.0	40.0
			2.40	26.5	36.7	43.8	55.0	66.3	65.6	87.6	98.8	119	118	149	179	215	236	300	359	400	400	400	400	400	400	400

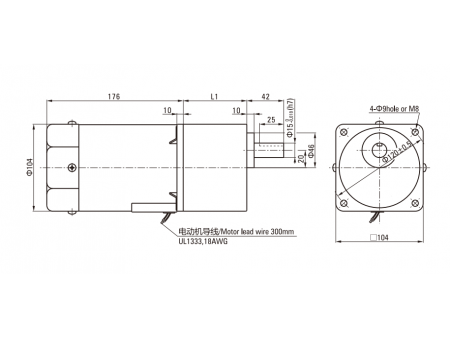

L1= 75mm
