104mm 200W Induction Motor Manufacturer

104mm 200W Induction Motor

Request a Quote

View All: http://zd-drivers.com/1-1-10-induction-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
6IK200GU-AF	200	1ph 100	50	3.20	900	1520	1250	45
			60	3.50		1230	1550
6IK200GU-EF	200	1ph 110	60	2.75	850	1230	1550	35
		1ph 120		2.65
6IK200GU-CF	200	1ph 220	50	1.40	1000	1520	1250	10
		1ph 230
6IK200GU-HF	200	1ph 220	60	1.40	900	1230	1550	10
		1ph 230
6IK200GU-SF	200	3ph 220	50	1.20	3400	1520	1250	-
			60	1.00	2700	1230	1550
6IK200GU-S3F	200	3ph 380	50	0.69	3400	1520	1250	-
			60	0.58	2700	1230	1550

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
6IK200GU-AF 6IK200GU-EF 6IK200GU-CF 6IK200GU-HF 6IK200GU-SF 6IK200GU-S3F	6GU()RC 6GU()RT	Allowance Torque	50Hz	9.28	11.1	13.9	16.7	20.1	25.2	30.3	36.3	50.4	60.0	60.0	60.0	60.0	60.0	60.0	60.0
	6GU()RC 6GU()RT	Allowance Torque	60Hz	7.49	8.98	11.2	13.5	16.2	20.3	24.4	29.3	40.7	48.8	60.0	60.0	60.0	60.0	60.0	60.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	2.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
6IK200GU-AF 6IK200GU-EF 6IK200GU-CF 6IK200GU-HF 6IK200GU-SF	6GU()K	50Hz	3.71	4.46	6.19	7.43	9.28	11.1	11.9	13.9	16.7	20.1	20.8	25.2	30.3	36.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
6IK200GU-AF 6IK200GU-EF 6IK200GU-CF 6IK200GU-HF 6IK200GU-SF	6GU()K	60Hz	2.99	3.59	4.99	5.99	7.49	8.98	9.70	11.2	13.5	16.2	17.2	20.3	24.4	29.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0

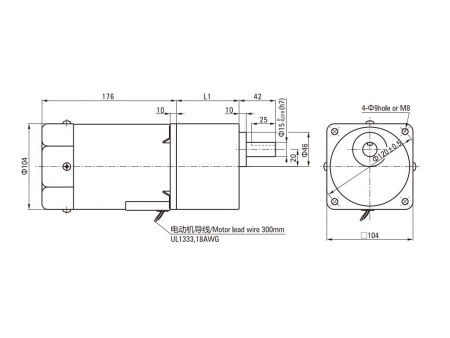

L1=72mm
