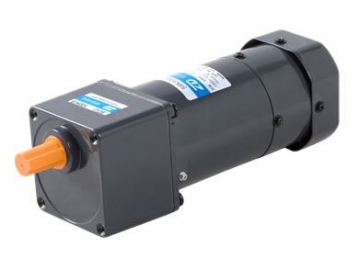

104mm 120W Brake Motor
Request a Quote
Motor Specifications
| Model | Rating | Output Power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF |
| | 30min | 120 | 1ph 100 | 50 | 2.10 | 600 | 930 | 1250 | 35 |
| 60 | 2.50 | 750 | 1550 | ||||||
| | 30min | 120 | 1ph 110 | 60 | 1.70 | 600 | 750 | 1550 | 30 |
| 1ph 120 | 1.80 | ||||||||
| | 30min | 120 | 1ph 220 | 50 | 0.95 | 750 | 930 | 1250 | 8.0 |
| 1ph 230 | |||||||||
| | 30min | 120 | 1ph 220 | 60 | 0.95 | 700 | 750 | 1550 | 8.0 |
| 1ph 230 | 1.00 | ||||||||
| | 30min | 120 | 3ph 220 | 50 | 0.75 | 2200 | 890 | 1250 | - |
| 60 | 0.70 | 2000 | 730 | 1550 | |||||
| | 30min | 120 | 3ph 380 | 50 | 0.43 | 2200 | 890 | 1250 | - |
| 60 | 0.40 | 2000 | 730 | 1550 |
Gear Motor-Torque TableAllowance Torque Unit: N.m
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
| Speedr/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 6RK120GU-AFM GRK120GU-EFM 6RK120GU-CFM 6RK120GU-HFM 6RK120GU-SFM 6RK120GU-S3FM | 6GU()RC 6GU()RT | Allowance Torque | 50Hz | 4.26 | 5.68 | 7.89 | 9.47 | 11.4 | 15.8 | 18.9 | 22.7 | 28.4 | 34.1 | 42.6 | 51.1 | 56.8 | 60.0 | 60.0 | 60.0 |
| 60Hz | 3.44 | 4.58 | 6.36 | 7.64 | 9.16 | 12.7 | 15.3 | 18.3 | 22.9 | 27.5 | 34.4 | 41.2 | 45.8 | 55.0 | 60.0 | 60.0 | |||
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 2.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| Speed r/min | 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | |
| 6RK120GU-AFM 6RK120GU-CFM 6RK120GU-HFM 6RK120GU-SFM 6RK120GU-S3FM | 6GU()K | 50Hz | 1.80 | 2.20 | 3.00 | 3.60 | 4.60 | 5.50 | 5.40 | 6.80 | 8.20 | 9.80 | 9.70 | 12.4 | 14.9 | 17.8 | 19.4 | 24.8 | 29.7 | 37.1 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 60Hz | 1.80 | 2.10 | 3.00 | 3.50 | 4.40 | 5.30 | 5.20 | 6.70 | 8.00 | 9.60 | 9.40 | 12.0 | 14.5 | 17.3 | 18.8 | 24.1 | 28.9 | 36.1 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | ||
