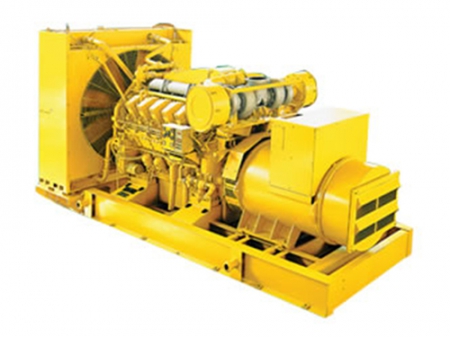

B3000 Diesel Engine(900~1360kW)
Request a Quote
Features of B3000 Diesel Engine
- Compact structure, simple maintenance
- More rugged, powerful and durable
- Improved reliability, better fuel economy
Applications
This powerful diesel engine can be used in oil drilling rigs, small and medium auxiliary power stations and ships etc.
Click Here to
Specification of B3000 Diesel Engine
| Model | Rated power (kW) | Rated rpm (r/min) | Fuel consumption (g/kw.h) | Oil consumption (g/kw.h) | Overall dimensions (mm) | Net weight (kg) |
| BH12V190ZL | 1360 | 1500 | 202 | ≤1.0 | 2950x2280x2069 | 9300 |
| BH12V190PZL | 4189x2345x2636 | 11000 | ||||
| BH12V190ZL-3 | 1210 | 1300 | 2950x2280x2069 | 9300 | ||
| BH12V190PZL-3 | 4189x2345x2636 | 11000 | ||||
| BH12V190ZL-1 | 1160 | 1200 | 2950x2280x2069 | 9300 | ||
| BH12V190PZL-1 | 4189x2345x2636 | 11000 | ||||
| BH12V190ZL-2 | 960 | 1000 | 2950x2280x2069 | 9300 | ||
| BH12V190PZL-2 | 4189x2345x2636 | 11000 |
Technical Parameters
| Structure type | 4-stroke, direct injection combustion chamber, water-cooled, exhaust gas turbocharged, inlet air inter cooling |
| Number and arrangement of cylinders | 12-cylinder V shape 60°angle |
| Diameter of cylinders(mm) | 190 |
| Stroke(mm) | 215 |
| Total displacement(L) | 73.15 |
| Compression ratio | 14.5:1 |
| Exhaust temperature(℃) | ≤650 |
| Outlet temperature(℃) | ≤90 |
| Oil temperature(oil sump,℃) | ≤95 |
| Steady speed change ratio (%) | ≤8(generator sets≤5) |
| Cooling mode | Pressurized water cooling |
| Lubrication mode | Press and spray lubrication |
| Starting mode | Air motor or electric motor starting |
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
