To protect fiber optic from the threat of the application site interference, we give the fiber optic additional layer that can ensure the efficiency of your fiber optic network. Armored fiber optic cables is essential when your installation circumstance is moisture, rodents or other threats.
We provide a variety of armored fiber optic cables with built in armor layers to keep your cable safe from damage and avoid costly network downtime.

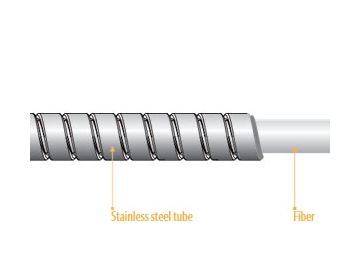

Flexible Steel Tube Armored Optical Fiber Cables
Features- Bare fiber, tight-sleeve fiber protection
- Excellent optical transmission performance with a long service life
- It can be reprocessed into armored fiber
- Enhanced shock-resistance and lateral pressure-resistance
- Rat bite protection
| Fiber Count | Cable Type | Stainless Steel Tube Diameter | Tight-buffer Diameter(mm) | Weight (Kg/KM) | Bend Radius | Crush | |
| Dynamic | Static | (N/100mm) | |||||
| 1 | 0.6KJ | Φ0.6±0.03 | Φ0.25 | 1.2 | 20 | 10 | 8000 |
| 1 | 0.6KJ | Φ0.9±0.05 | Φ0.5 | 2.2 | 50 | 30 | 4500 |

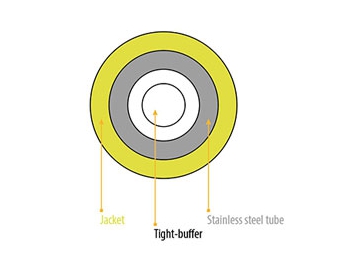

0.9 Flexible Steel Tube Armored Optical Fiber Cables
Features- Outstanding mechanical and environmental performance
- Soft, flexible and stable, easy to splice
- Rat bite protection, Applicable for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardant characteristics that meet the requirements of relevant standards
- Improved functions according to the needs of customers
| Cable Type | Cable Diameter | Cable Weight | Bend Radius | Crush | |
| (mm) | (Kg/KM) | dynamic | static | (N/100mm) | |
| 0.9GJSJU | Φ0.9±0.1 | 3.5 | 20 | 10 | 8000 |

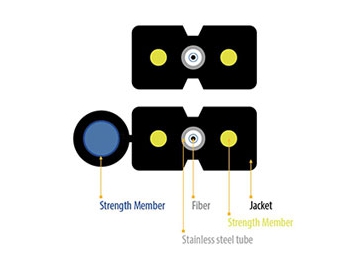

Flexible Steel Tube Armored FTTH Flat Drop Cable
Specifications| Cable Type | Tensile N | Crush (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |
| GJXFKH | 300 | 200 | 6000 | 3000 |
| GJYXCKH | 660 | 300 | 6000 | 3000 |
| Fiber Count | Cable Diameter | Steel diameter(mm) | Thickness(mm) | Fiber diameter |
| 1 | 3.2*2.1±0.2 | 0.9±0.05 | 0.4 | 245±10μm |
| 1 | (5.2±0.2)*(2.1±0.1) | 0.9±0.05 | 0.4 | 245±10μm |

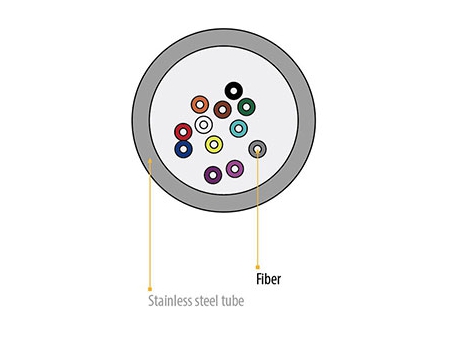

Flexible Steel Tube Armored Fiber Bundle Unit
Features- Bare fiber, tight-sleeve fiber application protection
- Excellent optical transmission performance with a long service life
- It can be reprocessed into armored fiber
- Enhanced shock-resistance and lateral pressure-resistance
- Rat bite protection
| Fiber Count | Cable Type | Stainless Steel Tube Diameter | Tight-buffer Diameter(mm) | Weight (Kg/KM) | Bend Radius | Crush | |
| Dynamic | Static | (N/100mm) | |||||
| 2 | 1.0KJ | Φ1.0±0.05 | Φ0.25 | 2.4 | 50 | 30 | 4500 |
| 4 | 1.4KJ | Φ1.4±0.05 | Φ0.25 | 3.2 | 60 | 30 | 3500 |
| 6 | 1.6KJ | Φ1.6±0.05 | Φ0.25 | 5.6 | 70 | 35 | 3500 |
| 8 | 1.8KJ | Φ1.8±0.1 | Φ0.25 | 6.1 | 70 | 35 | 3500 |
| 12 | 2.0KJ | Φ2.0±0.1 | Φ0.25 | 8.9 | 70 | 35 | 3500 |
Flexible Steel Tube Armored Pull Cable
Features- SUS Spiral tube structure with high mechanical performance
- Outer jacket complies with UL, ROHS
- High pressure resistance, anti-mouse bite, UV protection, etc.
| Cable Type | Cable Diameter (mm) | Steel Diameter (mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | |||||
| 3.3GYFJKH | Φ3.3±0.2 | Φ1.4±0.1 | 11 | 450 | 200 | 15 | 30 | 3500 |
| 4.8GYFJKH | Φ4.8±0.2 | Φ2.8±0.1 | 31 | 1000 | 600 | 60 | 30 | 4000 |
| 7.0GYFJKH | Φ7.0±0.2 | Φ5.0±0.2 | 60 | 600 | 300 | 70 | 35 | 3000 |

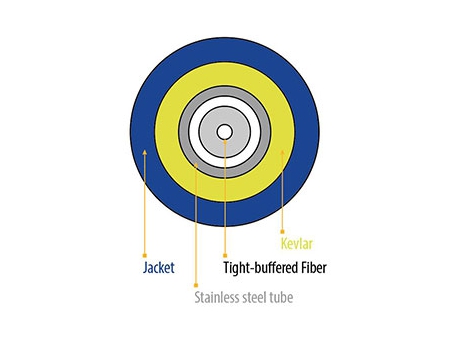

Simplex Flexible Steel Tube Armored Optical Fiber Cable
Features- Outstanding mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter (mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||
| 2.0GJFJKV | Φ2.0±0.1 | 6.5 | 150 | 80 | 50 | 30 | 4500 |
| 3.0GJFJKV | Φ3.0±0.1 | 11 | 450 | 200 | 60 | 30 | 3500 |

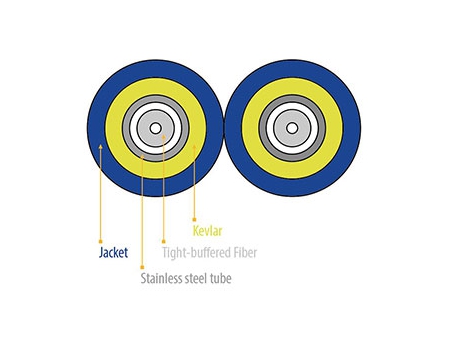

Duplex Flat Flexible Steel Tube Armored Optical Fiber Cable
Features- Outstanding mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter (mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||
| 2.0GJFJKV | Φ2.0±0.1 | 13 | 200 | 100 | 50 | 30 | 4500 |
| 3.0GJFJKV | Φ3.0±0.1 | 22 | 600 | 300 | 60 | 30 | 3500 |

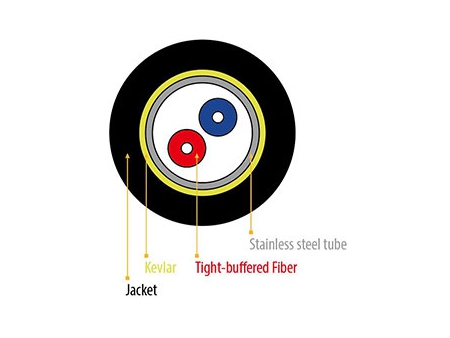

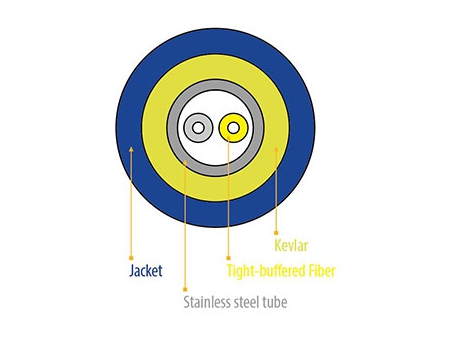

Single Tube Duplex Armored Optical Fiber Cable
Features- Outstanding mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter(mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||
| 3.0GJFJKV | Φ3.0±0.2 | 12.5 | 600 | 300 | 70 | 35 | 3000 |
| 4.8GJFJKV | Φ4.8±0.2 | 27 | 800 | 400 | 100 | 50 | 3000 |

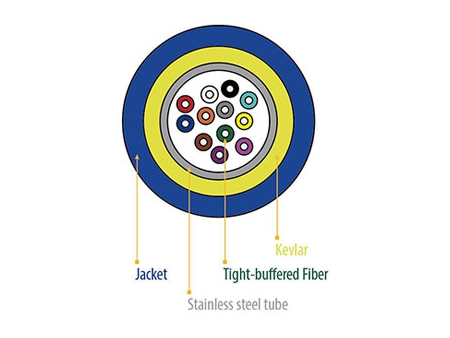

Single Tube Multi-core Armored Optical Fiber Cable
Features- Good mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter (mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||
| 3.0GJFJKV-6S | Φ3.0±0.2 | 12.5 | 400 | 200 | 60 | 30 | 3500 |
| 3.0GJFJKV-8S | Φ3.0±0.2 | 12.7 | 800 | 400 | 70 | 35 | 3000 |
| 3.0GJFJKV-12S | Φ3.0±0.2 | 13 | 1000 | 500 | 90 | 45 | 3000 |
| 4.5GJFJKV-4S | Φ4.5±0.2 | 27.5 | 800 | 400 | 70 | 35 | 3000 |
| 4.8GJFJKV-6S | Φ4.8±0.2 | 32.5 | 1000 | 500 | 100 | 50 | 3000 |
| 4.8GJFJKV-8S | Φ4.8±0.2 | 36 | 1000 | 500 | 100 | 50 | 3000 |
| 5.0GJFJKV-10S | Φ5.0±0.25 | 42 | 1000 | 500 | 120 | 60 | 3000 |
| 6.0GJFJKV-12S | Φ6.0±0.20 | 61 | 1500 | 750 | 170 | 85 | 3000 |

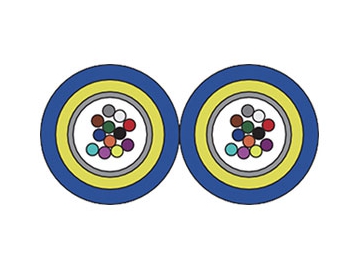

Zip-cord Multi-core Armored Optical Fiber Cable
Features- Good mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter(mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||
| GJSJV-24S | 4.2*8.4 | 33.4 | 1200 | 600 | 90 | 45 | 3500 |

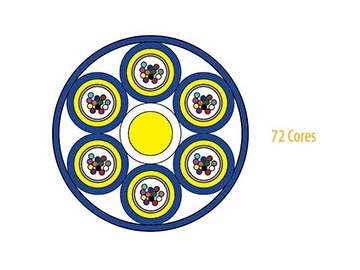

Multi-core Armored Optical Fiber Cable
Features- Good mechanical and environmental performance
- Soft, flexible, stable and easy to splice
- Rat bite protection, can be applied for long distance connections, outdoor services, building cabling, combination cabling of optic and electronic fiber
- Flame retardance complies with relevant standards
- Improved functions based on customer requirements
| Cable Type | Cable Diameter (mm) | Cable Weight (Kg/KM) | Tensile N | Bend Radius | Crush (N/100mm) | ||
| Short Term | Long Term | Dynamic | Static | ||||

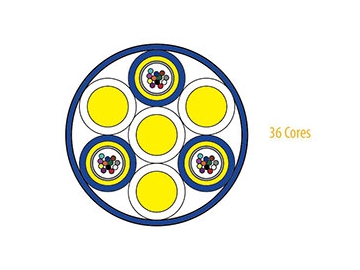

| 10.5GJSJV-36S | Φ10.5±0.2 | 99.5 | 1500 | 800 | 200 | 105 | 3000 |

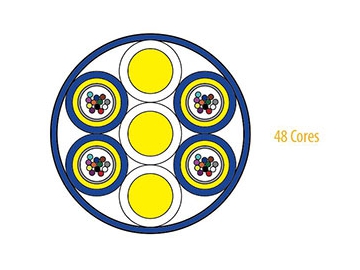

| 10.5GJSJV-48S | Φ10.5±0.2 | 103.8 | 1500 | 800 | 200 | 105 | 3000 |
| 10.5GJSJV-72S | Φ10.5±0.2 | 112.5 | 1500 | 800 | 200 | 105 | 3000 |

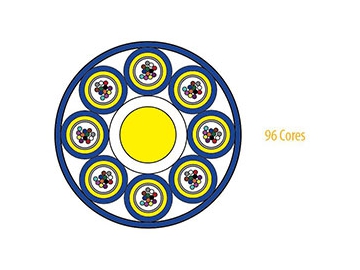

| 13.5GJSJV-96S | Φ13.5±0.3 | 169 | 1800 | 900 | 270 | 135 | 3000 |
| 14.5GJSJV-144S | Φ14.5±0.3 | 204 | 1500 | 800 | 290 | 145 | 3000 |
