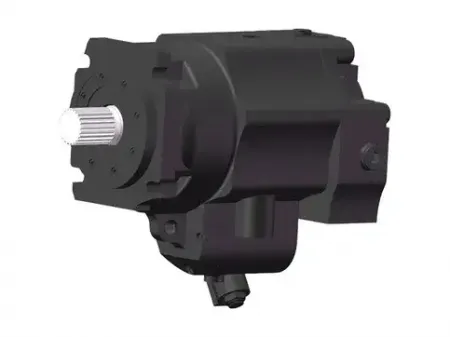

Closed Circuit Axial Piston Motor, LMV Series

Request a Quote

View All: http://hydraulic-component.com/2-4-closed-circuit-axial-piston-motor-lmv-series.html

LMV Series

Closed Circuit Axial Piston Motor

Variable displacement hydraulic motor for closed loop operation

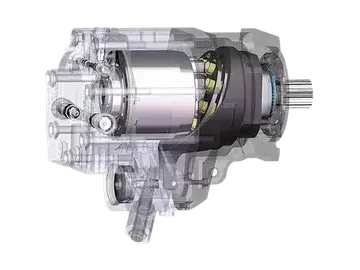

Our LMV closed circuit axial piston motor is engineered for precise control under demanding conditions. As a two-speed variable motor, it adjusts output torque seamlessly through an external control signal and pairs perfectly with planetary gear reducers for smooth, efficient power output. The LMV motor is compact, fast-responding, and highly efficient, making it ideal for hydraulic systems that require high accuracy and quick response, such as construction and mining machinery.

Key Parameters

Displacement (ml/r): 70, 90

Rated pressure (Mpa): 35

Max. pressure (Mpa): 38

Typical Applications

Hydraulic drive forklifts
Skid steer loaders
Agricultural and forestry machinery
Other closed-circuit drive machinery

Features

Max Output Speed: Reaches up to 3800 r/min for powerful applications
Two-Speed Variable Control: Offers both high and low-speed options for flexibility
Integrated Valve Design: Rear cover includes protection and wash valve blocks, simplifying the external setup
Universal Mounting Compatibility: International-standard design for flange, shaft, and ports, allowing strong interchangeability

Looking for a motor that provides precise control and reliability for your toughest jobs? today to see how the LMV Series can enhance your equipment's performance.

Technical Data

Model
Displacement	Rated displacement	ml/r	70	90
Displacement	Max. displacement	ml/r	70	90
Rotation Speed	Max. continuous working speed (full load)	r/min	3200	3000
	Max. working speed (instantaneous)	r/min	3200	3200
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	38
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	334	430
Torque	Max. output torque	Nm	390	502
Power	Max. power	kW	131	157
Temperature	Permissible housing temperature	℃	-40 to 50
Temperature	Max. working temperature of oil tank	℃	80
Weight	Hydraulic motor weight (without hydraulic oil)	kg	42	43

Download Technical Drawings (PDF)

Closed Circuit Axial Piston Motor LMV70(90)
372KB
Closed Circuit Axial Piston Motor LMVC70(90)
366KB
