Closed Circuit Axial Piston Pump, HPV Series Manufacturer

Closed Circuit Axial Piston Pump, HPV Series

Request a Quote

View All: http://hydraulic-component.com/1-2-closed-circuit-axial-piston-pump-hpv-series.html

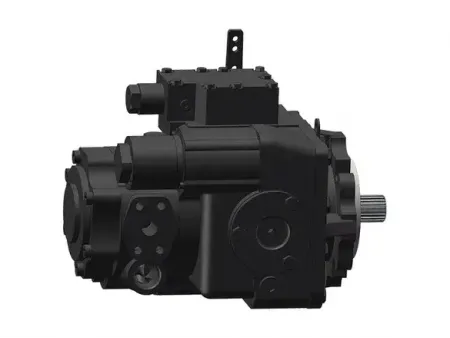

HPV Series

Closed Circuit Axial Piston Pump

Variable displacement hydraulic pump for closed loop operation

Our Highland HPV series closed circuit axial piston pumps are built to meet your toughest demands. As the next generation, developed from the trusted PV Series, the HPV Series offers upgraded performance across key areas to deliver the power, reliability, and efficiency your operations need.

Key Parameters

Displacement (ml/r): 30, 50, 70, 90, 110, 130

Rated pressure (Mpa): 35

Max. pressure (Mpa): 42

Features

Here’s what makes the HPV Series stand out:

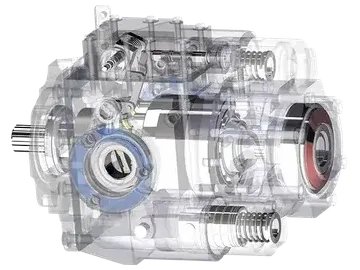

Optimized Refill System: Unlike the traditional PV Series, which uses an external gear pump for refilling, the HPV Series features a cycloidal internal gear pump. This design ensures each pump’s refill system operates independently in multi-pump setups, boosting stability and reliability across your entire system.
Enhanced Design:

We’ve replaced the ball-joint helical spring with a disc spring, making the pump’s overall diameter smaller. This means you get more compact pumps with the same displacement, saving valuable installation space.

Our upgraded high-pressure oil seals make maintenance easier, reduce the risk of hydraulic leaks, and enhance cleanliness and durability for a longer-lasting system.
Cost-Effective Solution: Through refined design and efficient manufacturing, we’ve kept production costs down, allowing us to offer you a high-performance pump that’s also budget-friendly.

Typical Applications

With models like the HPV30, HPV50, HPV70, HPV90, HPV110, and HPV130, the HPV Series covers a range of flow requirements for various applications. Whether you’re in agriculture, construction, road-building, mining, or industrial sectors, these pumps are engineered to provide the dependable hydraulic power you need.

Interested in learning more? today to discover how the HPV Series can drive your projects forward.

Technical Data

Model
Displacement	Displacement range		30-33.3	50-51.6	70-69.8	90-90.5	110-110.8	130
Displacement	Max. displacement	ml/r	33.3	51.6	69.8	90.5	110.8	130
Rotation Speed	Max. continuous working speed (full load)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	42
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Max. output torque	Nm	227	353	480	606	749	885
Power	Continuous power	kW	41	72	98	128	137	162
Power	Max. power	kW	57	87	105	138	159	188
Temperature	Permissible housing temperature	℃	80
Temperature	Max. working temperature of oil tank	℃	70
Angle	Max. swash plate angle	°	±18°
Weight	Hydraulic pump weight (without hydraulic oil)	kg	45	46	63	64	87	87.5
