Closed Circuit Axial Piston Motor, LMF Series

Request a Quote

View All: http://hydraulic-component.com/2-3-closed-circuit-axial-piston-motor-lmf-series.html

LMF Series

Closed Circuit Axial Piston Motor

Fixed displacement hydraulic motor for closed loop operation

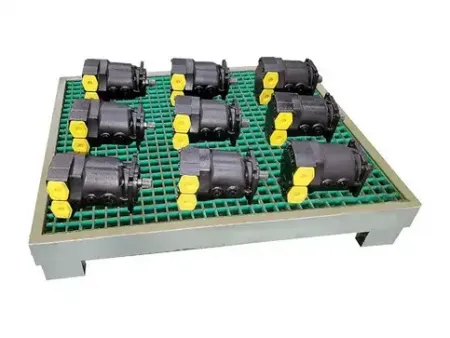

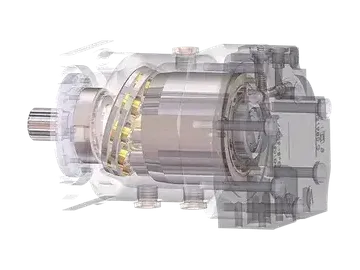

The LMF series closed circuit axial piston motor is built for reliability, using the same robust components as our HMF series, but with a simplified flush valve. Designed to withstand contaminants and built to last, this motor is simple to assemble, disassemble, and maintain. It’s a solid, dependable choice, easily replacing SUNDSTRAND 90 series motors in functionality, with customizable connection dimensions to match your specific requirements.

Key Parameters

Displacement (ml/r): 30, 50, 70, 90, 110, 130, 160, 200

Rated pressure (Mpa): 35

Max. pressure (Mpa): 38

Typical Applications

Hydraulic Drive Forklifts
Skid Steer Loaders
Agricultural & Forestry Machinery
Other Closed-Circuit Drive Machinery

Features

High Output Speed: Reaches up to 3800 r/min, delivering power for demanding applications.
Two-Speed Variable Control: Allows you to switch between high and low speeds for flexibility in performance.
Simplified Design: The integrated flush valve in the rear cover reduces external setup, making the motor easier to maintain.
Strong Interchangeability: With international standard mounting flange, shaft, and ports, it’s built for easy installation and compatibility.

Ready for a rugged, adaptable motor that keeps your equipment running smoothly? today to learn how the LMF Series can support your specific needs.

Technical Data

Model
Displacement	Rated displacement		30	50	70	90	110	130	160	200
Displacement	Max. displacement	ml/r	30	50	70	90	110	130	160	200
Rotation Speed	Max. continuous working speed (full load)	r/min	3200	3200	3200	3000	2700	2700	2400	2400
	Max. working speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900	2600	2500
	Rated speed	r/min	2500						2200
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	38
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	143	248	334	430	526	621	765	956
Torque	Max. output torque	Nm	167	278	390	502	613	725	892	1115
Power	Max. power	kW	56	93	131	157	180	212	224	280
Temperature	Permissible housing temperature	℃	-40 to 50
Temperature	Max. working temperature of oil tank	℃	80
Weight	Hydraulic motor weight (without hydraulic oil)	kg	22	23	33	34	36	38	65	66
