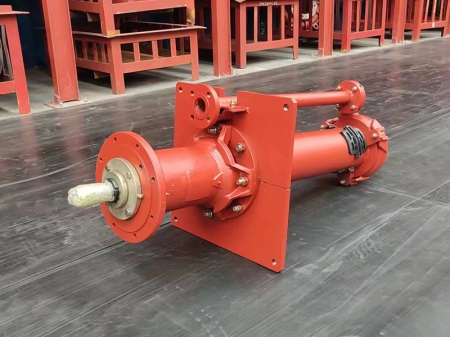

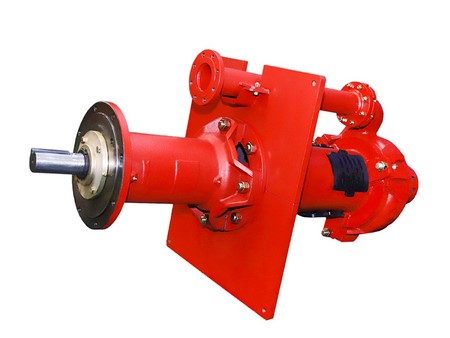

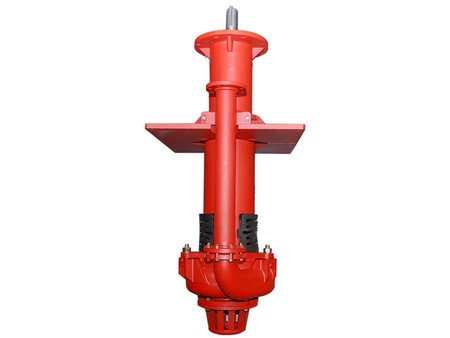

Vertical sump pump for pumping abrasive and corrosive slurries

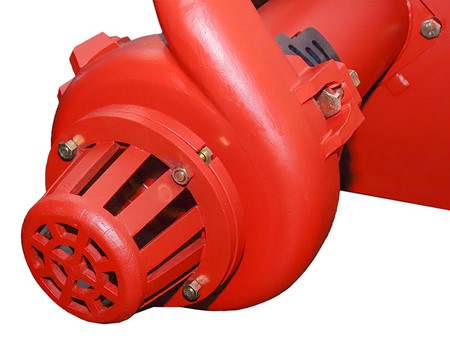

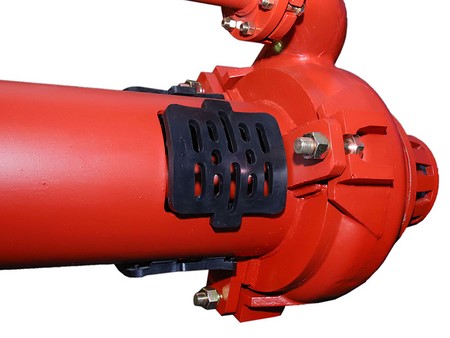

Vertical centrifugal slurry pump is immersed in the liquid and is used for conveying abrasive, coarse particle, and high-concentration slurry. It does not require any shaft seal or sealing water and can operate normally even under conditions of insufficient inlet pressure.
The components are available in two types: wear-resistant metal or rubber lining. The rubber lining is suitable for conveying highly corrosive slurry. Therefore, the submerged slurry pump has the advantages of long service life for vulnerable parts, large particle size for flow passage, convenient maintenance, low operating costs, and high reliability.

  • Capacity: 55-1920m³/h
  • Head: 24-95.5m
  • Speed: 740-1480r/min
  • Power: 15-710kW
Applications

HC-V series slurry pump is suitable for coal preparation, chemical processing, wastewater treatment, sand and gravel applications, and is particularly suitable for slurry transportation in flotation, concentration, flue gas desulfurization, and process feed circuits.

Specifications

SP40-P-HC

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang

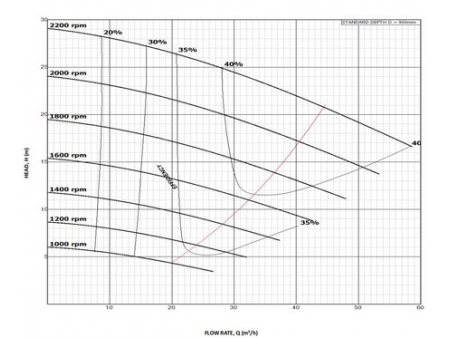

15 kW 7.2-39.6 m³/h 4.3-27.4 m 1000-2200 r/min 40% 188 mm 4-11 kW
Pump
  • Suction: 80mm
  • Discharge: 40mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 188mm
  • Material: metal
Frame: Type P (Max. power 15 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang
30 kW 19-102.6 m³/h 5-30.8 m 700-1500 r/min 50% 280 mm 2.2-22 kW
Pump
  • Suction: 120mm
  • Discharge: 65mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 280mm
  • Material: metal
Frame: Type Q (Max. power 30 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang

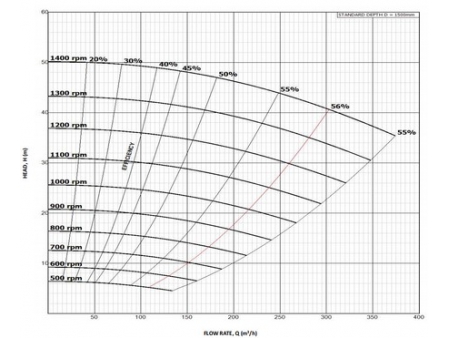

75 kW 41.5-259.2 m³/h 5.1-36 m 500-1200 r/min 56% 370 mm 3-45 kW
Pump
  • Suction: 175mm
  • Discharge: 100mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 370mm
  • Material: metal
Frame: Type R (Max. power 75 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang

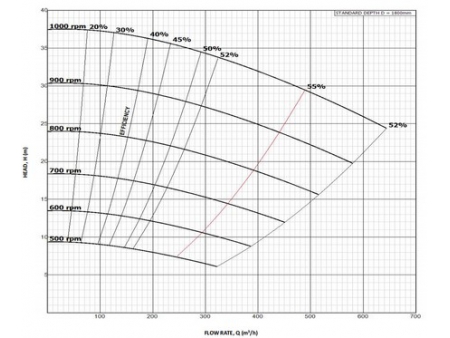

110 kW 115.2-576 m³/h 6.7-35.7 m 500-1000 r/min 52% 450 mm 11-90 kW
Pump
  • Suction: 240mm
  • Discharge: 150mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 450mm
  • Material: metal
Frame: Type S (Max. power 110 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang

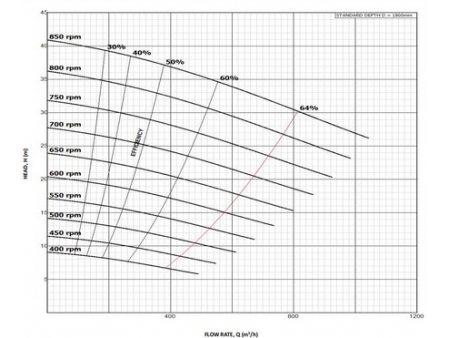

110 kW 180-734.4 m³/h 6-28.2 m 400-740 r/min 64% 520 mm 11-45 kW
Pump
  • Suction: 250mm
  • Discharge: 200mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 520mm
  • Material: metal
Frame: Type S (Max. power 110 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang
200 kW 261-1089 m³/h 7.5-33.5 m 400-750 r/min 60% 575 mm -
Pump
  • Suction: 270mm
  • Discharge: 250mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 575mm
  • Material: metal
Frame: Type TV (Max. power 200 kW)

Allowable Max. Power Capacity Head Speed Efficiency η Impeller Diameter Motor Power Rang
200 kW 288-1267 m³/h 6.5-33 m 350-700 r/min 50% 610 mm -

The HC-V series vertical centrifugal pump stands out in several aspects, making it an ideal choice for optimizing fluid handling efficiency.

Features
  • Improved energy efficiency
    Compared to traditional pumps, the HC-V series pump offers excellent energy efficiency. Its advanced design and optimized hydraulic performance ensure maximum output with minimal power consumption.
  • Enhanced reliability
    Reliability is crucial in industrial applications, and the HC-V series pump excels in this area. Its robust structure and precise engineering design minimize the risk of failures and ensure continuous operation.
  • Precise performance
    This pump exhibits outstanding performance characteristics, allowing for precise control of fluid flow, pressure, and volume. This enhances productivity and process stability.
