Request a Quote

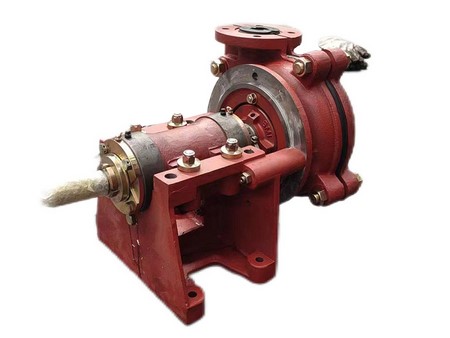

Horizontal pump for handling highly concentrated slurries

HCR Heavy duty rubber lined slurry pump features improved corrosion resistance, wear resistance, and a reasonable structure and possible operation, making it suitable for conveying highly abrasive and high-concentration slurry. It has a replaceable rubber liner, and the impeller is made of wear-resistant and corrosion-resistant natural rubber material. It is widely used in industries such as mining, coal washing, power plants, metallurgy, petrochemicals, and dredging.

In any industrial environment, efficiency is of utmost importance, and the lined slurry pump excels in this aspect. Its advanced hydraulic design optimizes flow patterns, reducing energy consumption while maintaining high pump efficiency. This not only lowers operating costs but also minimizes environmental impact, aligning with sustainable practices.

  • Capacity: 3.6-5400m³/h
  • Head: 7.5-57m
  • Speed: 200-3400r/min
  • Power: 2.2-1200kW

HCR horizontal heavy-duty rubber slurry pump is based on the HC slurry pump with added rubber lining, characterized by:

  • Capable of easily handling abrasive slurries;
  • Equipped with specially designed impellers and casings for efficient transportation of highly-concentrated slurries containing solid particles;
  • The unique lining material used in the pump minimizes wear, extends its lifespan, making it an economically efficient solution to meet your pumping needs.
Specifications

1.5x1B-HCR

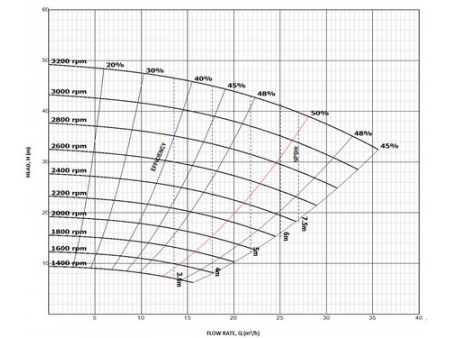

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
15 kW 3.6-23.4 m³/h 1-6.5m 1400-3400 r/min 35% 2-4 m 152 mm 2.2-15 kW
Pump
  • Suction: 38mm
  • Discharge: 25mm
Impeller
  • Type: open
  • Vanes: 3
  • Diameter: 152mm
  • Material: polymer
Frame: Type B (Max. power 15 kW)
Seal: gland seal

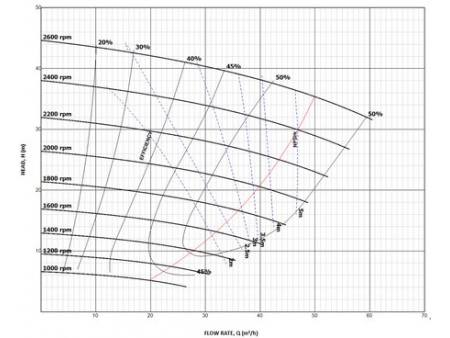

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
15 kW 5.76-42.48 m³/h 1.6-11.8 m 1000-2600 r/min 50% 2.5-5 m 178 mm 1.5-15 kW
Pump
  • Suction: 51mm
  • Discharge: 38mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 180mm
  • Material: polymer
Frame: Type B (Max. power 15 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
30 kW 18.7-63.3 m³/h 5.2-17.6 m 1300-2100 r/min 60% 2-4m 213mm 3-30 kW
Pump
  • Suction: 76mm
  • Discharge: 51mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 214mm
  • Material: polymer
Frame: Type C (Max. power 30 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

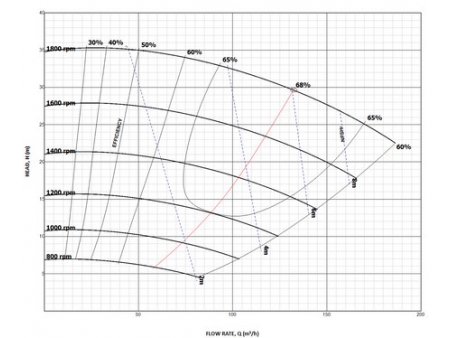

30 kW 25.2-129.6 m³/h 7-36 m 800-1800 r/min 59% 3-5m 245mm 2.2-30 kW
Pump
  • Suction: 102mm
  • Discharge: 76mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 245mm
  • Material: polymer
Frame: Type C/D (Max. power 30/60 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
60 kW 39.6-129.6 m³/h 11-36 m 1300-1800 r/min 59% 3-5m 245mm 7.5-37 kW
Pump
  • Suction: 102mm
  • Discharge: 76mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 245mm
  • Material: polymer
Frame: Type C/D (Max. power 30/60 kW)
Seal: gland seal

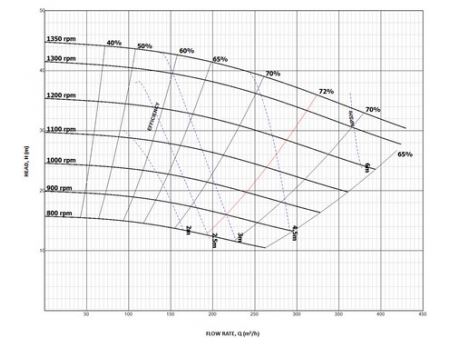

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
60 kW 72-324 m³/h 20-90 m 800-1350 r/min 65% 3-5m 365mm 7.5-37 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 365mm
  • Material: polymer
Frame: Type D/E (Max. power 60/120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 79.2-324 m³/h 22-90 m 1000-1350 r/min 65% 3-5m 365mm 18.5-75 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 365mm
  • Material: polymer
Frame: Type D/E (Max. power 60/120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 97,2-68.4 m³/h 27-19 m 400-1000 r/min 72% 2-9m 510mm 18.5-75 kW

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
300 kW 223-1267 m³/h 41-57.9 m 900-1050 r/min 65% 5-10 m 510 mm 75-280 kW
Pump
  • Suction: 203mm
  • Discharge: 152mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 510mm
  • Material: polymer
Frame: Type E (Max. power 120 kW)
Seal: gland seal

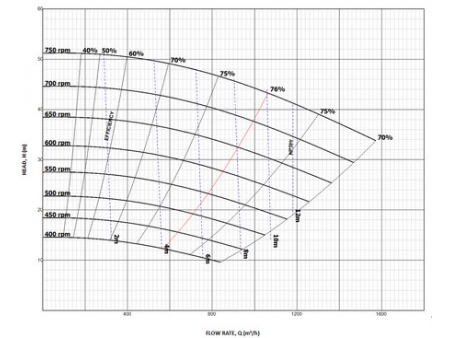

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 540-1188 m³/h 12-50 m 400-750 r/min 75% 4-12 m 686 mm -
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 686mm
  • Material: polymer
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

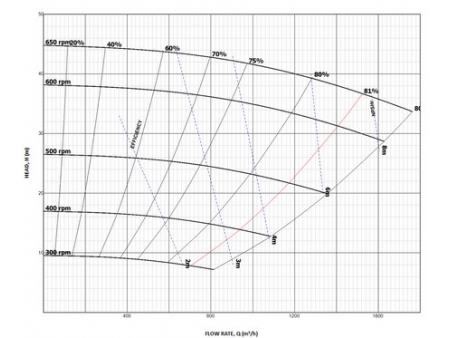

560 kW 720-1620 m³/h 7-45 m 300-650 r/min 80% 2.5-7. 5m 762 mm -
Pump
  • Suction: 305mm
  • Discharge: 254mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 762mm
  • Material: polymer
Frame: Type F (Max. power 260 kW)
Seal: gland seal

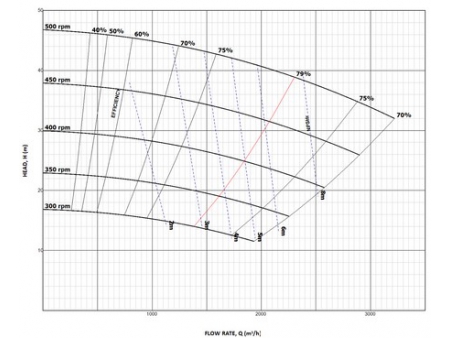

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 1152-2520 m³/h 13-44 m 300-500 r/min 79% 3-8 m 965 mm -
Pump
  • Suction: 356mm
  • Discharge: 205mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 965mm
  • Material: polymer
Frame: Type F/ST (Max. power 260/560 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 1368-3060 m³/h 11-63 m 250-550 r/min 79% 4-10 m 1067 mm -
Pump
  • Suction: 406mm
  • Discharge: 356mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 1067mm
  • Material: polymer
Frame: Type G/TU (Max. power 600/1200 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 2520-5400 m³/h 13-57 m 200-400 r/min 85% 5-10 m 1370 mm -
Pump
  • Suction: 508mm
  • Discharge: 457mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 1372mm
  • Material: polymer
Frame: Type G/TU (Max. power 600/1200 kW)
Seal: gland seal
Applications

HCR horizontal heavy-duty rubber slurry pump is the preferred choice for demanding applications due to its outstanding performance, durability, and ease of maintenance. It is also used for handling highly abrasive, high-density slurries. It is typically suitable for corrosive slurries. In some mining operations, larger HC series pumps will also be used to transport fine ore or tailings. Therefore, whether you are in mining, mineral processing, chemical processing, or any industry requiring reliable slurry pumping, the lined slurry pump is a trusted partner for you.

  • Mineral processing in mines (gold, copper, iron, molybdenum, etc.)
  • Tailings transport
  • Ash removal in power plants
  • Flue gas desulfurization in power plants
  • Coal washing in coal plants
FAQs

In highly-concentrated slurries, there may be a significant presence of solvents such as acids, petroleum, or sharp solid particles. Using a regular water pump in such conditions can easily lead to pump damage.

Slurry pumps are designed with wear-resistant materials and have easily replaceable components, making maintenance and repairs convenient. Therefore, slurry pumps are commonly used in these situations.
