Request a Quote
Horizontal slurry pump for dredging and slurry conveying

G-GH gravel pump has good cavitation performance and a relatively large suction capacity. It is commonly used for dredging by dredgers, dredging rivers, as well as transporting power plant ash and blast furnace slag in iron plants.

  • Capacity: 36-5400m³/h
  • Head: 7-80m
  • Speed: 200-1400r/min
  • Power: 4-1200kW
Applications

Generally used as sand dredging pump for dredgers, river dredging pump, sand extraction pump for sand dredgers, and blasting slag pump for mines and metal smelting.

  • Copper ore reselection plant
  • Placer gold processing plant
  • Copper processing plant
  • Manganese ore processing plant

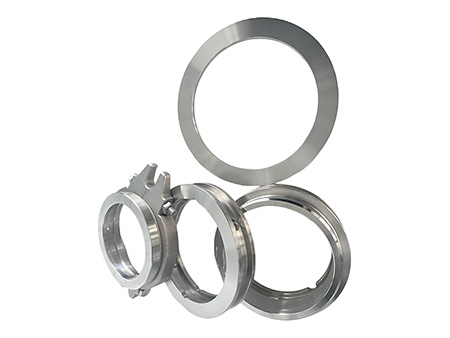

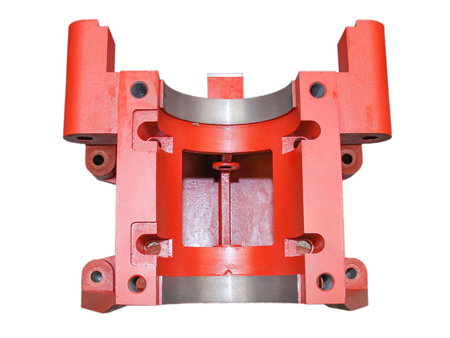

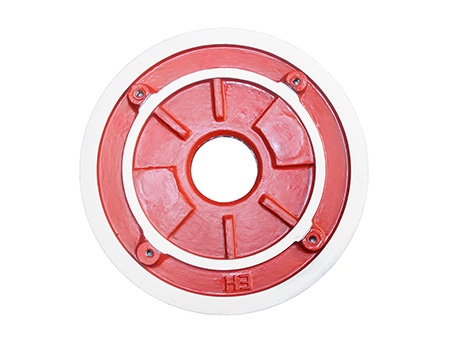

Pump Parts

Hongchang is a professional enterprise specializing in the production of slurry pumps and slurry pump parts. We have the complete production capability from modeling to finished products.

Specifications

6x4D-G-HC

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

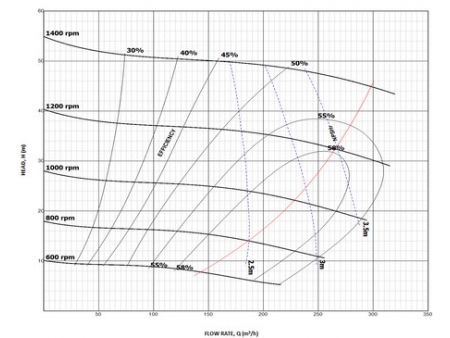

60 kW 36-187 m³/h 7-51 m 600-1400 r/min 58% 2.5-3.5 m 378 mm 4-55 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 378mm
  • Material: metal
Frame: Type D (Max. power 60 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 133-576 m³/h 10-48 m 800-1400 r/min 60% 3-4.5 m 378 mm 15-110 kW
Pump
  • Suction: 203mm
  • Discharge: 152mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 610mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

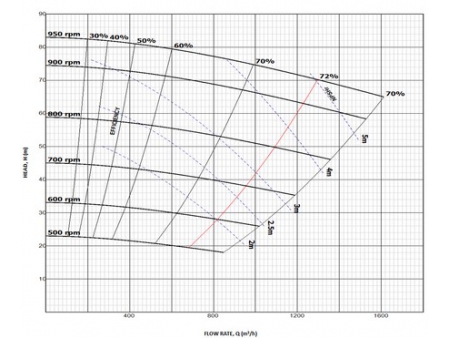

260 kW 216-930 m³/h 12-44 m 500-940 r/min 72% 2.5-5 m 711 mm 30-185 kW
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 216-930 m³/h 10.8-44.2 m 500-940 r/min 65% 3-7.5 m 533 mm 30-185 kW
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

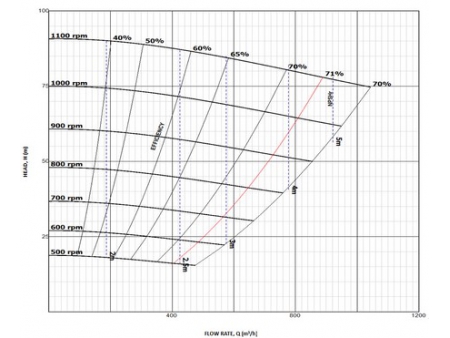

560 kW 324-1091 m³/h 19.2-56.5 m 500-800 r/min - - 686 mm -
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

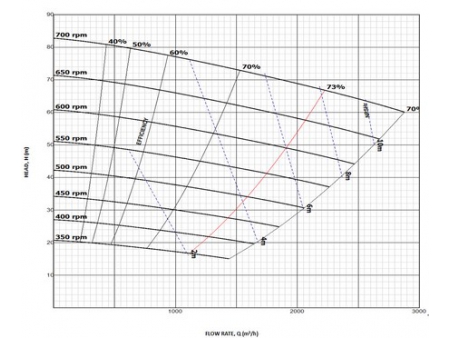

600 kW 288-2808 m³/h 16-80 m 350-700 r/min 73% 2-10 m 950 mm -
Pump
  • Suction: 305mm
  • Discharge: 254mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 915mm
  • Material: metal
Frame: Type G (Max. power 600 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

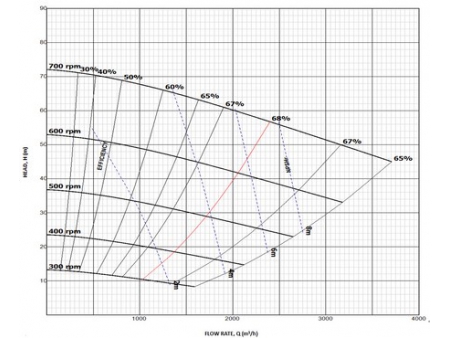

600 kW 576-3024 m³/h 8-70 m 300-700 r/min 68% 2-8 m 864 mm -
Pump
  • Suction: 356mm
  • Discharge: 305mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 864mm
  • Material: metal
Frame: Type G (Max. power 600 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 324-3600 m³/h 26-70 m 300-500 r/min 72% 3-6 m 1270 mm -

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang

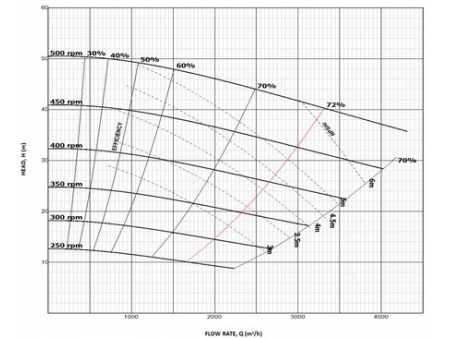

1200 kW 720-4320 m³/h 12-48 m 250-500 r/min 72% 3-6 m 1067 mm -
Pump
  • Suction: 457mm
  • Discharge: 406mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 1067mm
  • Material: metal
Frame: Type G/T (Max. power 600/1200 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 1080-5400 m³/h 18-65 m 200-400 r/min 68% 3-6 m 1270 mm -
Pump
  • Suction: 508mm
  • Discharge: 457mm
Impeller
  • Type: closed
  • Vanes: 3
  • Diameter: 1270mm
  • Material: metal
Frame: Type H (Max. power 1400 kW)
Seal: gland seal
Applications

Constructed with wear-resistant and corrosion-resistant materials, G(H)-HC series slurry pump features reduced operation costs and down time, and is suitable for use in slag delivery, dredging, coal washing, etc.

  • Metallurgy
    The slurry pump is an optimal option for slag delivery in metallurgy applications, because it features wide passages, good anti-cavitation performance, low running speed, enhanced shaft design together with rigid bearing.
  • Dredging
    The slurry pump is widely used in gravel and dredging applications due to the advantages including wide passages, anti-cavitation performance, compact size, and 360° fitting position of discharge pipe.
  • Coal Washing
    In the process of coal washing, the slurry pumps are widely used for delivering lump coal.
Features
  • Sturdy Structure
    The pump's robust structure ensures lasting durability, making it a perfect choice for harsh environments. Its corrosion-resistant materials ensure its effectiveness even under severe conditions.
  • High Efficiency
    Experience seamless workflow with our gravel pump's high pumping capacity. Its advanced design maximizes efficiency, saving your valuable time and resources.
  • Low Maintenance
    Say goodbye to frequent breakdowns and maintenance challenges. The design of our gravel pump is easy to maintain, reducing downtime and enhancing overall efficiency.
  • Versatility
    From gravel and sand to sludge and slurries, our pump can effortlessly handle various materials, providing a versatile solution for your operations.
  • Energy-Efficient
    Save costs using our energy-efficient gravel pump. It optimizes power consumption without compromising performance, allowing you to operate sustainably.
  • User-Friendly Operation
    With intuitive controls and a user-friendly interface, our gravel pump ensures worry-free operation, enabling your team to focus on the tasks at hand.
FAQs

A gravel pump is a type of pump that is specifically designed to transport sand, gravel, particles, or particle-laden liquids (slurry pump). This type of pump, an industry pump, is typically designed to handle granular materials such as sand, crushed stone, and slurry, making it suitable for specific industrial applications that involve the transportation of solid particles.

Our gravel pumps are commonly used for dredging by dredgers, dredging rivers, as well as transporting power plant ash and blast furnace slag in iron plants.
