Model: FPFPL-16Aa/24Aa/32Aa/40Aa/48Aa

• Production Capacity: 20-150 Thousands Diameter-Inch/Month (or depending on workshop area and equipment configuration or as per request)
• Pipe diameter applicable: DN400/DN600/DN800/DN1000/DN1200
• Pipe Thickness: 3-80MM
• Conveying Speed: 2-20M/Min
• Beveling Speed: ≤5Min / Two Bevels (DN200 SCH40)
• Automatic Welding Rate: ≥60%
• Prefabrication Ratio: 50%~80%
• Design Software: PDSOFT 3Dpiping
• Management Software: PDSOFT SPFMS

Applications
This fixed type pipe fabrication production line is used for pipe projects or piping prefabrication projects that are within 500KM from the center of the workshop.

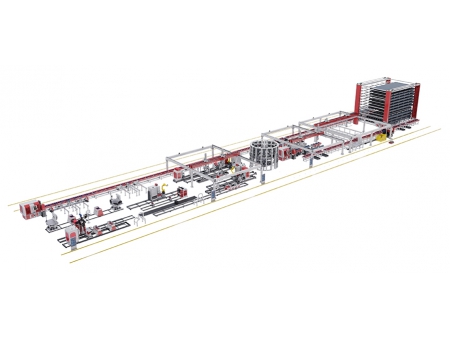

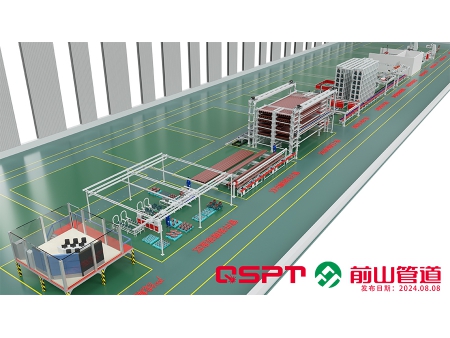

• The basic configuration of the pipe fabrication production line consists of one set of fixed-type high speed pipe cutting and beveling machine, one set of roller-bench-type pipe plasma cutting and beveling machine, one set of high speed pipe cutting band saw machine two sets of fixed-type pipe end beveling machine, many sets of piping prefabrication fast fitting-up machine, many sets of piping prefabrication automatic welding machine or piping automatic welding machine (cantilever type), a set of automatic conveying system and a set of steel structure pipe racks.
• The pipe fabrication production line offers excellent production efficiency - hoisting with overhead traveling crane, beveling with high speed cutting and beveling machine and welding with automatic welding machine.
• As this is a fixed type of pipe fabrication product line, the equipment cannot be easily moved.
• Utilized the fixed type workshop; Using PDSOFT Pipe Fabrication Detail Design Software for designing spool pieces; using PDSOFT Pipe Fabrication Process Management Software to elaborate management with high efficiency; using CNC cutting & beveling equipment for high quality mechanical bevel; using fitting-up machine for fast spool pieces fit-up; using various types automatic welding machines for high-efficiency high-quality MIG root welding with QSPT’s technology; using SAW for high efficiency cap welding; equipped with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.
