Flatbed Printer Vacuum Table Manufacturer

Flatbed Printer Vacuum Table

Request a Quote

View All: http://vacuumtable-en.com/1-1-printer-vacuum-table.html

Vacuum Workholding Solution

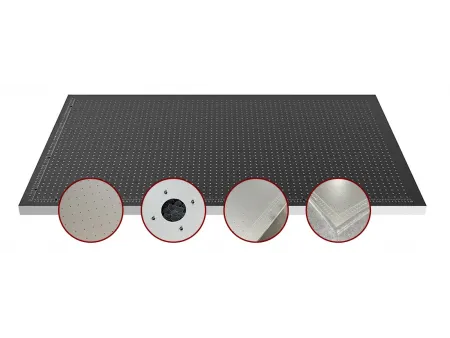

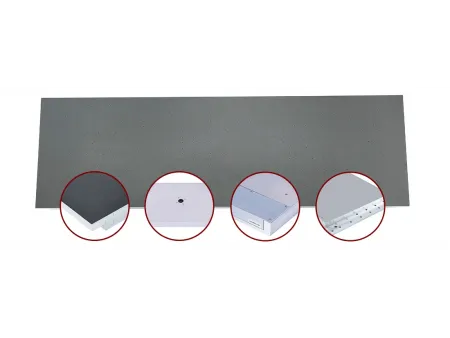

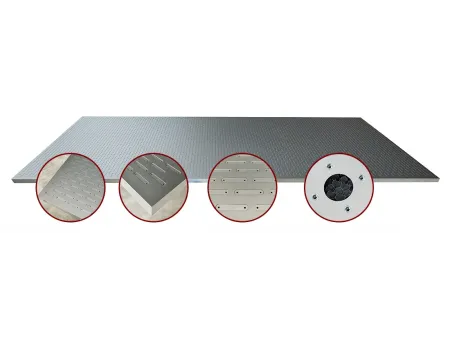

Vacuum hold-down system for ensuring stable material positioning in flatbed printing applications

Flatness precision: 0.10mm

Optimized performance: Engineered for powerful and even suction across the entire vacuum table without compromising performance, enhancing print stability and accuracy.

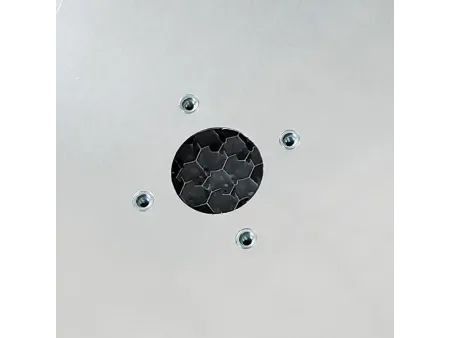

Lightweight yet high load capacity: Constructed with high-quality aluminum honeycomb core materials. Weighing approximately 25–35 kg/m², it supports up to 30 kg without deformation.

Scratch and wear resistant surface: Available in multiple surface treatments, including powder coating, anodizing, and hard anodizing. Hard anodized surfaces offer superior resistance with surface hardness up to HV350–550, ideal for long-term industrial use.

Fully customizable based on your specifications, including size, hole layout, and structural features.

Our flatbed printer vacuum table achieves optimal flatness, with precision reaching 0.10mm, thanks to advanced R&D and manufacturing processes. This ensures enhanced suction performance, stabilizing materials across various printing applications. We are proud to supply vacuum tables to prominent international brands like MIMAKI and domestic leaders such as Docan, Flora, HandTop, and KINGT.

Common Types of Printer Vacuum Tables

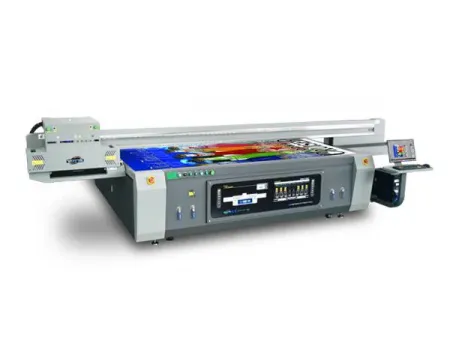

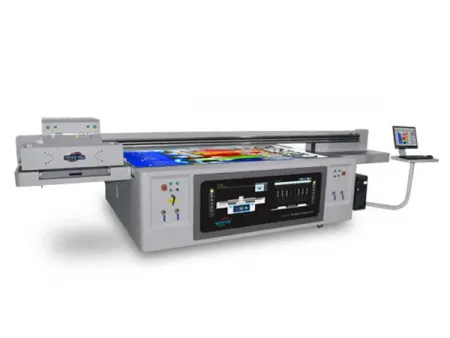

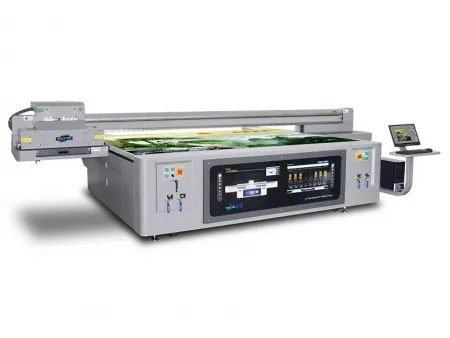

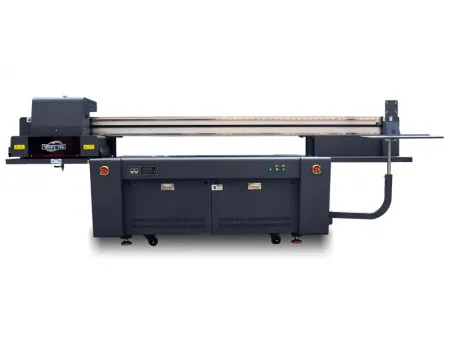

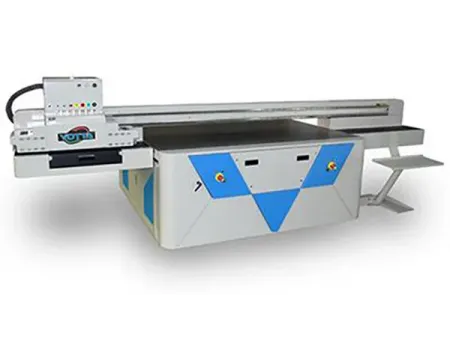

UV Flatbed Printer Vacuum Table

Textile printer Vacuum Table

Water-cooled Vacuum Table

Corrugated Paper Vacuum Table

Belt Printer Vacuum Table

How Our Vacuum Tables Solve Challenges in Flatbed Printing

Precise material positioning and flattening
Our vacuum tables securely hold both rigid and flexible materials such as wood, metal, glass, plastic, and paper, ensuring no movement or deformation during printing. The uniform distribution of vacuum suction helps maintain flat material surfaces, crucial for achieving high-quality prints.
Improved printing precision
With materials firmly fixed, the printhead of UV flatbed printers can position more accurately, precisely applying ink to the designated areas. This results in higher print precision and detail, minimizing errors during the process.
Printhead protection
By stabilizing the material, the vacuum table reduces friction between the material and printhead, extending the life of the printhead. This prevents damage or clogging caused by material movement during printing.
Adaptability to complex shapes
Our vacuum tables can adapt to materials with complex shapes or edges, ensuring accuracy and quality in prints. This capability enables UV flatbed printers to handle more diverse tasks, including 3D objects or irregularly shaped items.
Enhanced performance efficiency
Stable suction and material fixation reduce interruptions and errors during printing, significantly boosting production efficiency. Operators can focus on setting and monitoring the print tasks without worrying about material movement or deformation.

Customization Options

We offer a wide range of customization options for our vacuum tables, including:

Vacuum table dimensions and specifications

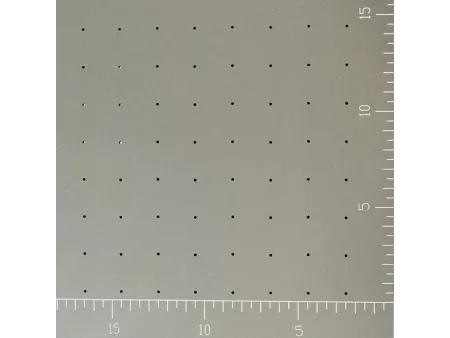

Vacuum hole diameter and spacing
Suction area and suction hole diameter
Number of suction holes
Connection methods
Customizable zones for independent suction or non-suction areas

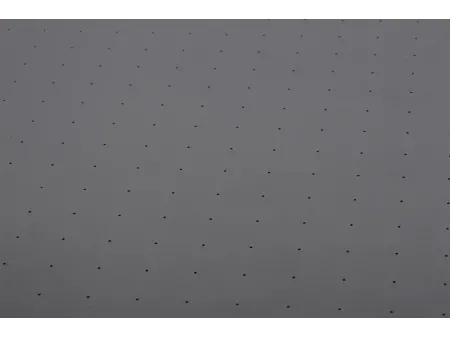

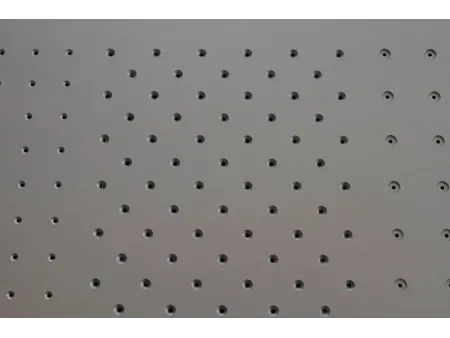

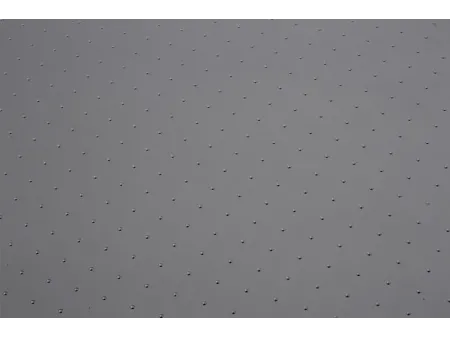

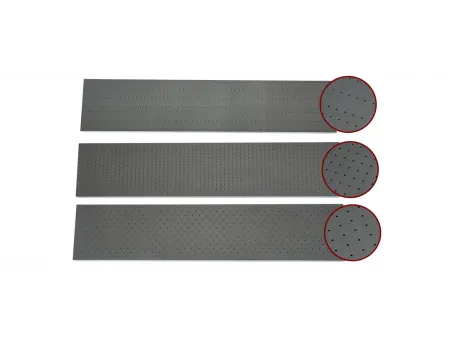

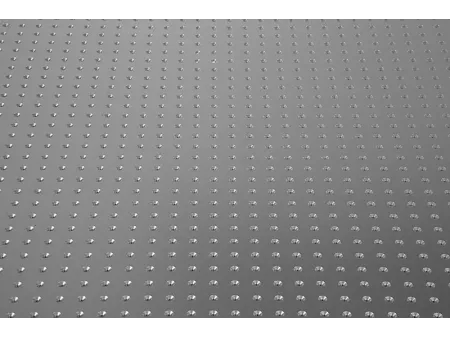

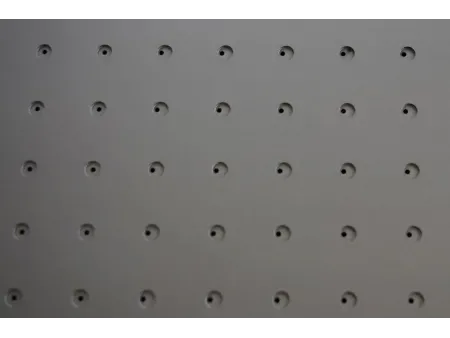

Types of Vacuum Hole Grid

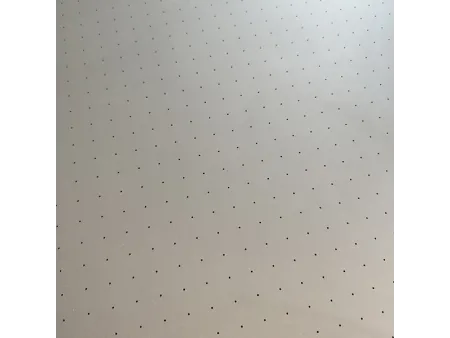

Straight holes

Large conical holes

Small conical holes

Large & small holes (eccentric)

Small conical holes (staggered)

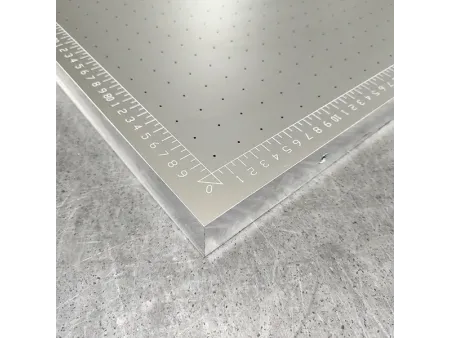

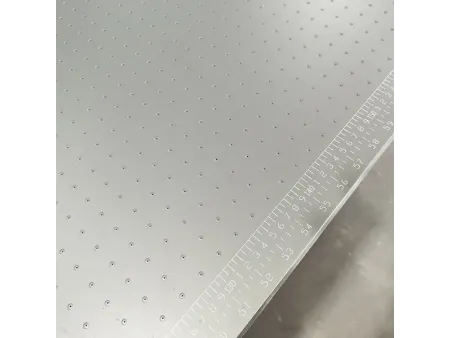

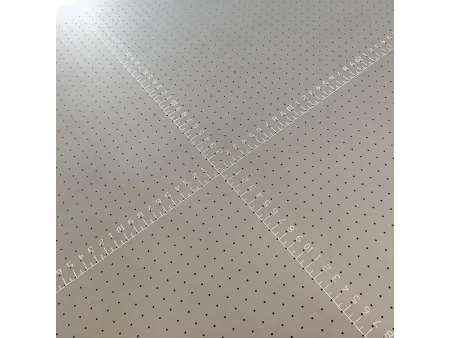

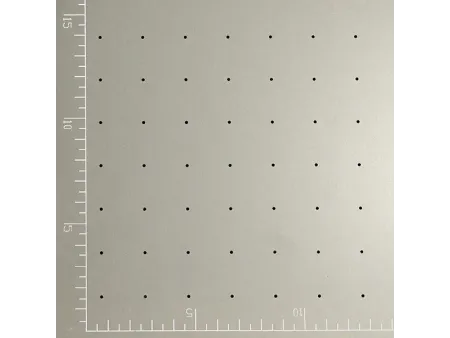

Logo & Scale Marking

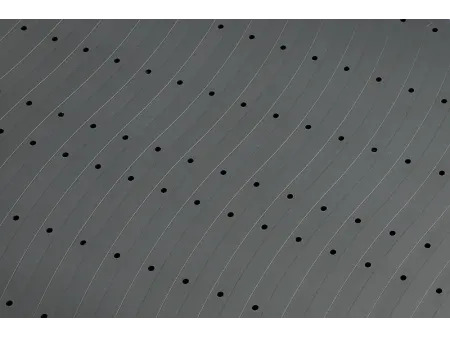

Suction Slot

Suction Slot

Patterned slot

Open slot

Grid slo

Straight slot

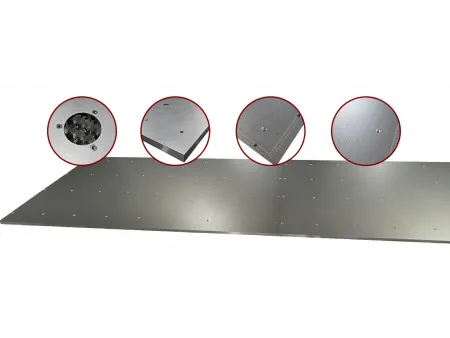

Surface Treatment (hard anodized, PVDF coated, bare aluminum surface)

Rail Machining

Custom Vacuum Table Shape

Positioning Slot

Our Value-Added Services

Customization services

Our vacuum tables can be fully customized to meet specific customer requirements. Whether it’s the surface size and dimensions, vacuum hole diameter and spacing, suction area, suction hole diameter, number of suction holes, connection methods, or custom zones for independent suction or non-suction areas, we offer tailored solutions.

Technical support and consultation

We are backed by a professional technical team that provides comprehensive support and consultation services. Whether customers face challenges during operation or need technical assistance, our team is ready to respond promptly with effective solutions.

Training and guidance

For first-time users of vacuum tables, we offer training and guidance services, including operation training, maintenance and upkeep training, and troubleshooting. Through these training programs, customers gain a deeper understanding of the vacuum table’s performance, learn the correct operating methods, and acquire maintenance skills, ultimately improving both production efficiency and product quality.
