Rotary Die Cutting Machine (Double Stations) (Model FQ-320Y-2 Rotary Die Cutter with Dual Stations for Label Production)

Rotary Die Cutting Machine (Double Stations) (Model FQ-320Y-2 Rotary Die Cutter with Dual Stations for Label Production)
Rotary Die Cutting Machine (Double Stations) (Model FQ-320Y-2 Rotary Die Cutter with Dual Stations for Label Production)
Rotary Die Cutting Machine (Double Stations) (Model FQ-320Y-2 Rotary Die Cutter with Dual Stations for Label Production)
Request a Quote
Website:

FQ-320Y-2 rotary die cutting machine features dual rotary die cutting stations, making it highly efficient for blank label processing. It is configured with automatic meter counting, automatic web guiding, length presetting, and automatic stop. With advanced automation, this label die cutting machine offers stable operation and high-speed label production, ensures the consistent adhesive label quality.

Technical Highlights
Max. Unwinding Diameter 700mm Die Cutting Speed 100m/min
Slitting Speed 120m/min Max. Roll Width 25-320mm
Features
  • This rotary die cutting machine is equipped with variable frequency drive for precise speed control.
  • Featuring an air shaft system with automatic air expansion to firmly hold the core of the roll during both the unwinding and rewinding processes.
  • A foot pedal is adopted to control the start, jog, and stop manually.
  • Equipped with a web guide system that adopts an automatic photoelectric sensor to ensure accurate alignment of materials.
  • This label die cutting machine is configured with an automatic meter counter, a label quantity counter, and length presetting mechanism. The quantity counter can be decelerated in advance.
  • Built with automatic tension modes for both rewinding and unwinding operations.
Applications

FQ-320Y-2 rotary die cutting machine features dual rotary die cutting stations, and it is ideal for the precise die cutting and slitting of blank label rolls, offering stable operation and high consistency in adhesive label production.

Technical Specifications
Max. Unwinding Diameter 700mm
Max. Rewinding Diameter 700mm
Max. Turret Rewind Diameter 200mm
Max. Slitting Width 320mm
Min. Slitting Width 25mm
Main Motor Power 2.2kW
Total Power 3.5kW
Die Cutting Speed 100m/min
Slitting Speed 120m/min
Rewind Air Shaft Diameter (can be changed) Optional: 25-78mm
Dimension (L*W*H) 2250*1100*1650mm
Weight 1200kg
Optional Configurations

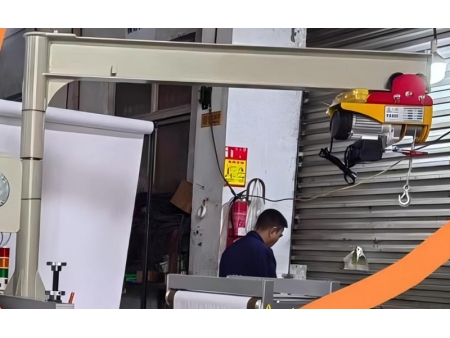

  • Electric lifter for hoisting magnetic cylinder
  • Air expanding shafts in different diameters.
  • Seamless connection with folding machine
