Vibrating Feeder

Request a Quote

View All: http://nonwovenlines.com/2-2-2-vibrating-feeder.html

Application
Vibrating feeder not only can be used for continuous and uniform feeding before material crushing, but also can be used for screening. Vibrating feeder has wide application in mineral processing, metallurgy, chemical, building materials and other industries.

Applicable materials
Pebble, granite, basalt, ironstone, limestone, quartzite, diabase, iron ore, gold ore, copper ore and etc.

More Details

Parameters

Model	Max feed size (mm)	Handling capacity (t/h)	Motor power (kw)	Tilt angle (°)	Tank size (mm)	Overall dimension (L×W×H) (mm)
GZD-650×2300	300	80-100	1.1×2	10-20	650×2300	2300×1360×780
GZD-750×2500	350	100-130	1.5×2	10-20	750×2500	2500×1460×780
GZD-850×3000	400	120-150	3×2	10-20	850×3000	3110×1800×1600
GZD-1000×3600	500	150-200	3.7×2	10-20	1000×3600	3850×1950×1630
GZD-1100×3600	580	240-300	3.7×2	10-20	1100×3600	3600×2050×1660
GZD-1300×3600	650	450-600	7.5×2	10-20	1300×3600	3900×2350×1750
GZD-1500×3600	1050	450-1000	10×2	10-20	1500×3600	3900×2000×1750
GZD-2000×3600	1200	550-1000	22×2	10-20	2000×3600	3600×2000×1750
GZD-2500×5000	1500	650-1500	11	10-20	2500×5000	5000×2500×1800
ZSW-380×95	500	100-180	11	0-10	3800×960	3800×1640×1320
ZSW-490×110	630	150-400	15	0-10	4900×1100	4980×1830×1320
ZSW-490×130	750	400-700	22	0-10	4900×1300	4980×2580×2083
ZSW-600×130	750	400-700	22	0-10	6000×1300	6082×2580×2083
ZSW-600×150	800	500-900	30	0-10	6000×1500	6086×2662×1912
ZSW-600×180	800	700-1500	37	0-10	6000×1800	6310×3262×2230

Features

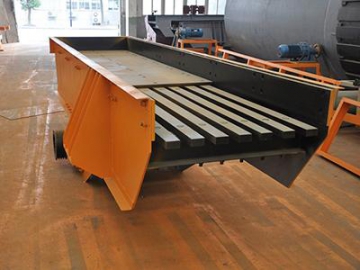

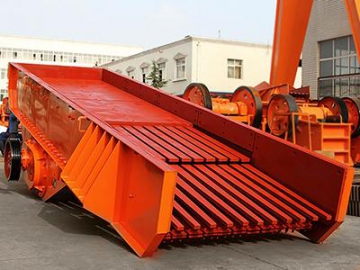

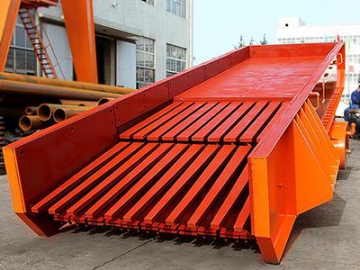

Grate bar design: prevent material clogging, primary material screening, and increase production.
Spring: buffer the vibration of machine, avoid damage and prolong service life.
High quality vibrating motor: low noise and low power consumption.
