Stage Lighting LED Cyclorama Light Code SS819XS Stage Lighting
Request a Quote
Characteristics
- Master slave/interconnected multi - machine control
- Support DMX512 control
- Multiple DMX control modes
- Over-temperature protection
- Frequency flashing function
- Nonlinear dimming speed setting
- Multiple color temperature selection Settings
- Password protected keyboard
Technical Specifications
- Optical System
- Light source: 48*red, 32*green, 24*blue, 16*deep blue, 16*cyan, 40*lime, 24*amber
- Color temperature: 2700K-8000K
- Color rendering index: ≥90Ra
- CQS:＞90
- Optical angle: 50°x60°
- Electrical Connections
- Input voltage: 100-240VAC,50/60Hz
- Rated power: 340W
- Drive current: 700mA
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Forced convection
- RTCP: DMX512, RDM
- Functional effect: On board control, 0-25Hz strobe, custom mode
- Channel mode: HSIC(7CHS), SSP(11CHS), TOUR(14CHS), TR16(22CHS), PIXEL.1(9CHS) PIXEL.2(17CHS)
- Appearance
- Size: 622x310x327mm
- Weight: 15kg
- Shell: Extruded aluminum
- Color: Black
- Working Environment
- Ambient temperaturet: 0℃~45℃
- IP Rating: IP20
- Approvals
- Certification
- CE, MET

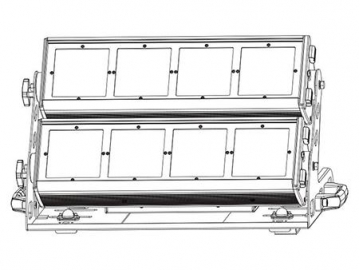

Dimensions
Illumination Contours

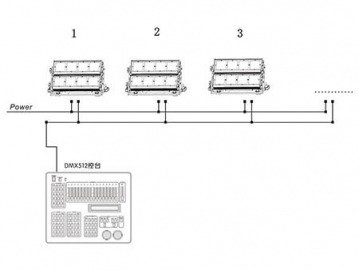

Installations
Optional Accessories
