Stage Lighting LED Bar Light Code SS359XCET Stage Lighting
Request a Quote
Characteristics
- 16Bit gray scale
- Multiple DMX control modes
- Support DMX512 control
- Master-slave control
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 12x10W (RGBW)
- Optical angle: 10° (16°optional)
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 150W
- Drive current: 950mA
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512
- Display: On board control, custom mode, 0-25Hz strobe
- Channel mode: TOUR/11CHS, TR16/16CHS, ARC2.D/5CHS, ARC2.S/6CHS, HV6/3CHS, ARC1.D/4CHS, ARC2/4CHS, HALO/12CHS, PIXEL.1/39CHS, PIXEL.2/51CHS, ARC1/3CHS
- Appearance
- Size: 1000x200x249mm
- Weight: 10.5kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃~45℃
- IP Rating: Dry/Damp/Wet Location/IP66 (with LED dispaly cover installed)
- Approvals
- Certification
- CE, MET

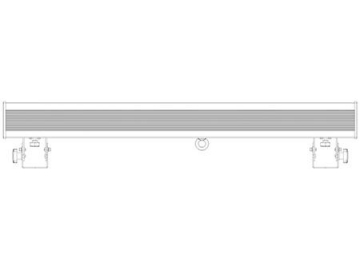

Dimensions
Illumination Contours

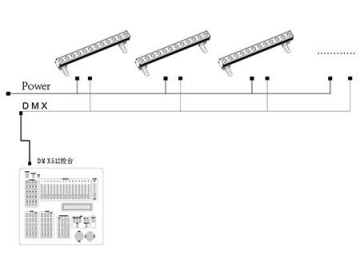

Installations
Optional Accessories
