Stage Lighting LED Cyclorama Light Code SS809XCA Theater Stage Lighting

Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Stage Lighting LED Cyclorama Light  Code SS809XCA Theater Stage Lighting
Request a Quote
Characteristics
  • Master slave/interconnected multi - machine control
  • Support DMX512 control
  • Multiple DMX control modes
  • Over-temperature protection
  • Frequency flashing function
  • Nonlinear dimming speed setting
Technical Specifications
  • Optical System
      Light source: 32*red, 32*green, 32*blue, 16*white, 16*amber
      Color temperature: 3200K-10000K
      Color rendering index: ≥90Ra
      CQS:>90
      Optical angle: 45°*60°
  • Electrical Connections
      Input voltage: 100-240VAC, 50/60Hz
      Rated power: 310W
      Drive current: 700mA
      Power line: Power input and output, signal input and output
  • Control System
      Dimmer: 0-100%16Bit
      Cooling system: Forced convection
      RTCP: DMX512, RDM
      Functional effect: On board control, 0-25Hz strobe, custom mode
      Channel mode: HSIC(7CHS), ARC.1(3CHS), AR1.D(4CHS), ARC2(4CHS), AR3(5CHS), AR3D(6CHS), AR3.S(7CHS), TOUR(11CHS), TR16(17CHS), PIXEL.1(6CHS)PIXEL.3(10CHS), PIXEL.16(22CHS)
  • Appearance
      Size: 622x310x327mm
      Weight: 15kg
      Shell: Extruded aluminum
      Color: Black
  • Working Environment
      Ambient temperaturet: 0℃~45℃
      IP Rating: IP20
  • Approvals
      Certification
      CE, MET

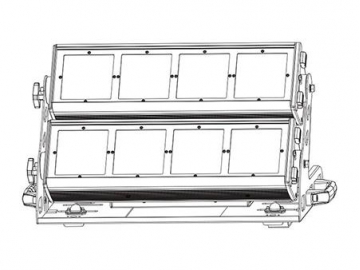

Dimensions
Illumination Contours

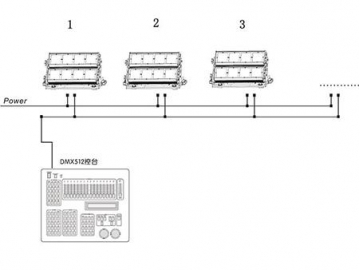

Installations
Optional Accessories
