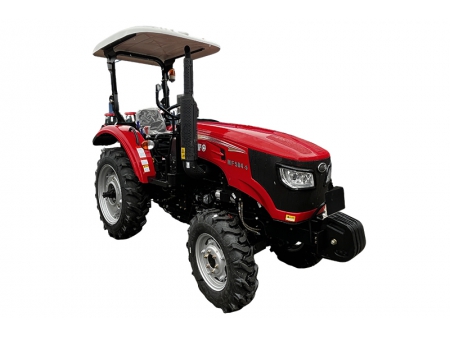

Narrow Tractor / Orchard Tractor, 50-75HP
Request a Quote
YTO-NMF5045F/ NMF7546F
Features
- Features compact design with a minimum overall width of ≤1.3m, making it the ideal choice for navigating coffee plantations, orchards, and other narrow, confined spaces.
- Standard 8F/8R shuttle shift configuration, with an optional 16F/8R creeper gear configuration for optimal operation across diverse tasks.
- Steplessly adjustable rear wheel track to suit various agronomic requirements.
- Equipped with wet disc brakes for smooth and reliable braking.
- Hydrostatic steering provides light and flexible handling.
- An optional air brake system is available to safely meet heavy trailer towing operations.

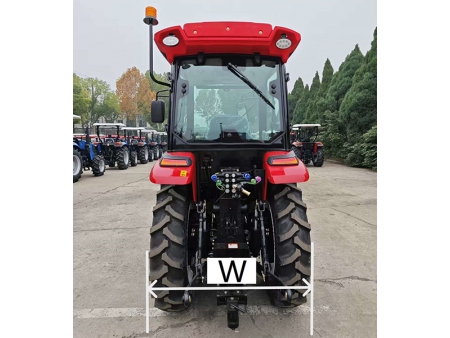

- Width: 1300mm
- Wide field of view
- Integrated dry-type air filter
Specifications
| Model | |||
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged diesel engine | |
| Rated engine HP (kW) | 36.4(50) | 55.2(75) | |
| Engine speed (rpm) | 2300 | 2200 | |
| Clutch | Single/double action | ||
| Gears | 8F/8R (option: 16F/8R) | ||
| Speed range (km/h) | 2.17-36.6 | 2.25-29.37 | |
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540 / 540E (optional 540 / 1000) | ||
| Lift capacity (pivot point) (KN) | ≥17 | ≥19 | |
| Hydraulic outputs (set) | 1 or 2 | ||
| Dimensions (L*W*H) (mm) | ROPS | 3880*1300*2450 | 3980*1500*2450 |
| Cab | 3880*1300*2560 | 3980*1500*2570 | |
| Wheelbase (mm) | 1934 | 2030 | |
| Ground clearance (mm) | 320 | 350 | |
| Min. turning radius (m) | 4.8±0.3 | ||
| Track width (F/R) (mm) | 1000 / 1000-1200 | ||
| Tyre (F/R) | 7.50-16/11.2-28 (option: 8.3-20/12.4-28) | 9.5-16/14.9-24 (option: 8.3-20/12.4-28) | |
| Total mass (ROPS/Cab) (kg) | 2510/2660 | 2710/2860 | |
