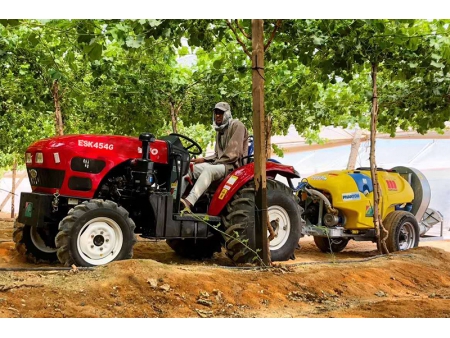

Narrow Tractor / Orchard Tractor, 45-70HP
Request a Quote
YTO-ESK4543G/ ESK5043G/ ESK5543G/ ESK6043G/ ESK6543G/ ESK7043G
Features
- This tractor has a compact design with a steering wheel height of 1180 mm, making it ideal for low-canopy orchards and tight under-forest operations.
- Equipped with YTO’s specialized diesel engines, offering strong power and low fuel consumption.
- The orchard tractor features a large steering angle and a small turning radius for nimble maneuvering.
- Steplessly adjustable rear wheel track, which is adaptable to various agronomic requirements.
- Features hydraulic steering, with a light and flexible design that is easy to operate.
- Pesticide spraying

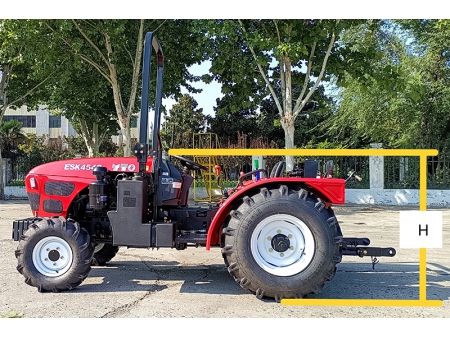

- Height: 1180mm
- Width: 1262mm
- Rear suspension
Specifications
| Model | |||||||
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged diesel engine | |||||
| Rated engine HP (kW) | 33.1(45) | 36.8(50) | 40.5(55) | 44.1(60) | 47.8(65) | 51.5(70) | |
| Engine speed (rpm) | 2400 | 2300 | |||||
| Clutch | Dry, single action (option: double action) | Dry, double action | |||||
| Gears | 8F/2R | ||||||
| Speed range (km/h) | 2.44-33.48 | 2.21-29.86 | |||||
| Brake | Dry, shoe | ||||||
| Rear PTO (rpm) | 540/720 | ||||||
| Lift capacity (pivot point) (KN) | ≥11.7 | ||||||
| Hydraulic outputs (set) | 1 or 2 | ||||||
| Dimensions (L*W*H) (mm) | 3280×1262×1180 (steering wheel) | ||||||
| Wheelbase (mm) | 1830 | ||||||
| Ground clearance (mm) | 255 | ||||||
| Track width (F/R) (mm) | 1000 /1100-1200 | ||||||
| Min. turning radius (m) | 4.0±0.3 | ||||||
| Tyre (F/R) | 6.0-12 / 13.2-16 (option: 6.00-14 /13.6-16) | ||||||
| Total mass (ROPS) (kg) | 1670 | 1680 | 1745 | 1760 | |||
