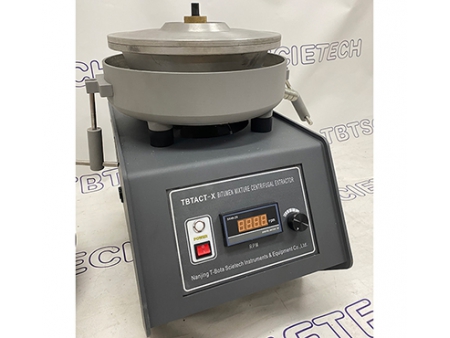

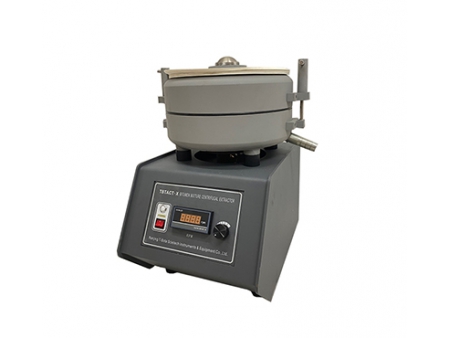

TBTACT-X BITUMEN MIXTURE CENTRIFUGAL EXTRACTOR
Introduction
TBTACT-X Bitumen mixture centrifugal extractor is designed and made as per JTGE20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. This bitumen extractor is used to determine the percentage of bitumen in bituminous mixtures.
Feature
- Stable operation with less vibration & noise;

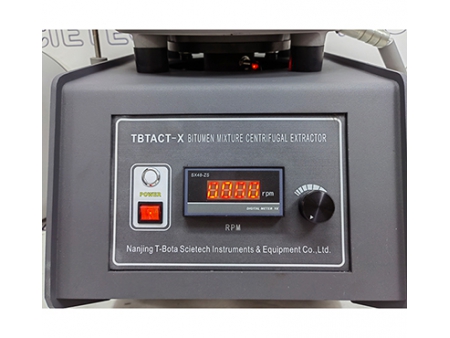

- Equip with speed control system, from minimum to maximum speed, easy to operate;

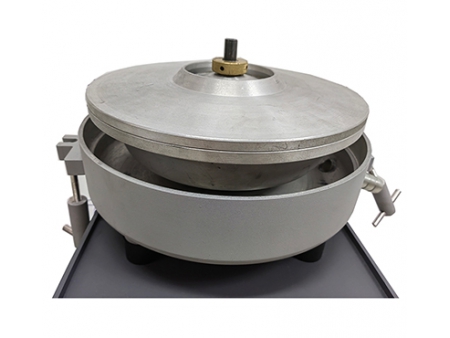

- Standard 3000g bowl capacity and 1500g as optional.
Technical Parameters
| Model | TBTACT-X |
| Power supply | 220VAC 50HZ/60HZ |
| Motor power | 750W |
| Rotating speed | 3600rpm max. |
| Max. capacity | 3000g (1500g optional) |
| Overall dimension | Ø350mm x 526mm (H) |
| Weight | Around 70KG |
| Filter paper | 20pcs in standard configure |

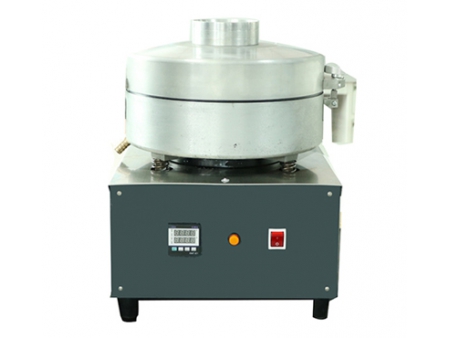

TBT-0722 Binder Extractor
TBT-0722 centrifugal extractor is designed to determine bitumen percentage in asphalt paving mixtures by using specified reagents.
Technical Parameters
| Rated rotation speed | 3000r/min |
| Power supply | AC (220±10%)V, 50Hz |
| Volume | 3000g |
| Timer | 40, 60, 80, 99 (s) |
| Maximum power consumption | 550W |
| Ambient temperature | -10℃~35℃ |
| Relative humidity | ≤85% |
| Net weight | 45kg |
| Dimension | Main unit: Ф365mm×400mm Control box: 200mm×120mm×100mm |
Standard accessories
| No. | Name | Unit | Qty |
| 1 | TBT-0722 Binder Extractor | Set | 1 |
| 2 | Control box | Set | 1 |
| 3 | Filter paper | Piece | 30 |
| 4 | Fasten-on-wall metal parts | Set | 1 |
| 5 | Silicone oil | Bottle | 1 |
| 6 | Operation manual | Piece | 1 |
| 7 | Quality certificate | Piece | 1 |
| 8 | Repair guarantee | Piece | 1 |
Reagent and auxiliary equipment:
| No. | Name | Specification | Quantity |
| 1 | Trichloro Ethylene | Industry grade | 5L |
| 2 | Balance | Accuracy 0.001g | 1 set |
| 3 | Balance | Accuracy 0.01g | 1 set |

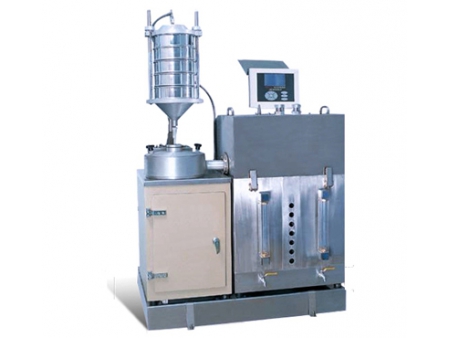

TBT-0722A Binder Extractor
TBT-0722A centrifugal extractor is used to perform reliable analysis on bituminous mixtures for quantitative determination of binder or bitumen contained in pavement samples and hot mixed mixtures.
Technical Parameters
| 1. Capacity | 1000g~1500g |
| 2. Extracting precision | ≤0.1% |
| 3. Extracting time | (20~40)minutes per time |
| 4. Centrifuging speed | 5500RPM, 11000RPM |
| 5. Working environment | 5℃~40℃, RH﹤80% |
| 6. Power supply | AC (380V±10%), 50 Hz |
| 7. Maximum power consumption | About 5kW |
| 8. Pressure of cooling water | ≮2bar |
| 9. Temperature of cooling water | ≯12℃ |
| 10. Net weight | About 300kg |
| 11. Dimension | 1400×800×1600mm (LxWxH) |
