Screw Press Extractor
Request a Quote
Fruit & Vegetable Processing Equipment

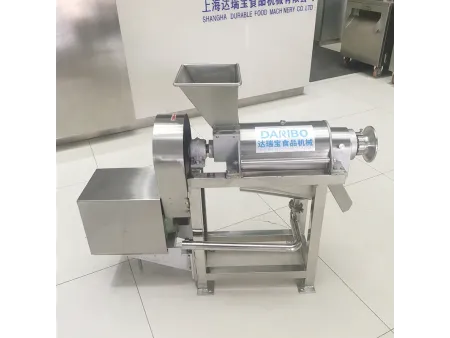

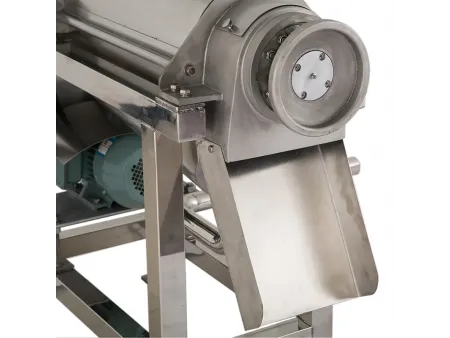

Industrial juicing machine for extracting juice from fruits and vegetables
- Processing Capacity 200-2500kg/h
- Screw shaft diameter 87.5-250mm
The screw press extractor efficiently extracts juice by applying a gradually narrowing spiral compression mechanism. As the material is pushed forward, the reducing cavity size exerts pressure, squeezing juice effectively from fruits and vegetables.
Processing Capabilities
This juicing machine is suitable for extracting juice from tomatoes, pineapples, apples, oranges, ginger, coconut meat, and other fruits and vegetables.
Applications
Ideal for fruit and vegetable processing plants, juice factories, chain restaurants, and juice shops.
Industrial Screw Press Extractor, DRB-0.5T
- Model: DRB-0.5T
- Voltage: 380V, 50Hz
- Power: 2.2kW
- Processing capacity: 200-500kg/h
- Screw shaft diameter: 87.5mm
- Filter hole diameter: 0.6mm
- Spiral shaft speed: 400rpm
- Dimensions (L×W×H): 1100×450×950mm
- Weight: 100kg
Industrial Screw Press Extractor, DRB-1.5T
- Model: DRB-1.5T
- Voltage: 380V, 50Hz
- Power: 4kW
- Processing capacity: 800-1500kg/h
- Screw shaft diameter: 175mm
- Filter hole diameter: 0.6mm
- Screw shaft speed: 400rpm
- Dimensions (L×W×H): 1780×720×1550mm
Industrial Screw Press Extractor, DRB-2.5T
- Model: DRB-2.5T
- Voltage: 380V, 50Hz
- Power: 11kW
- Processing capacity: 1800-2500kg/h
- Screw shaft diameter: 250mm
- Filter hole diameter: 0.6mm
- Screw shaft speed: 400rpm
- Dimensions (L×W×H): 1500×750×1650mm
