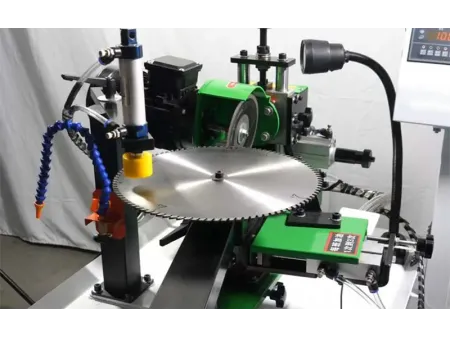

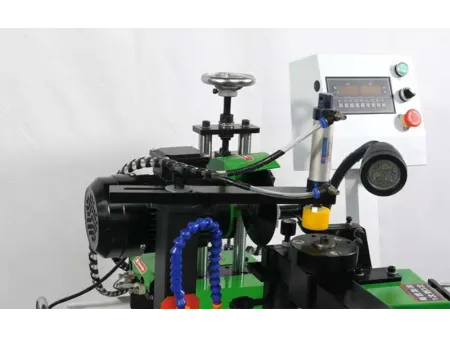

Circular Saw Blade Grinding Machine
Request a Quote
//Woodworking Machinery
Circular saw blade sharpener for sharpening circular saws used in woodworking machines
Woodworking Machinery
- Tooth pitch5–45 mm
- Grinding wheel speed2800 rpm
- Machine dimensions (L×W×H)800×800×1100mm
- Machine weight110 kg
Circular blade grinding machines are used for resharpening circular saw blades, restoring sharpness and maintaining precise tooth profiles. Regular use extends blade service life, ensures consistent cutting performance, and reduces operational costs by minimizing frequent blade replacements. These machines are essential for maintaining productivity and quality in woodworking operations that depend on circular saw systems.
Specifications
- Saw blade diameter range 100–800 mm
- Tooth pitch 5–45 mm
- Tooth feeding speed 0–55 teeth/min
- Grinding wheel speed 2800 rpm
- Alloy grinding wheel (L×W×Thickness) 150×32×10 mm
- Grinding wheel motor power 550 W
- Air pressure requirement 0.6 MPa
- Voltage 220V, 50 Hz
- Machine dimensions (L×W×H) 800×800×1100mm
- Machine weight 110 kg
- Supported tooth profiles Flat teeth, alternating left and right teeth, 3-left-1-right, 3-right-1-left configurations
