Meat Cutting and Slicing Machine
This product has been discontinued and removed from our shelves.
Hiwell Machinery Meat Flattener falls into two types YYJ400-II and YYJ600-II.

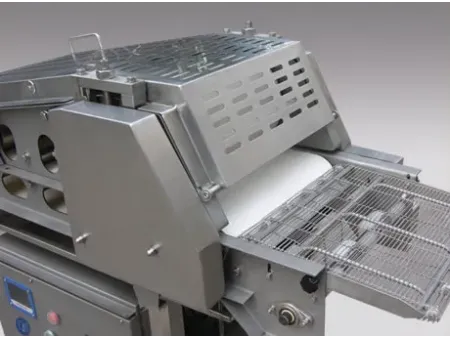

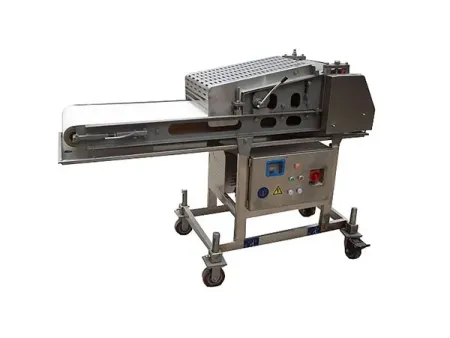

YYJ400-II Meat Flattener
YYJ400-II Meat Flattener is fitted with 4 pressure rollers to flatten all kinds of fresh or frozen meat materials to desirable thickness. Our stainless steel flattening equipment improves your food production by equal cooking time and reduced frying time. This meat product processing machine is applicable for production of beef steak, meat steak and fish steak in thickness less than 40mm.
- Ready-to-Install design meets your exigent needs for chilling on installation, adjustment and cleaning.
- Water spraying system is available to prevent products from sticking on conveyor belt.
- Our Meat Flattener is endowed with dependable protection system and Siemens electronic components for durable performance.
- Continuous production is realizable by incorporating with our Cuber-perforator.
- We adopt stainless steel to fabricate this multi-functional food flattening equipment with ingenious design.
| Conveying Speed | 3-15m/min (Variable Frequency Speed Control) |
| Belt Width | 300/400/600mm |
| Flattening Thickness | 3-30mm |
| Power | 1.5kW |
| Overall Dimension | 2135×715×1320mm |
YYJ600-II Meat Flattener
YYJ600-II Meat Flattener is also equipped with 4 pressure rollers to flatten fresh or frozen meat materials. Extended surface area is responsible for equal cooking time and minimized frying time.
This meat processing equipment is applicable for processing of all kinds of poultry, pork, beef, potato, cheese and fish in thickness less than 40mm. Based on exceptional connectivity to plant automation, our food processing machine can work together with meat tenderizer to build production line catering to various needs.
- This Meat Flattener has water spraying system to avoid products sticking to conveyor belt.
- Protection system ensures safety of your operators.
- This Meat Flattener is constructed with stainless steel for reliable performance.
| Conveying Speed | 3-15m/min (Variable Frequency Speed Control) |
| Belt Width | 400/600mm |
| Flattening Thickness | 3-30mm |
| Power | 1.5kW |
| Overall Dimension | 2135×715×1320mm |
Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our flouring machine is 1 year, excluding wire belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
