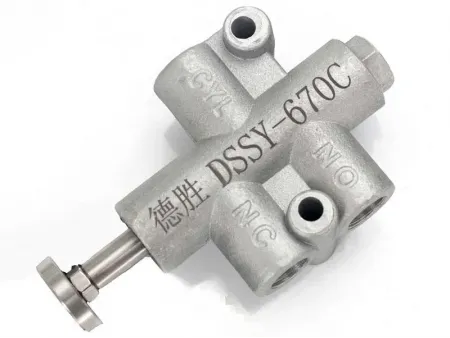

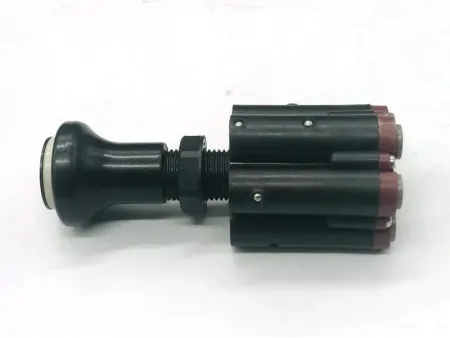

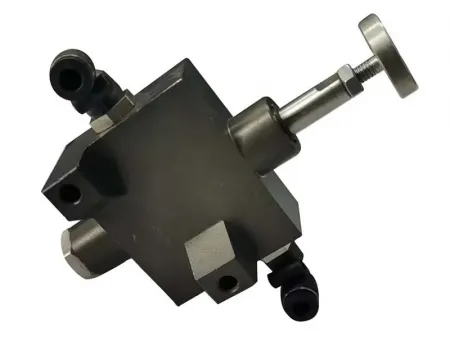

Air Interlock Valve

Request a Quote

View All: http://tankerparts-en.com/1-13-air-interlock-valve.html

Tank Truck Valves

Installed on the API bottom loading adapters and vapor recovery adapters for petroleum transport interlock needs

Specifications

Nominal pressure: 0.6MPa
Seal material: Fluorine rubber
Body material: Aluminum alloy
Temperature range: -20℃ to 70℃

Product Overview

The air interlock valve is installed on API bottom loading adapters and vapor recovery couplers to support interlock control in fuel tanker pneumatic systems. It ensures coordinated valve operation during loading, vapor recovery, and emergency shutdown procedures, forming a critical link between safety systems.

By integrating with the pneumatic control block, the tank truck valve allows synchronized control between the loading system and the vapor recovery interface. In case of emergency, pressing the interlock valve’s actuator immediately stops the air system, halting operations and reducing risk.

Features

Built with fluororubber (FKM) seals and stainless steel internal components for long-lasting durability
Valve body formed from extruded aluminum, offering high strength and light weight
Treated with a hard anodized surface for enhanced wear and corrosion resistance
Features a sealed closed-loop breathing structure, eliminating the need for vent holes and preventing the ingress of moisture or contaminants

Drawings Download

What materials are used in your fuel tanker air interlock valve?

The valve body is made from anodized aluminum alloy, and the seal components are fluororubber (FKM). These materials provide excellent resistance to corrosion and wear in fuel transport environments.

What fluids are compatible with this interlock valve?

The valve is compatible with a wide range of petroleum-based products including gasoline, diesel, aviation fuel, and marine fuel, as well as many chemical liquids. It is not suitable for highly corrosive substances such as sulfuric or concentrated nitric acid. Please consult us for specialized applications, we provide tailored solutions based on your specific needs.
