AS-P06 Corner Labeling Machine
Request a Quote
The corner labeling machine is designed for the application of seal labels on to boxes of various products. The label features a firm adhesion that will not fall off under normal conditions. Its maximum production speed is 120 pcs/min. It supports the application of 8 corner labels on one box at maximum.
Applications
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
- Applicable products: carton, card box, phone box, etc.
- Applicable industries: printing, food, daily chemical, electronics, pharmaceutical, etc.

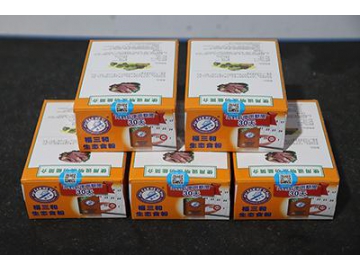

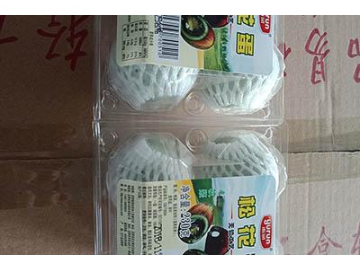

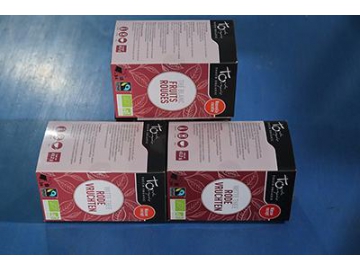

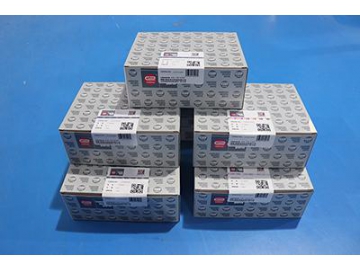

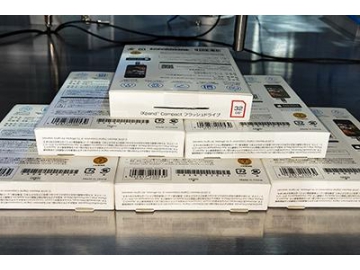

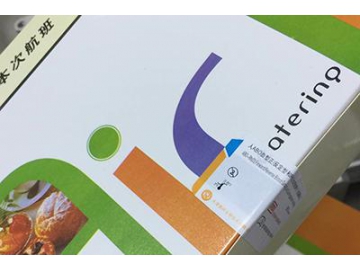

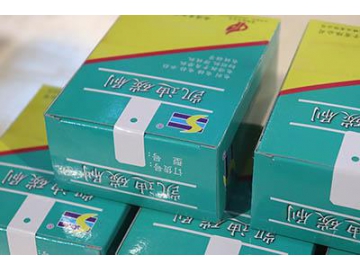

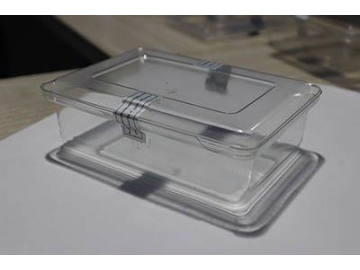

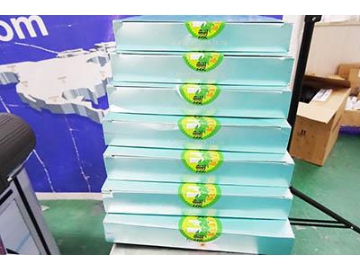

Samples
Specification
| Model | AS-P06 |
| Label stop accuracy | ±0.5mm |
| Production speed | 100-150 pcs/min |
| Product length | 20mm～200mm |
| Product width | 10mm～200mm |
| Product height | 10mm～200mm |
| Label length | 20mm～100mm |
| Label roll inside diameter | Φ76mm |
| Label roll outside diameter | Φ280mm |
| Dimensions (length x width x height) | 1700mm x 650mm x 1550mm |
| Weight | 150Kg |
| Air pressure | 0.4～0.6Mpa |
Details of Corner Labeling System

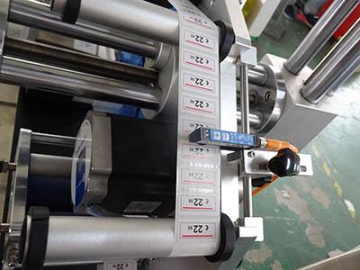

- Photoelectric sensor

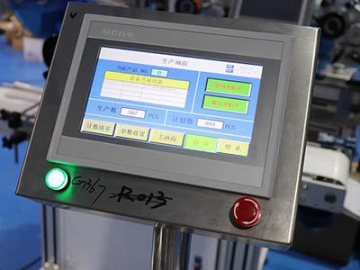

The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability. - Touch screen:

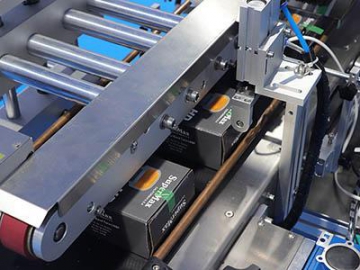

Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs. - Smoothing device with cylinder:

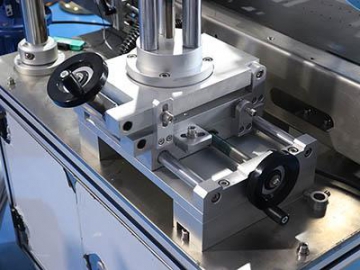

It applies a seal label on the corner of a box to prevent opening without permission. - Adjustable seat: The 6DOF adjustable seat enables quick changeover between different products.
