AS-P08 Inline Labeling Machine
Request a Quote
The inline labeling machine features a gantry structure and is equipped with multiple labeling heads. It can be integrated directly into production lines to apply labels on flat top and cambered surfaces of various products. The labeling equipment is typically used along with a coding conveyor. It operates with a maximum speed of 200 pcs/min.
Applications
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
- Applicable products: products with flat and cambered surfaces in production lines.
- Applicable industries: packaging, food, toy, daily chemical, electronics, pharmaceutical, etc.

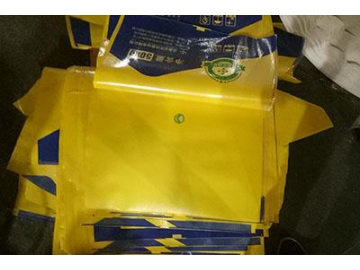

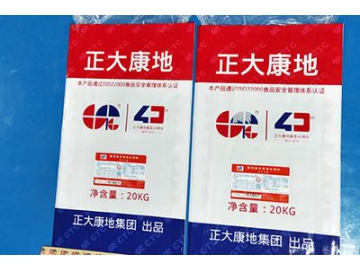

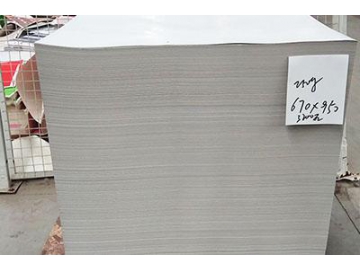

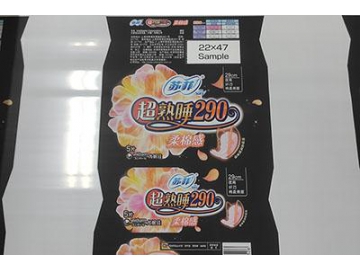

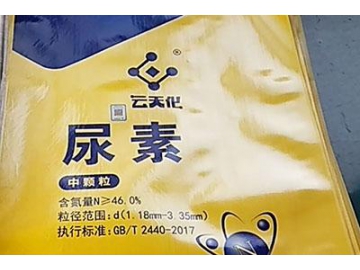

Samples
Specification
| Model | AS-P08 |
| Label stop accuracy | ±1mm |
| Production speed | 40-200 pcs/min |
| Product length | 20mm～280mm |
| Product width | 20mm～280mm |
| Product height | 20mm～120mm |
| Label length | 5mm～100mm |
| Label roll inside diameter | Φ76mm |
| Label roll outside diameter | Φ280mm |
| Dimensions (length x width x height) | 2000mm x 1000mm x 2000mm |
| Weight | 100Kg |

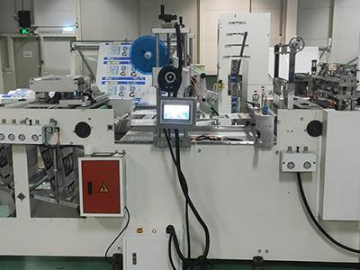

Details of Inline Labeling System

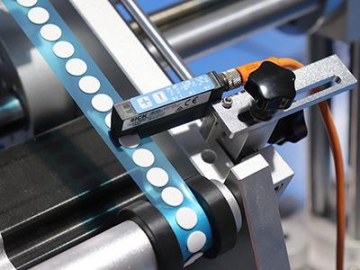

- Photoelectric sensor

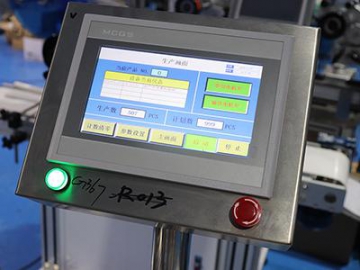

The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability. - Touch screen:
Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs. - Easy to apply:
It can be installed on the production line directly to realize fully automated production operations. It supports independent control and linkage control.
