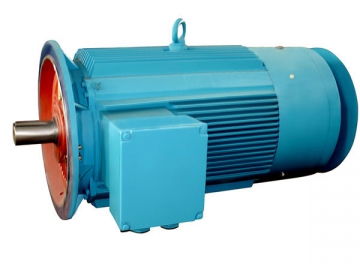

YCTJ-H Series Three Phase Squirrel Caged Induction Motor for Side Thruster

Introduction

Introduction
The YCTJ-H series of three phase marine induction motor for side thrusters is a completely enclosed, fan-cooled induction motor which works for power supply systems in all kinds of ships. The motor is the side thruster radiator and has a low starting current and high starting torque.

Construction
1. IP44 or IP23 protection rating
2. Material: HT200 cast iron frame with cooling ribs
3. Cylindrical shaft extension
4. Terminal box conforms to IEC IEC60034-8.The electric clearance is no less than 8mm and the creepage distance is no less than 12mm. Another binding post in the terminal box functions as a grounding connection.

Type designation

Operating Conditions

Operating Conditions
Temperature of ambient air: 0℃~45℃
Altitude: 0M
Relative humidity: ≤95%
Dew: exists
Oil mist: exists
Fungus: exists
Shock: exists
Vibration: exists
Inclination and swing: ±22.5°
Rated voltage and frequency: 50HZ.380V or 60HZ.440V
Connection: Δ(Y)
Duty type: continuous (S1)or S2-30 type
Insulation: B or F
Temperature rise of winding: 75K or 100K
Permissible working temperature of bearing: 90℃
(Thermometer method)
Type of starting: Direct on full-voltage starting for all sizes; reduced voltage starting allowable at no-load.

Vibration and Noise

Vibration and Noise
The effective values of vibration velocity, measured at the no-load conditions, do not exceed those given in table 2.

Table 2

Frame Size	The effective values of vibration velocity mm/s
160~225	2.8
250~355	3.5
400 and above	4.5

The following table 3 shows the noise condition when the motor is in no-load.

Table 3

Power kW	Synchronous speed r/min
	3600		3000	1500, 1800	1000, 1200	750, 900		600 、 720
	Sound power level dB （ A ）
4	-		-	-	-	69		-
5.5						69
7.5					75	72
11	87		87	82	75	72
15	87		87	82	78	75
18.5	87		87	82	78	75
22	92		92	82	78	78
30	95		95	84	81	78
37	95		95	84	81	78
45	97		97	84	84	78		87
55	97		97	86	84	81		87
75	99		99	92	90	87		87
90	99		99	92	90	87		92
110	104		104	98	92	87		92
132	105		104	101	92	99		92
160	105		104	101	102	99		97
200	105		104	101	102	99		97
250	113	111		108	105	101	99
315	113	111		108	108	105	101
355	115	113		111	111	105	101
400	115	113		111	111	108	-
450	116	113		111	111	-
500	118	116		115	-
560	118	116		115

Main Technical Data

Technical Data
The protection grade of frame sizes and power supply: Table 4 shows IP23 data, and Table 5 shows IP44 data.

Table 4

Frame Size	Number of Poles
	2	4	6	8	10
	Power kW
160M	15	11	7.5	5.5	-
160L 1	18.5	15	11	7.5
160L 2	22	18.5	-	-
180M	30	22	15	11
180L	37	30	18.5	15
200M	45	37	22	18.5
200L	55	45	30	22
225S	75	55	37	30
225M	90	75	45	37
250M	110	90	55	45
280S	-	110	75	55
280M	132	132	90	75
315S	160	160	110	90	55
315M	200	200	132	110	75
315L	250	250	160	132	90
355M	315	315	200	160	110
355L	355	355	250	200	132
400M 1	400	400	315	250	160
400M2	450	450	355	250	200
400L 1	500	500	400	315	250
400L 2	560	560	450	355	315

Table 5

Frame Size	Number of Poles
	2	4	6	8	10
	Power kW
160M 1	11	11	7.5	4	-
160M2	15	11	7.5	5.5
160L	18.5	15	11	7.5
180M	22	18.5	-	-
180L	-	22	15	11
200L 1	30	30	18.5	15
200L 2	37	30	22	15
225S	-	37	-	18.5
225M	45	45	30	22
250M	55	55	37	30
280S	75	75	45	37
280M	90	90	55	45
315S	110	110	75	55	45
315M	132	132	90	75	55
315L 1	160	160	110	90	75
315L 2	200	200	132	110	90
355M 1	250	250	160	132	110
355M2	250	250	200	160	132
355L	315	315	250	200	160
400M 1	355	355	280	220	200
400M2	400	400	315	250
400M3	450	450	-	-

Mounting and Overall Dimensions
Mounting and overall dimensions for motors with various mounting arrangements are shown below in photos 1 and 2 and tables 6 and 7.

Table 6 Motors featuring an end shield with flange and a frame without a foot (IP23) unit: mm

Frame Size	Flange Size	Mounting Dimensions and Tolerance												Overall Dimensions
		D	E	F	G	M	N	P	R	S		T	Number of flange holes	AC	AD	HF	L
160M	FF300	42	110	12	37	300	250	350	0	19	ф1.5 M	5.0	4	325	270	450	660
160L																	705
180M		48		14	42.5									360	290	490	730
180L																	765
200L	FF350	55		16	49	350	300	400						400	355	550	840
225S	FF400	55/60	110/140	18	49/53	400	350	450					8	450	370	610	890
225M																	865/915
250M	FF500	60/65	140		53/58	500	450	550						495	455	640	995
280S		65/75		18/20	58/67.5									550	470	720	1090
280M																	1140
315S	FF600	65/80	170	18/22	58/71	600	550	660		24	ф2.0 M	6.0		645	576	900	1390
315M																	1490
315L																	1490
355M	FF740	75/95		22/25	67.5/86	740	680	800						750	680	1035	1675
355L																	1675
400M	FF940	90/110	210	22/28	81/100	940	880	1000		28				980	820	1010	1720
Note: a) R is the distance from the fitting surface of the flange to the shaft shoulder. b) The numerators of fractions in the table give the data of 2-pole motors while the denominators give data for motors with more than 4 poles.

Table 7 Motors featuring an end shield existing flange and a frame without a foot (IP44) unit: mm

Frame size	Flange Size	Mounting Dimensions and Tolerance												Overall Dimensions
		D	E	F	G	M	N	P	R	S		T	Number of flange holes	AC	AD	HF	L
160M	FF300	42	110	12	37	300	250	350	0	19	ф1.5 M	5.0	4	325	270	450	660
160L																	705
180M		48		14	42.5									360	290	490	730
180L																	765
200L	FF350	55		16	49	350	300	400						400	355	550	840
225S	FF400	55/60	110/140	18	49/53	400	350	450					8	450	370	610	890
225M																	865/915
250M	FF500	60/65	140		53/58	500	450	550						495	455	640	995
280S		65/75		18/20	58/67.5									550	470	720	1090
280M																	1140
315S	FF600	65/80	170	18/22	58/71	600	550	660		24	ф2.0 M	6.0		645	576	900	1390
315M																	1490
315L																	1490
355M	FF740	75/95		22/25	67.5/86	740	680	800						750	680	1035	1675
355L																	1675
400M	FF940	90/110	210	22/28	81/100	940	880	1000		28				980	820	1010	1720
Note: a) R is the distance from the fitting surface of the flange to the shaft shoulder. b) The numerators of fractions in the table give the data of 2-pole motors while the denominators give the data of motors with more than 4 poles.
