900W Horizontal Travel Drive Motor, PMDC Brushed Motor ZD120A2
Request a Quote
Your Motion
Application: electric material handling equipment including conveyors, cranes, industrial trucks, forklifts, AGVs, etc.
Technical Specifications
| Rated Power (W) | 900 |
| Rated Voltage(V) | 24 |
| No-load Revolution (RPM) | 3300±8% |
| No-load Current (A) | ≤5 |
| Rated Current (A) | ≤50 |
| Rated Torque(N•m) | 3.15 |
| Rated Revolution (RPM) | 2700±8% |
| Working Cycle (min.) | S2-45 |
| Insulation Class | F |
| Protection Level | IP44 |
| Insulation Resistance | >20 MΩ |

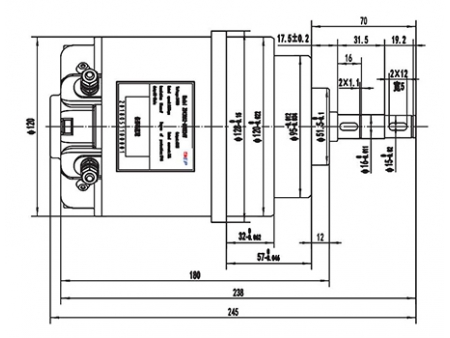

| Length (mm) | 245 |
Note: we can customize any permanent magnet direct current brushed drive motors according to your requirements and working conditions.
