Brushed DC motor is characterized by low starting voltages, small losses, high efficiency, perfectly linear speed-torque behavior, etc.
Shanbo EM has over 1000 models of brushed DC motors for you to choose from.

Motor Selection Range

Outer diameter: 38-130mm
Voltage: 6-220VDC
Speed: 600-8000rpm

Torque: 0.05-6Nm
Protection class: IP67
Operating temperature: -40°C – 70°C

Specifications

EM70ZY01

Voltage: 24V DC
Torque: 1.0N.m
Speed: 3100RPM

Power: 320W
Current: 22A

Working Duty: S2
Protection Class: IP67

EM80ZY20

Voltage: 24V DC
Torque: 0.8N.m
Speed: 3000RPM

Power: 250W
Current: 15A

Working Duty: S1
Protection Class: IP20

EM80ZY50

Voltage: 24V DC
Torque: 0.78N.m
Speed: 1750RPM

Power: 142W
Current: 8.4A

Working Duty: S1
Protection Class: IP43

EM38ZY02

Voltage: 24V DC
Torque: 0.115N.m
Speed: 3000RPM

Power: 36W
Current: 2.5A
Working Duty: S2

Protection Class: IP54
Insulation Class: B

EM42ZY03

Voltage: 24V DC
Torque: 0.03N.m
Speed: 3500RPM

Power: 11W
Current: 0.8A
Working Duty: S1

Protection Class: IP43
Insulation Class: B

EM44ZY01

Voltage: 24V DC
Torque: 0.13N.m
Speed: 6100RPM

Power: 84W
Current: 5A
Working Duty: S2

Protection Class: IP43
Insulation Class: B

EM64ZY08

Voltage: 110V DC
Torque: 0.57N.m
Speed: 3000RPM

Power: 180W
Current: 2A
Working Duty: S2

Protection Class: IP43
Insulation Class: B

EM64ZY16

Voltage: 24V DC
Torque: 0.2N.m
Speed: 740±10%RPM

Power: 15W
Current: 1.3A
Working Duty: S1

Protection Class: IP50
Insulation Class: B

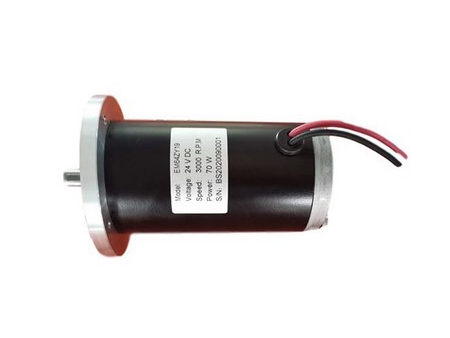

EM64ZY19

Voltage: 24V DC
Torque: 0.22N.m
Speed: 3000RPM

Power: 70W
Current: 4A
Working Duty: S1

Protection Class: IP50
Insulation Class: B

EM76ZY05

Voltage: 24V DC
Torque: 0.6N.m
Speed: 3600RPM

Power: 226W
Current: 12A
Working Duty: S2(2min)

Protection Class: IP67
Insulation Class: B

EM76ZY06

Voltage: 48V DC
Torque: 1N.m
Speed: 3600RPM

Power: 377W
Current: 10A
Working Duty: S2(2min)

Protection Class: IP67
Insulation Class: B

EM76ZY07

Voltage: 24V DC
Torque: 0.2N.m
Speed: 3500RPM

Power: 74W
Current: 4.5A
Working Duty: S2(2min)

Protection Class: IP67
Insulation Class: B

EM78ZY01

Voltage: 24V DC
Torque: 0.85N.m
Speed: 3400±10%RPM

Power: 300W
Current: ≤22A
Working Duty: Intermittent

Protection Class: IP67\IP69K
Insulation Class: F

80ZDY01-80W

Voltage: 12V DC
Torque: 1.1 N.m
Speed: 700RPM

Power: 80W
Current: 15A
Working Duty: S1

Protection Class: IP 55
Insulation Class: F

80ZDY-100W

Voltage: 12V DC
Torque: 0.8 N.m
Speed: 1200RPM

Power: 100W
Current: 14A
Working Duty: S1

Protection Class: IP 55
Insulation Class: F

80ZDY-100W

Voltage: 12V 24V DC
Torque: 0.3 N.m
Speed: 3000±10%

Power: 100W
Current: 13/6A
Working Duty: S1

Protection Class: IP 44
Insulation Class: F

80ZDY-140W

Voltage: 12V 24V DC
Torque: 0.45 N.m
Speed: 3000±10%

Power: 140W
Current: 17/8A
Working Duty: S2

Protection Class: IP 44
Insulation Class: F

80ZDY-180W

Voltage: 12V 24V DC
Torque: 0.57 N.m
Speed: 3000±10%

Power: 180W
Current: 22/10A
Working Duty: S1

Protection Class: IP 44
Insulation Class: F

80ZDY-250W

Voltage: 12V 24V DC
Torque: 0.8 N.m
Speed: 3000±10%

Power: 250W
Current: 31/15A
Working Duty: S2

Protection Class: IP 44
Insulation Class: F

EM80ZY33

Voltage: 24 DC
Torque: 0.32N.m
Speed: 3000RPM

Power: 100W
Current: ≤6A
Working Duty: S1

Protection Class: IP53
Insulation Class: B

EM80ZY34

Voltage: 24 DC
Torque: 0.64N.m
Speed: 1500RPM

Power: 100W
Current: ≤6A
Working Duty: S1

Protection Class: IP53
Insulation Class: B

EM80ZY41

Voltage: 24V DC
Torque: 0.6N.m
Speed: 600±10%RPM

Power: 38W
Current: 2.2 A
Working Duty: S1

Protection Class: IP50
Insulation Class: B

EM80ZY42

Voltage: 75V DC
Torque: 2.1N.m
Speed: 3150±10%RPM

Power: 690W
Current: 13A
Working Duty: S2

Protection Class: IP44
Insulation Class: B

EM80ZY48

Voltage: 24V DC
Torque: 1.7N.m
Speed: 4500RPM

Power: 800W
Current: ＜50A
Working Duty: S2

Protection Class: IP54
Insulation Class: F

EM84ZY04

Voltage: 12V DC
Torque: 1.15N.m
Speed: 1500RPM

Power: 180W
Current: 22A
Working Duty: S3

Protection Class: IP55
Insulation Class: B

90ZDY01

Voltage: 12V DC
Torque: 1.52N.m
Speed: 3400±10%

Power: 540W
Current: 70A
Working Duty: S2(2min)

Protection Class: IP 65
Insulation Class: F

90ZDY04

Voltage: 24V DC
Torque: 1.3N.m
Speed: 4000±10%

Power: 525W
Current: 33A
Working Duty: S2(5min)

Protection Class: IP 54
Insulation Class: F

90ZDY05

Voltage: 24V DC
Torque: 1.9N.m
Speed: 3000±10%

Power: 590W
Current: 37A
Working Duty: S2(5min)

Protection Class: IP 54
Insulation Class: F

EM90ZY15

Voltage: 12VDC
Torque: 1.76N.m
Speed: 3400RPM

Power: 627W
Current: ≤75A
Working Duty: S2

Protection Class: IP65
Insulation Class: F

105ZDY01

Voltage: 12V DC
Torque: 0.76N.m
Speed: 3800±10%

Power: 300W
Current: 42A
Working Duty: S1

Protection Class: IP 54
Insulation Class: F

105ZDY02

Voltage: 12V DC
Torque: 0.76N.m
Speed: 3800±10%

Power: 300W
Current: 40A
Working Duty: S1

Protection Class: IP 54
Insulation Class: F

105ZDY08

Voltage: 24V DC
Torque: 1.15N.m
Speed: 2000RPM

Power: 240W
Current: 17A
Working Duty: S1

Protection Class: IP53
Insulation Class: F

EM110ZY68

Voltage: 115 DC
Torque: 1.8N.m
Speed: 2800RPM

Power: 550W
Current: ≤6A
Working Duty: S3

Protection Class: IP53
Insulation Class: F

EM110ZY70

Voltage: 220 DC
Torque: 1.8N.m
Speed: 2800RPM

Power: 550W
Current: ≤4A
Working Duty: S3

Protection Class: IP53
Insulation Class: F

EM110ZY71

Voltage: 120 DC
Torque: 2.6N.m
Speed: 1850RPM

Power: 550W
Current: ≤6A
Working Duty: S3

Protection Class: IP53
Insulation Class: F

EM118ZY03

Voltage: 12V DC
Torque: 3N.m
Speed: 2200RPM

Power: 710W
Current: 85A
Working Duty: S2

Protection Class: IP65
Insulation Class: B

EM118ZY04

Voltage: 120V DC
Torque: 3N.m
Speed: 3600RPM

Power: 1100W
Current: 12A
Working Duty: S2

Protection Class: IP65
Insulation Class: B

123ZDY02

Voltage: 12V
Torque: 2N.m
Speed: 3700RPM

Power: 760W
Current: 90A
Working Duty: S2

Protection Class: IP 54
Insulation Class: F

123ZDY10

Voltage: 24V
Torque: 1.6 N.m
Speed: 3200RPM

Power: 550W
Current: 37A
Working Duty: S2

Protection Class: IP 54
Insulation Class: F

123ZDY05

Voltage: 48V
Torque: 1.8N.m
Speed: 3000±10%

Power: 560W
Current: 18A
Working Duty: S1

Protection Class: IP 56
Insulation Class: F

123ZDY03

Voltage: 24V
Torque: 2.5N.m
Speed: 4000RPM

Power: 1100W
Current: 70A
Working Duty: S2

Protection Class: IP 54
Insulation Class: F

123ZDY08

Voltage: 12V
Torque: 1N.m
Speed: 1500RPM

Power: 350W
Current: 50A
Working Duty: S2

Protection Class: IP 54
Insulation Class: F

123ZDY09

Voltage: 24V
Torque: 1.9 N.m
Speed: 2800±10%

Power: 560W
Current: 36A
Working Duty: S1

Protection Class: IP 56
Insulation Class: F

123ZDY01

Voltage: 12V
Torque: 1N.m
Speed: 4800RPM

Power: 500W
Current: 70A
Working Duty: S2

Protection Class: IP 54
Insulation Class: F

EM142ZY01

Voltage: 120V DC
Torque: 3.5N.m
Speed: 3000RPM

Power: 1100W
Current: 15A
Working Duty: S2-30min

Protection Class: IP2X
Insulation Class: F

Beside, Shanbo EM is able to offer custom made brushed DC motors per customer’s specific needs. We can do the job with results satisfying or beyond the expectations of our customers. Required parameters from customer are as follows:

Shaft
Installation sizes
Performance data

Protection class
Application environment

Lead wire
Connectors
