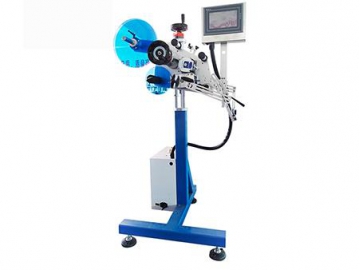

AS-P05 Inline Labeling Machine with Multi labeling head
Request a Quote
The inline labeling machine is designed for the application of labels on flat and cambered surfaces of various products. The automatic labeling machine can be integrated directly into production lines to realize fully automated production operations. For example, the inline labeling applicator usually works in combination with coding conveyors. It works with a maximum production speed of 200 pcs/min.
Applications
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
- Applicable products: The inline labeling machine can work in combination with pillow type packaging machines, automatic production lines, and printing presses to realize inline labeling.
- Applicable industries: packaging, food, toy, daily chemical, electronics, pharmaceutical, etc.

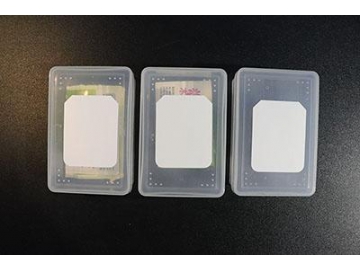

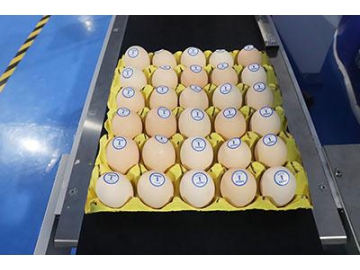

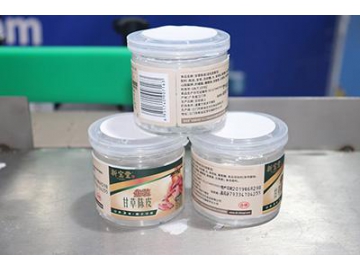

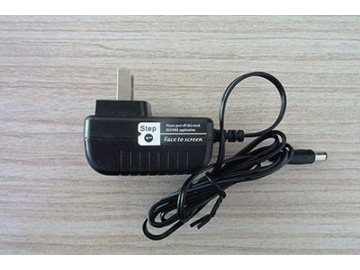

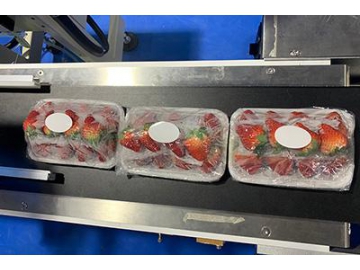

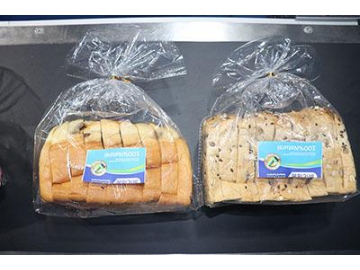

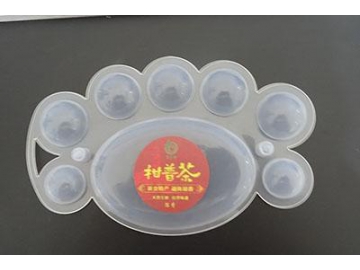

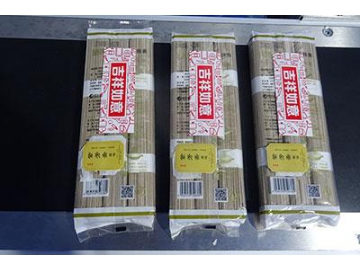

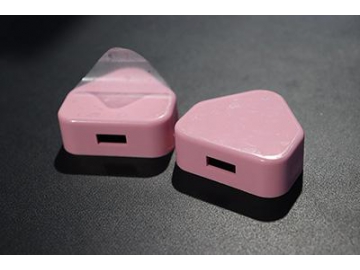

Samples
Specification
| Model | AS- P05 |
| Label stop accuracy | ±1mm |
| Production speed | 40-200 pcs/min |
| Label length | 6mm～250mm |
| Label roll inside diameter | Φ76mm |
| Label roll outside diameter | Φ280mm |
| Dimensions (length x width x height) | 1100mm x 700mm x 1450mm |
| Weight | 70Kg |
Details of Inline Labeling System

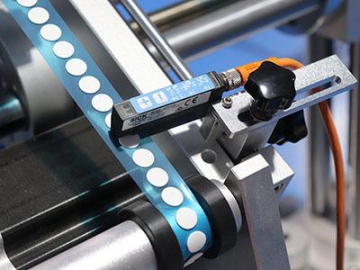

- Photoelectric sensor
The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability. - Touch screen:

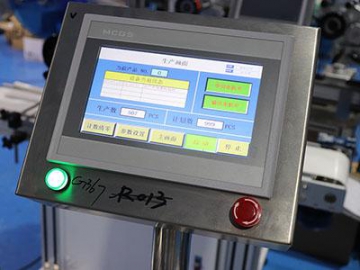

Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs. - Easy to apply:

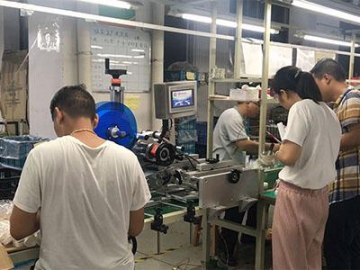

It can be installed on the production line directly to realize fully automated production operations. It supports independent control and linkage control.
