Aluminium-magnesium filler metal for MIG and TIG welding of aluminium-magnesium alloys
  • Standard: GB/T3190-2020
Chemical Composition (%)
Cu Si Fe Mn Mg Zn Al Ti Be Others
Each Total
≤0.1 ≤0.4 ≤0.4 0.5-0.8 5.8-6.8 ≤0.2 Rest 0.10-0.30 0.0001-0.005 ≤0.05 ≤0.1
Features
  • Contains 5.8–6.8% magnesium, providing improved mechanical properties over standard aluminium-magnesium alloys.
  • Offers enhanced corrosion resistance, allowing stable performance in demanding environments.
  • Designed to maintain durability and strength over time, even under long-term use.
Available Sizes

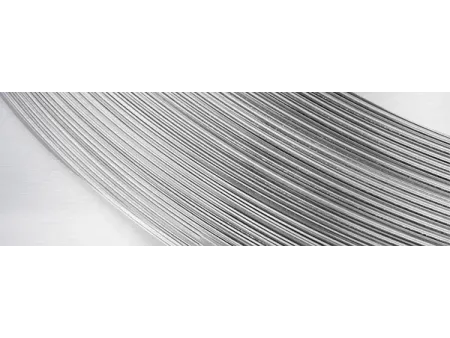

  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)
Applications
  • Capable of handling demanding aluminium alloys with high magnesium content, offering strength and corrosion resistance
  • Commonly used for welding and repairing aluminium alloy components in military equipment
  • In the marine industry, it supports secure connections on vessels and offshore platforms exposed to harsh environments

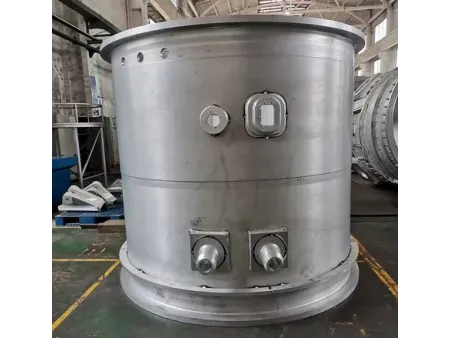

  • It's also a go-to choice for welding aluminium tanks in chemical processing facilities
Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm

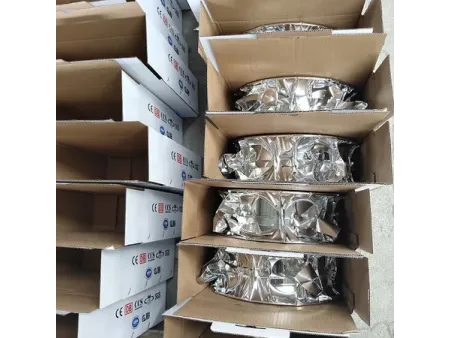

  • Package: D300 (9kg/spool), D270 (7kg/spool)
  • MIG wire diameter: 1.2mm, 1.6mm

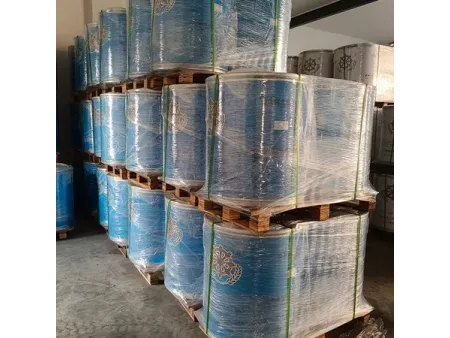

  • Package: drum D660 (100kg/drum)

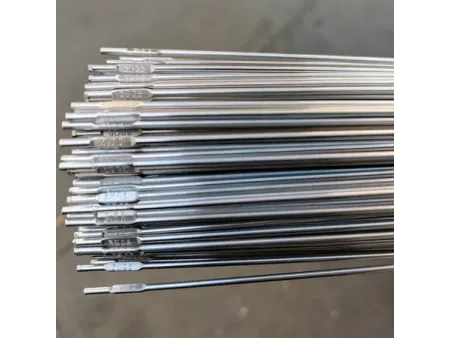

  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)
  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm

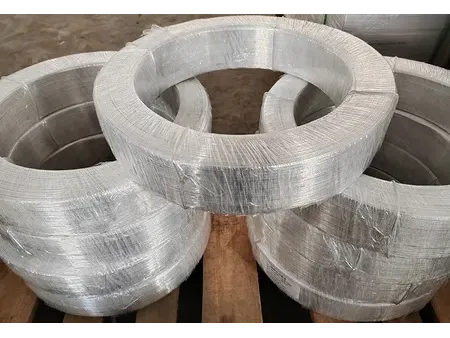

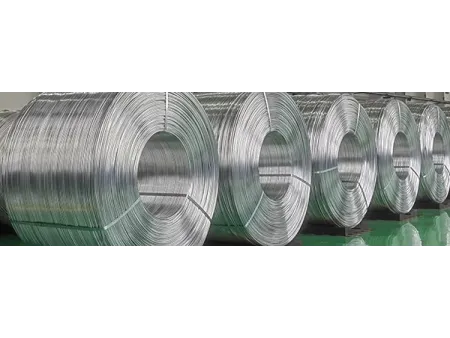

  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

MIG and TIG welding are both compatible with this wire. For optimal results, use alternating current (AC) with pure argon shielding gas. Make sure to clean the weld area thoroughly before starting; moisture, dust, or oxidation on the base metal or wire can affect the welding results.
