ER 6061 Aluminium Welding Wire Manufacturer

ER 6061 Aluminium Welding Wire

Request a Quote

View All: http://weldingwire-en.com/1-20-aluminium-welding-wire-er-6061.html

Welding Consumables

Aluminimum-magnesium-silicon filler metal for MIG and TIG welding of 6000 series base alloys

Standard: GB/T3190-2020

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al	Others
									Each	Total
0.40-0.8	≤0.7	0.15-0.40	≤0.15	0.8-1.2	0.04-0.35	≤0.25	≤0.15	Rest	≤0.05	≤0.15

Features

ER 6061 combines solid weldability with reliable heat and corrosion resistance.
Delivers stable material characteristics that ensure consistent weld quality.
It’s an affordable and efficient choice for handling 6xxx series aluminium alloys.

Available Sizes

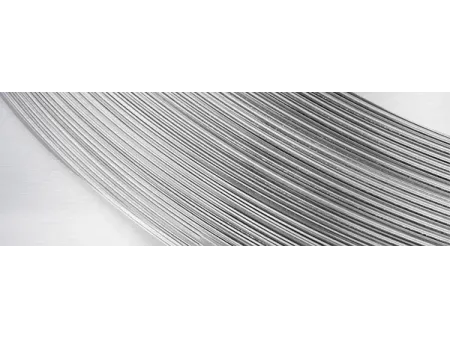

Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg)

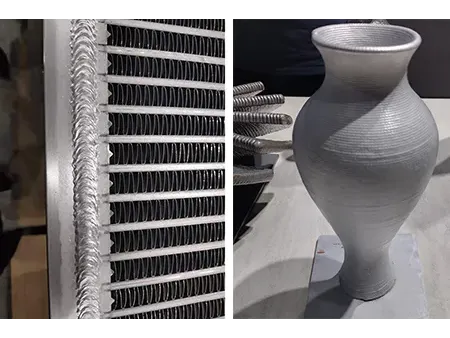

Applications

Welding of aluminium plates, including grades like 6061, 6063, and 1100
Automotive components such as body frames, bumpers, heat exchangers, and battery trays
Aluminium joints used in shipbuilding and offshore platform structures
Construction materials like doors, windows, formwork, scaffolding, and aluminium ladders
Aluminium tanks and containers used in the chemical industry

Packaging

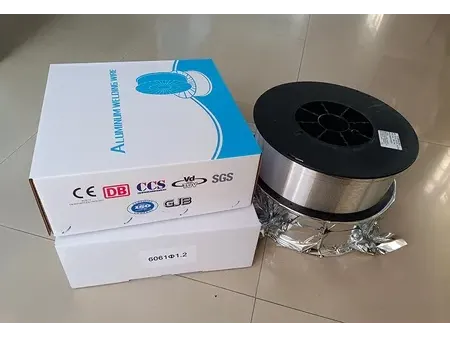

Spooled welding wire

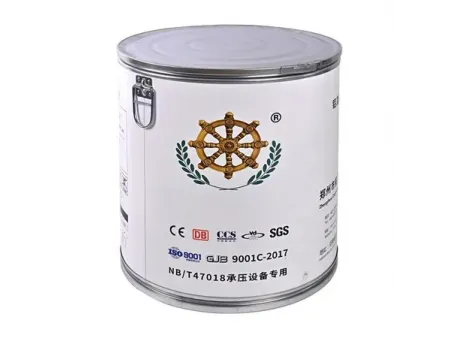

Drum packaged welding wire

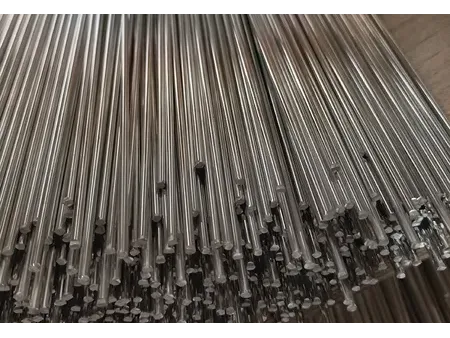

Straight welding wire

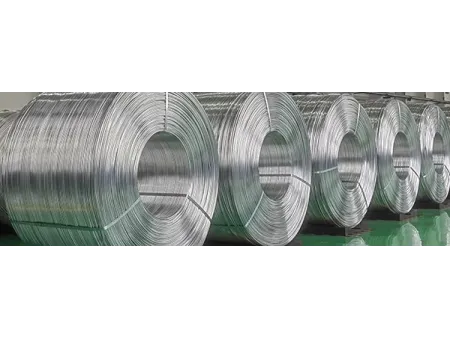

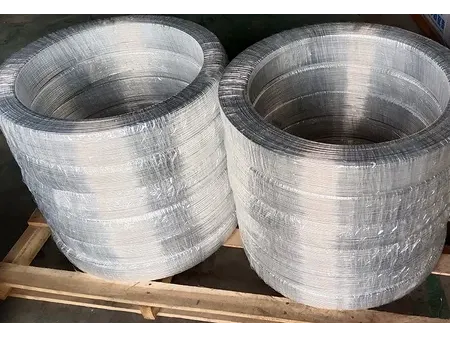

Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

Welding wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

ER 6061 works effectively with both MIG and TIG setups. For best results, use AC current and pure argon as shielding gas. Make sure to clean the weld area thoroughly before welding to avoid issues caused by moisture, oil, or surface oxidation.
