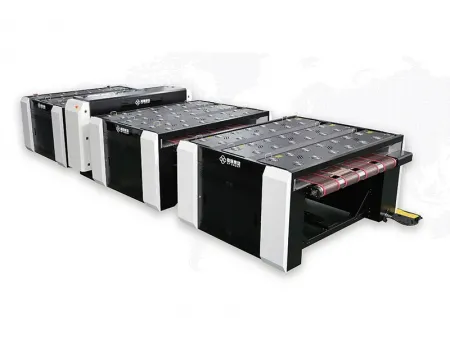

LQ-MD 1816/1818/1824

Inkjet printing system used in corrugated board production

The single-pass corrugated inkjet printer represents a leap forward in printing technology. This high-speed, plateless inkjet printer is equipped with Epson's industrial All-MEMS printhead, offering exceptional precision and efficiency. With a feeding width of 1800mm, a printing width of 800mm, and unlimited printing length, this printer is designed to handle a wide range of printing applications, making it a versatile solution for any business need.

This single-pass printer utilizes four primary color inkjet printing technology, which eliminates the need for a plate washing machine. The one-click cleaning system ensures the printheads are cleaned properly after each startup, not only maintaining print quality but also extending the printheads' life. The printer uses water-based dye ink known for its high fluency and bright colors. For those requiring more durability, optional pigment ink offers strong water resistance and high UV resistance. This range of inks ensures that every print is not only beautiful but also environmentally friendly.

The software control system is easy to use, enabling operators to start the printing process with a simple click of the "start" button. This ease of use is combined with a printing speed of up to 1.5m/s, meeting the requirements of mass production orders without compromising quality.

Applications
Specifications
Model LQ-MD 1816 LQ-MD 1818 LQ-MD 1824
RIP Software Maintop
Picture Format TIFF, JPG, PDF, PNG
Printhead EPSON Industrial ALL-MEMS printhead
No. of Printhead 16 18 24
Ink Type & Color CMYK water based ink
Max. Print Width 533mm 600mm 800mm
Media Thickness 05-20mm
Max. Print Speed 1.5m/s (300×600dpi) 0.8m/s (600×600dpi) 0.5m/s (900×600dpi)
Min.Feeding Width 350×450mm without scoring, 350mm×660mm with scoring
Max. Feeding Width Standard 1800mm
Feeding Mode Automatic feeding
Operating System Windows 7 or later version
Working Environment Temperature: 18-30℃ Humidity: 50%-70%
Voltage 220V±10%, 50/60Hz
Total Power AC220V, 50-60Hz
Printer Size (L×W×H) 4310×5160×1980mm
Printer Weight 2500kg
Features
  • With a maximum theoretical printing speed of 1m/s, this printer competes well with traditional printing methods, offering faster turnaround times without sacrificing quality.
  • Unlike traditional printers that require time-consuming and costly plate making, this printer operates without printing plates. Using intelligent digital inkjet printing technology, it simplifies job changes and operation, enhancing workflow efficiency.
  • This single-pass printer reduces environmental impact by using water-based inks and avoiding the cleaning processes that lead to pollution. This approach not only protects the environment but also creates a safer workplace for staff.
  • The printer minimizes the reliance on operator experience and reduces labor-intensive processes. Automatic drawing, color matching, and the latest RIP technology save time and costs. High production efficiency and the ability to handle on-demand, small-quantity printing quickly make this printer a standout choice for reducing operational overhead.
