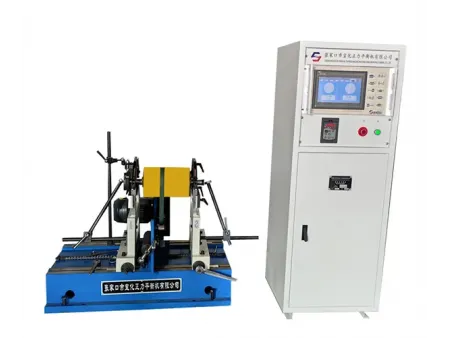

Horizontal Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-2-2-26-hard-bearing-balancing-machine.html

YYWQ-10000

Hard-bearing balancing machine (universal joint belt drive) for workpiece with diameter of up to 3000mm and weight of 5-10000kg

Dual-drive horizontal hard-bearing balancing machine with both universal joint and belt drive options.
Handles rotors from 50 to 10,000 kg, with diameters up to 3000 mm.
Maximum support span of 6500 mm, which can be customized according to user requirements.
Equipped with a variable-frequency drive for stepless speed control.
Includes a digital display measuring system with microprocessor processing, along with a computer-based display interface for easier operation and data analysis.

Applications

Ideal for handling a broad range of components, this model can be used for balancing motor rotors, electric drums, fan and pump impellers, separator and oil press rotors, as well as rolls, paperboard machine rotors, and crushers.

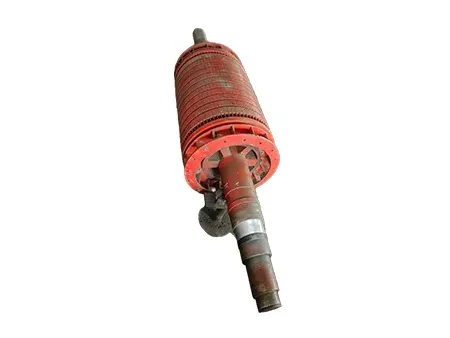

Motor rotors balancing

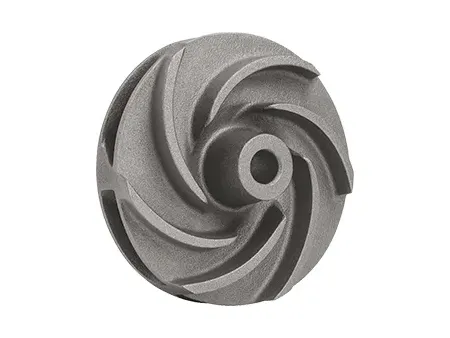

Pump impellers balancing

Specifications

Workpiece weight	Belt drive	5-500kg
Workpiece weight	Universal joint drive	500-10000kg
Max. workpiece diameter	Belt drive	800mm
Max. workpiece diameter	Universal joint drive	3000mm
Journal diameter of workpiece	Belt drive	Ø10-90mm
Journal diameter of workpiece	Universal joint drive	Ø40-300mm
Distance between two bearing supports		80-300mm
Balancing speed	Belt drive	300-2000r/min
Balancing speed	Universal joint drive	180-1500r/min
Min. achievable residual unbalance (eMar)	Belt drive	≤0.5g.mm/kg
Min. achievable residual unbalance (eMar)	Universal joint drive	≤1.0g.mm/kg
Unbalance reduction ratio (URR)		≥95%
