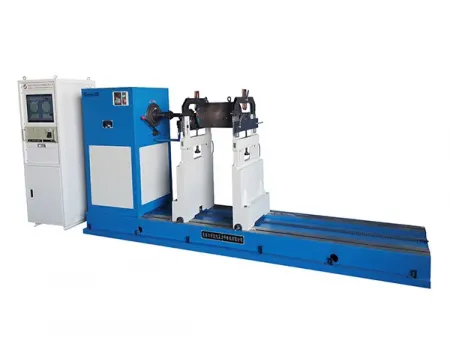

YYW-2000

Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1800mm and maximum weight of 2000kg

Supports workpieces up to 2000 kg in weight and 1800 mm in diameter
Stepless speed control with frequency converter for accurate adjustment
Uses NI software technology to ensure stable performance even at low speeds
Quick setup: unbalance value and phase are displayed accurately in a single run

Applications

Suitable for dynamic balancing of long-shaft components as well as a wide range of industrial and agricultural rotors and other components, including motor rotors, pump and fan impellers, separator rotors, oil press rotors, rollers, paperboard machine rotors, crushers, straw returning machines, and corn harvesters.

Motor rotors balancing
Pump impellers balancing
Fan impellers balancing

Specifications

Max. workpiece weight	2000kg
Max. workpiece diameter	1800mm
Journal diameter of workpiece	Ø15-120mm
Min. distance between two bearings	100mm
Max. distance from coupling end to right bearing support	4000mm (or customizable)
Min. achievable residual unbalance (eMar)	≤1g.mm/kg
Unbalance reduction ratio (URR)	≥90%
Electronic measuring system	ZL-210 dynamic balancing measuring system (touch screen) with cabinet
Electrical control cabinet	Free-standing control cabinet

Features

The hard-bearing structure keeps the operating speed well below the resonance point, which improves safety during operation.
Can be configured with the ZL-220 dynamic balancing measuring system, designed with integrated circuits for fast and precise measurement. Within seconds, both unbalance value and phase are shown directly in grams and degrees.
The ZL-220 dynamic balancing measuring system also allows switching between light and heavy modes after the rotor has stopped, with automatic memory that simplifies operation.
An optional ZL-210 industrial PC system is available, with printer support for easy data output and record keeping.
