132kw DEUTZ Air-Cooled Diesel Generator Sets
Request a Quote
View All: http://deutzchbdp.com

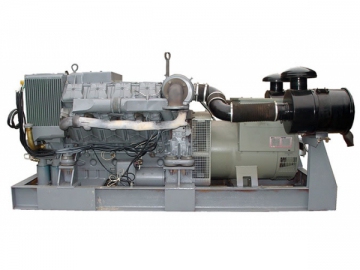

General Image
Professional 132KW Genset Diesel Generator, Deutz Engine, Meccalte/Stamford.etc ALternator, Deep Sea Control Panel
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||
| Model | 120GF | Model | BF8L513 | Model | UCI274G |
| Rated Prime power | 120KW | Prime power | Rated power | 128KW | |
| Standby . power | 132KW | Stand power | 147KW | Stand power | 400V/230V |
| Rated voltage | 400/230V | Rated speed | 1500rpm | Efficiency | 92.50% |
| Rated frequency | 50Hz | No. of Cylinder | 8 | Rated current | 231A |
| Rated currency | 217A | Bore/stroke | 125/130 | Power factor | 0.8 |
| Power factor | 0.8 | Cylinder arrangement | V | Frequency | 50Hz |
| Steady state volt deviation | ≤±1% | Fuel consumption | 215g /kwh | Protection/ insulation | IP23/H |
| Steady state frequency | ≤1.5% | Start mode | 24V electrical | Exciting way | brushless self-exciting |
| Frequency drop scope | ≤5% | Governor | electronic | Weight | 550kg |
| Phase | three phase | Aspiration type | Turbocharged | ||
| Base Frame | steel | Cooling way | Air cooled | ||
| Dimension (mm) | 2250×1200×1460 | Displacement | 12.763L | ||
| Weight | 1850kg | Weight | 920kg | ||
| Type | Generator Set 1 2 0GF |
| Place of Origin | China (Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 150 KVA |
| Output Power | 120 kW |
| Frequency | 50Hz /60Hz |
| Cooling Type | Air Cooled |
| Alternator | Meccalte/Stamford/or customerized |
| Optional | silent type / o pen type /water-proof type |
| Certification | ISO |
