82kw DEUTZ Air-Cooled Diesel Generator Sets
Request a Quote
View All: http://deutzchbdp.com

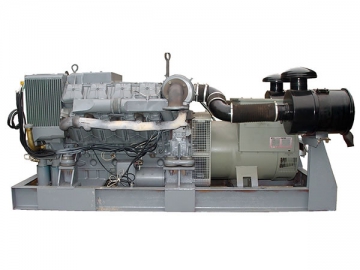

General Image
Professional 82KW Genset Diesel Generator, Deutz Engine, Meccalte/Stamford.etc ALternator, Deep Sea Control Panel
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||
| Model | 75GF | Model | BF6L913CD | Model | UCI274C |
| Rated Prime power | 75KW | Prime power | 84KW | Rated power | 80KW |
| Standby power | 82KW | Stand power | 90KW | Rated voltage | 400V/230V |
| Rated voltage | 400/230V | Rated speed | 1500rpm | Efficiency | 90.30% |
| Rated frequency | 50Hz | No. of Cylinder | 6 | Rated current | 144A |
| Rated currency | 135A | Bore/stroke | 102/125 | Power factor | 0.8 |
| Power factor | 0.8 | Cylinder arrangement | line | Frequency | 50Hz |
| Steady state volt deviation | ≤±5% | Fuel consumption | 242g /kwh | Protection/ insulation | IP23/H |
| Steady state frequency | ≤2.5% | Start mode | 24V electrical | Exciting way | brushless self-exciting |
| Frequency drop scope | ≤8% | Governor | mechanical | Weight | 385kg |
| Phase | three phase | Aspiration type | Turbocharged inter-cooled | ||
| Base Frame | steel | Cooling way | air cooled | ||
| Dimension (mm) | 2100×850×1250 | Displacement | 6.128L | ||
| Weight | 1150kg | Weight | 510kg | ||
| Type | Generator Set 75GF |
| Place of Origin | China (Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 93 KVA |
| Output Power | 75 kW |
| Frequency | 50Hz /60Hz |
| Cooling Type | Air Cooled |
| Alternator | Meccalte/Stamford/or customerized |
| Optional | silent type / o pen type /water-proof type |
| Certification | ISO |
