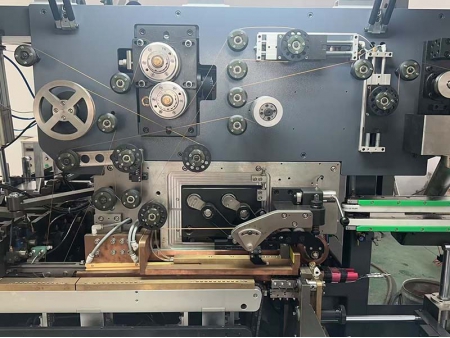

Automatic Can Body Welder, RS-520S

Automatic Can Body Welder, RS-520S
Automatic Can Body Welder, RS-520S
Automatic Can Body Welder, RS-520S
Request a Quote
View All: http://canproduction-line.com/1-2-2-automatic-can-body-welder.html

Parameters

  • Capacity: 300-450 cans/min
  • Can diameter: 52-99mm/99mm-153mm
  • Can height: 80-320mm
  • Wire speed: 15-65m/min
  • Power: 45KVA
  • Weight: 5200kg
  • Provided with a set of canbody die
Send
Configurations
  • PLC: Omron
  • VFD: Mitsubishi/Omron
  • Motor: Taiwan Li Ming
  • Servo motor: Yaskawa (4 sets, motion control system)
  • Pneumatic components: SMC/AirTAC
  • Inverter: sine wave inverter
  • Optional: online current detection
  • Bearings: NSK/NTN
  • Sensor: SICK
