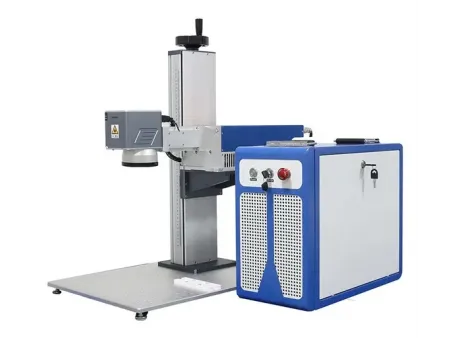

Split type Fiber Laser Marking Machine, MF20-A-A Split type Laser System
Applicable Materials
The MF20-A-A standard edition laser system is applicable for surface marking of materials, such as plastics, stainless steel, aluminum oxide, cast iron, wooden products, copper and so on.
| Model | Laser power (W) | Working area (mm) | Lifting height (mm) | Minimum line width (mm) | Minimum character (mm) | Graphic format supported | Supply voltage | Overall dimension (mm) | Weight (Kg) | Working environment | Total power (Kw) |
| MF20-A-A split type | 20/ 30 / 50 | 70x70 110x110 175x175 200x200 300x300 | 500~1200 | 0.03 | 0.2 | BMP, PLT, AI, DXF, etc. | AC220V±10%,50HZ/60HZ | | 40 (Estimation) | Temp:10~ 35°C , Humidity:5~85%. No condensate water, no dust or less dust. | 1 |
Laser Processing Examples:
- jewelry laser marking and engraving
- knite laser marking
- metal cutter laser marking and engraving
- metal laser marking QR code date code
- ring laser engraving
- stainless coloured laser marking
-
-
Product Feature
1. The fiber laser system uses a high-quality laser source that offers precise light spot and laser power with a uniform density and stable output. It features no light streak and a high contrast resistance, allowing it to satisfy mainstream market application needs.
2. Han’s Yueming’s OEM numerical high-speed scanning galvanometer features a small volume, high speed and excellent stability.
3. The control system is powerful and is capable of carrying out various data optimizes processes based on different techniques. Using a shortcut key, it supports multiple languages and up to 256 layers of color, satisfying market needs.
4. The die-casting mold manufactured lifting platform has a built-in linear guide with a stable structure and simple design.
5. Split frame design, high flexibility, suitable for different shapes of the workpieces marking, also can match the production line marking.
