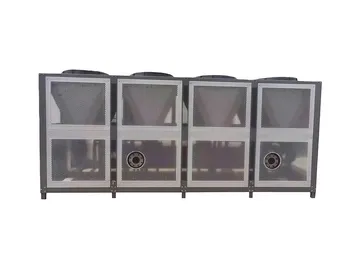

58.5-420.0kW Air-Cooled Scroll Chiller

Request a Quote

Website: http://chillers-en.com/3-1-58-5-420kw-air-cooled-scroll-chiller.html

• Model: ICS-20A~ICS-150A

• Cooling Capacity: 58.5-420.0kW

• Temperature precision: ±1.0/±1.5°C

• Noise level: 69–76dB(A)

The air-cooled scroll chiller integrates a scroll compressor with an air-cooling system, eliminating the need for a cooling tower or dedicated machine room. It features low operating noise, energy efficiency, and a compact design, making it suitable for medium-capacity cooling demands. Widely used in pharmaceutical, chemical, CNC machining, rubber and plastics, and food processing industries.

Specifications

Model			ICS-20A	ICS-25A	ICS-40A	ICS-50A
Cooling capacity		kW	58.5	69	116	140
		10³ kcal/h	50.3	59.3	100	120
Power supply		V/Ph/Hz	380/3/50
Total power input		kW	18.9	21.8	37.8	44.5
Rated current		A	37	42	69	81
Compressor	Type		Scroll type
	Power	kW	17.4	20.2	35	40.6
Evaporator	Type		Shell-and-tube type
	Water side pressure		16 bar
Water flow rate		m³/h	10	11.8	20	24
		L/min	167	197	333	400
Pipe connection size		DN	50	50	50	65
Noise level		dB(A)	69	70	72	72
Weight		kg	600	750	1100	1300
Dimensions	Length	mm	2080	2080	2200	2100
	Width	mm	1050	1050	1200	1905
	Height	mm	1820	1820	2135	2120

Model			ICS-75A	ICS-100A	ICS-125A	ICS-150A
Cooling capacity		kW	210	280	350	420
		10³ kcal/h	180.6	240.8	301	361.2
Power supply		V/Ph/Hz	380/3/50
Total power input		kW	65.5	87	109	131
Rated current		A	120	160	200	240
Compressor	Type		Scroll type
	Power	kW	60.9	81.2	101.5	121.8
Evaporator	Type		Shell-and-tube type
	Water side pressure		16 bar
Water flow rate		m³/h	36.1	48.2	60.2	72.3
		L/min	600	803	1003	1204
Pipe connection size		DN	80	80	100	100
Noise level		dB(A)	73	74	75	76
Weight		kg	1850	2450	2950	3450
Dimensions	Length	mm	3155	4205	5255	6305
	Width	mm	1905
	Height	mm	1920

Customized specifications are available upon request. Please Contact Us for details.
