High Temperature Heat Shrink Marker Sleeve, PSFR

High-temperature, Heat Shrinkable Identification Sleeves

Model: PSFR

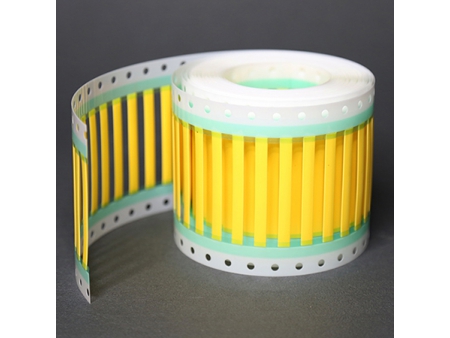

PSFR-M high temperature heat shrink marker sleeve is a type of heat shrink identification sleeves designed for wire and cable identification in applications with high temperature environments or requiring extreme resistance to fuels, lubricants and cleaning solvents. The PSFR-M high temperature heat shrink marker sleeve is printable using thermal transfer printer, and the identification marks are durable and can remain legible even when exposed to abrasion, aggressive cleaning solvents and industrial fluids.

Standard

AMS-DTL-23053/18, SAE-AS 81531, MIL-STD-202F/Method 215J, UL224, RoHS etc.

Features

Material: fabricated from irradiated, thermally stabilized, flame retarded, modified PVDF
Application: defense, aerospace, mass transit, etc.
Operating temperature range: -55℃～ 225℃
Minimum recovery temperature: 135℃
Maximum storage temperature: 50℃
Shrink ratio: 2:1
Color: white, yellow, other colors are available upon request
Printing: single sided printing or double sided printing
Supplied format: ladder-style or continuous sleeve
Recommended printer: thermal transfer printer
Recommended ribbon: N85 resin ribbon, black, 100mm(width)×300m(length)

Technical Data

Property	Testing Requirement	WOER Results
Tensile strength (MPa)	24.3	31.3
Ultimate Elongation (%)	200	330
Low temperature flexibility 4 hours at -55±1℃	No cracking	Pass(no cracking)
Heat shock 4 hours at 275±3℃	No cracking, flowing or dripping	Pass(no cracking, legible after 100 rubs))
Dielectric strength (kV/mm)	15.7	43.0
Volume Resistivity (Ω.cm)	1.0×1012minimum	9.1×1012
Corrosive effect	No corrosive	Pass
Flammability	VW-1	Pass
Heat aging 168 hours at 225±2℃	No cracking, flowing or dripping	Pass(no cracking, legible after 100 rubs)
Print performance	SAE-AS 81531	Pass(legible after 100 rubs)
Strokes	MIL-STD-202F	Pass

Dimensions

Shrink ratio-2X

Order Code	As Supplied (mm)			As Supplied (mm)
Order Code	ID (D)	Flatten Width (W2)	Double Wall Thickness	ID (d)	Single Wall Thickness
AMS-M-2X-1.6	2.00±0.20	3.7±0.3	0.48±0.10	≤0.79	0.45±0.06
AMS-M-2X-2.4	2.79±0.20	5.0±0.3	0.48±0.10	≤1.18	0.49±0.06
AMS-M-2X-3.2	3.64±0.23	6.3±0.4	0.48±0.10	≤1.59	0.51±0.06
AMS-M-2X-4.8	5.26±0.25	8.9±0.4	0.49±0.10	≤2.36	0.54±0.06
AMS-M-2X-6.4	6.92±0.28	11.5±0.4	0.50±0.10	≤3.18	0.56±0.06
AMS-M-2X-9.5	10.2±0.32	16.7±0.5	0.51±0.11	≤4.75	0.59±0.06
AMS-M-2X-12.7	13.5±0.36	21.8±0.6	0.52±0.11	≤6.35	0.60±0.07
AMS-M-2X-19-	20.1±0.40	32.2±0.6	0.53±0.11	≤9.53	0.62±0.07
AMS-M-2X-25-	26.7±0.45	42.5±0.7	0.55±0.12	≤12.7	0.63±0.07
AMS-M-2X-38-	39.8±0.51	63.2±0.8	0.57±0.12	≤19.1	0.64±0.07
AMS-M-2X-51-	53.0±0.56	83.9±0.9	0.58±0.13	≤25.4	0.64±0.08
AMS-M-2X-76-	79.4±0.56	125.3±1.0	0.59±0.13	≤38.1	0.64±0.09
