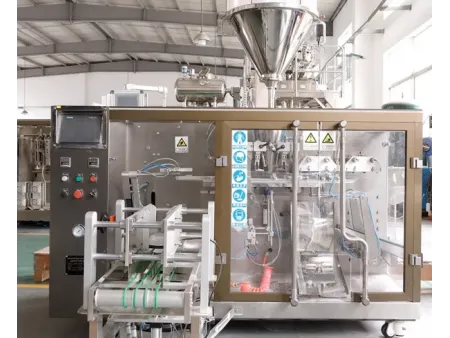

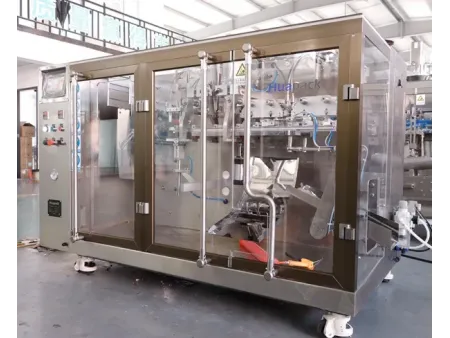

Premade Pouch Packaging Machine (1-Nozzle Filling, 5 Stations)
Request a Quote
240NG-5
Compact pouch filling and sealing system for space-limited production with high flexibility of bag styles
Designed for small and medium production lines, these premade pouch packaging machines use a five-station structure with one filling nozzle. Compared with traditional eight-station packaging machines, the reduced number of stations keeps the main steps of pouch opening, filling, and sealing, while making the overall packaging machine more compact and helping save space on the production floor. They can run common ready-made pouch formats such as stand-up, zipper, pouches, and are suitable for packaging powders, granules, liquids, and viscous products.
Applicable Pouch Types
Our flexible packaging machines are widely applicable to a variety of pouch types, including Stand-up Pouch, Flat Pouch, Zipper Pouch, Spouted Pouch, Gusset Pouch, and more.
Supported Pouch Types
- Flat pouches
- Flat pouches
- Stand-up pouches (doypack)/Zipper pouches
- Stand-up pouches (doypack)/Zipper pouches
- Shaped pouches
- Spouted pouches
Applicable Products
Liquids, powders, granules, and viscous products.
Process Flow
- Pouch loading
- Pouch pick-up
- Pouch opening detection
- Bottom opening
- Filling
- Pouch spreading
- Heat sealing
- Seal cooling
- Finished pouch forming
- Finished pouch discharge
Advantages
- Compact layout
The five-station layout requires less floor space than traditional eight-station machines, which is ideal for factories that have limited space and supports a more efficient workshop layout. - Wide pouch format support
Suitable for different pouch types, including three-side seal, four-side seal, stand-up pouches, zipper pouches, and spouted pouches. - Flexible dosing options
Can be equipped with different filling systems such as auger fillers, cup fillers, and liquid pumps, enabling accurate dosing of powders, granules, liquids, and viscous products. - Easy operation
A touch-screen interface with clear parameter settings and recipe storage, so different products can be set up quickly and production parameters adjusted easily. - Hygienic and durable structure
The parts that come in contact with the products are made of stainless steel and designed to meet food hygiene requirements.
Specifications
| Model | | |
| Packaging parameters | Min. pouch size (W × H) | 70×130mm |
| Max. pouch size (W × H) | 240×350mm | |
| Max. filling volume | 2000ml | |
| Packing speed (pouches/min) | ≤40 | |
| Equipment specifications | Machine dimensions (L × W × H) | 1960mm×1100mm×1250mm |
| Total machine weight | 800kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 300L/min | |
| Main motor power | 2.3Kw | |
Optional Functions
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern
Details
- Pouch pick-up unit
- Filling unit
- Heat sealing unit
- Finished pouch discharge unit
- Factory overview
- Shipping & delivery
As a specialized manufacturer of flexible packaging machinery, Huapack focuses on providing automated flexible packaging lines that seamlessly integrate dosing, filling, and sealing (capping). Constructed with robust industrial-grade stainless steel, the premade pouch and rollstock pouch packaging machines we supply are proven to ensure stability during 7x24 hour high-intensity production. With a footprint in over 50 countries, we are committed to being your long-term partner for reliable flexible packaging machines with responsive after-sales support.
What factors matter for contract-packaging companies handling multiple product types?
What factors matter for contract-packaging companies handling multiple product types?
For contract packers working with many different products, what really matters is flexibility. Being able to run different pouch styles and switch between them quickly is essential, especially when dealing with small batches and frequent order changes. Smooth changeover and good bag compatibility help keep production efficient without long downtime between jobs.
How do pouch systems accommodate multiple bag sizes in flexible production environments?
How do pouch systems accommodate multiple bag sizes in flexible production environments?
Pouch systems handle this mainly through recipe storage and easy parameter adjustment. Once the settings for each bag size are saved, operators can change formats quickly and accurately, so moving from one pouch specification to another becomes a simple process instead of a long, complicated setup.
