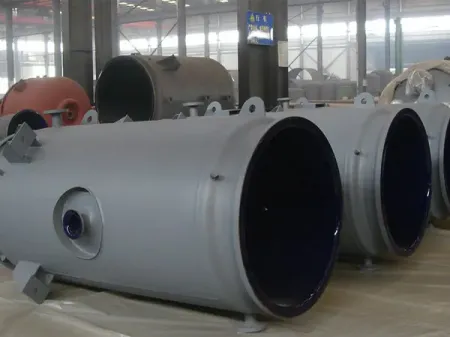

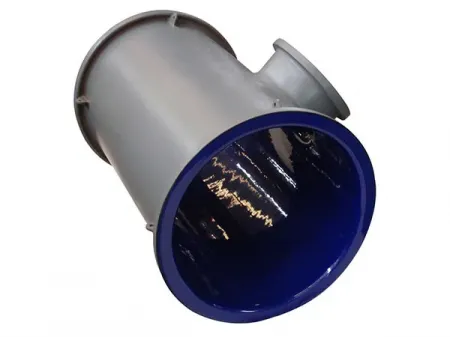

Glass-Lined Column
Main Features of Taiji Glass-Lined Column
- With years of experience in manufacturing glass-lined columns, Taiji boasts proven and industry leading technology in this products.
- This glass-lined equipment from Taiji comes with all kinds of specifications and can be designed and made to customers' individual specifications.
- Our glass-lined columns come in jacket type and non-jacket type.

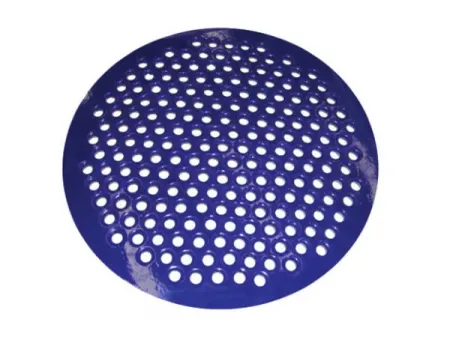

- According to different process conditions, the glass lined steel column offers an option of glass-lined screen plate, PTFE screen plate and GRP screen plate.
Technical Parameters
| Shell Side | Tube Side | Jacket | |
| Design Pressure (MPa) | -0.1/0.4 | -0.1/0.4 | -0.1/0.4 |
| Design Temperature (℃) | -19/200 | -19/200 | -19/200 |
| Specification (mm) | Length of Heat Exchange Tubes (mm) | Amount of Heat Exchange Tubes | Tube Heat Exchange Area (㎡) | Jacket Heat Exchange Area (㎡) | Total Heat Exchange Area (㎡) | Total Length (mm) |
| | 900 | 7 | 0.75 | 0.48 | 1.23 | -1650 |
| | 900 | 13 | 1.4 | 0.6 | 2 | -1660 |
| | 900 | 19 | 2.04 | 0.61 | 2.65 | -170 |
| | 1100 | 19 | 2.5 | 0.82 | 3.32 | -1900 |
| | 1100 | 31 | 4.07 | 1.16 | 5.23 | -2125 |
| | 1300 | 31 | 4.81 | 1.42 | 6.23 | -2325 |
| | 1100 | 42 | 5.52 | 1.32 | 6.84 | -2140 |
| | 1300 | 42 | 6.52 | 1.61 | 8.13 | -2340 |
| | 1300 | 55 | 8.54 | 1.64 | 10.18 | -2360 |
| | 2000 | 55 | 13.13 | 2.77 | 15.9 | -3060 |
| | 2000 | 73 | 17.42 | 3.44 | 20.86 | -3170 |
| | 2000 | 109 | 25.94 | 4.16 | 30.1 | -3245 |
| | 2000 | 151 | 35.93 | 4.79 | 40.72 | -3270 |
- No.100, Taishan Road, New Century Industrial Park, Guoli, Huantai District, Zibo City, Shandong Province
- 86-533-8409960
Taiji has decades of experience in the construction and delivery of glass-lined equipment for chemical, pharmaceutical, food processing industries, etc. We are certified for the fabrication of glass-lined products by ASME, PED and RTN. As an experienced glass-lined vessels manufacturer, we understand the selection, layout and manufacturing of glass lined process equipment and their spare parts is critical for the reliability of their production as well as essential for the secure process and storage of corrosive, poison and dangerous chemicals. Therefore, our glass lined steel equipment such as glass-lined reactor and storage tank, pressure vessel is the long-recognized standard in the chemical process industries. Taiji has the capability to adapt our services to your individual requirements.
