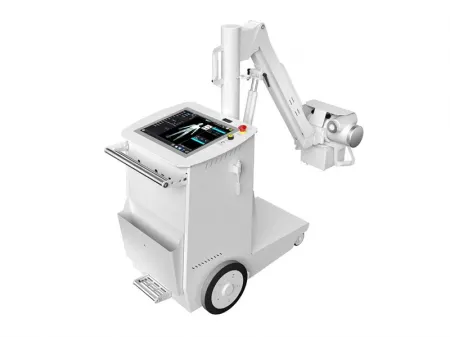

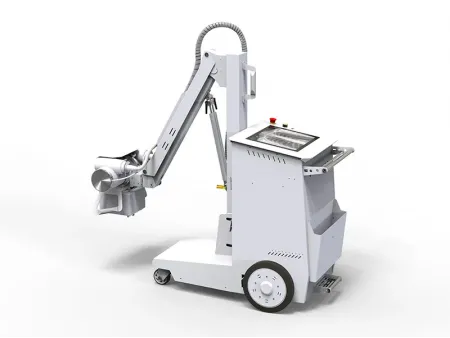

SHO-MDR Medical Imaging

Digital radiography system with 19-inch touch screen

The mobile digital X-ray machine gives you exceptional image quality for head, limb, chest, lumbar, and abdominal imaging, ensuring clear and accurate diagnostics. With power options of 20kW & 200mA, 20kW & 320mA, and 32kW & 400mA, you can choose the right level of performance for your medical setting. Designed for ICU wards and emergency rooms, this system provides efficient, reliable imaging when and where you need it. Its mobility and ease of use make it a valuable asset in fast-paced medical environments.

Specifications
Ambient Conditions
Ambient temperature 10℃ to 40℃
Relative humidity 30-75%
Atmospheric 70-106 kPa
X-Ray Generator
Model SHO-MDR01 SHO-MDR02 SHO-MDR03
Output power (kW) 20 20 32
Current (mA) 200 320 400
Voltage (kV) 40-125 40-125 40-125
mAs range (mAs) 0.5-320 0.5-320 0.32-400
Frequency (kHz) ≥100 ≥100 ≥100
Exposure time (s) 0.002-6.3
Focus size 0.6/1.2 0.6/1.2 1.0/2.0
X-Ray Tube
Anode type Rotating Anode
Focal Spot value 1.0 mm / 2.0mm
Power of focal spot 21 kW/42.5 kW
Maximum voltage 125 kV
Revolving speed of anode 2800 rpm
Inherent filtration 1.5 mmAl
Anode heat storage capacity 100 kJ (140 kHU)
Heat storage capacity 900 kJ
Anode angle 16°
Maximum anode heat dissipation 475 W
X-Ray Detector (Flat Panel Detector)
Type Amorphous Silicon WIFI connection
Scintillator Cesium Iodide
Active Area 17×17 inch (43×43 cm)
Active Pixel 3072*3072
Pixel Pitch 139 μm
A/D Conversion 16 bits
DQE ≧70%
Spatial Resolution 34Lp/cm
Acquisition time ≤ 2 s
AED function Equipped
Collimator
Type Manual Collimator
Max. Window 440×440mm (SID=100 cm)
Lamp AC/DC 24 V, 5 W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0mmAl
Illuminant LED
Digital Image Workstation
Display size 17 inch LCD touch screen
Display screen Maximum resolution 1280*1024
CPU ≥2.0 GHz
Memory ≥8 GB
HDD ≥500 GB
Operation System 64 bit Windows operation system
DICOM3.0 Query for integration with any PACS
Functions
  • Patient registration: acquisition, find the patient data, to prepare for the photography
  • Radiographic examination: setting system parameters, exposure photography and get the image
  • Images display, image analysis, image processing and output
  • Data management: managing patient data, leading in, leading out , batch file, etc in accordance with DICOM3.0
X-Ray Imaging
Head radiograph
Limb radiograph
Abdominal radiograph
Lumbar radiograph
Chest radiograph
Main Parts

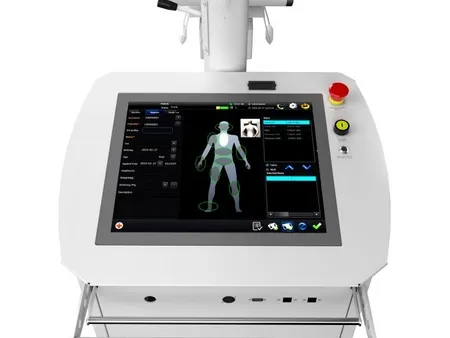

Integrated Intelligent Computer System with 19-Inch Touchscreen Display

Provides an intuitive user experience and enhanced visual clarity. An optional built-in battery allows for 300 additional exposures after just one hour of charging.

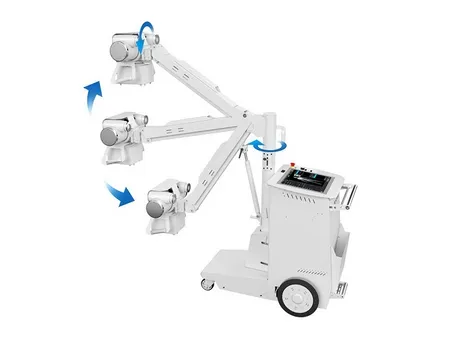

Adjustable Support Arm

Designed to accommodate patients of different heights in hospital wards. An optional 180-degree rotating column is available for added flexibility.

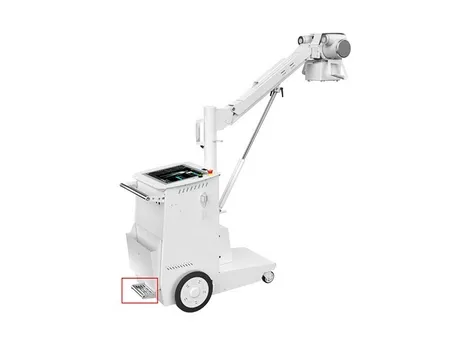

Equipped with Foot Pedal

Helps navigate elevated ward thresholds for easier movement.

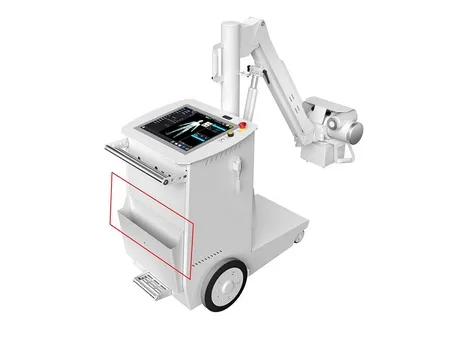

Flat Panel Detector Storage Compartment

Ensures safe and convenient storage.

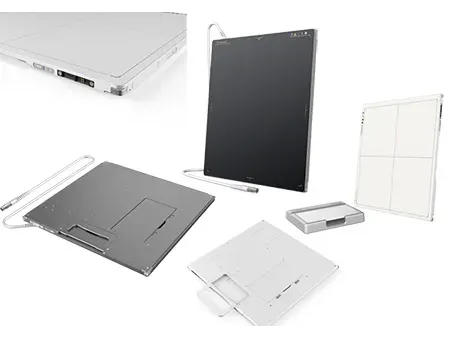

Flat Panel Detector (FPD)

Uses world-renowned Iray technology for high conversion efficiency, enabling low-dose digital imaging. Available in both wired and wireless FPD options to suit your needs.

Looking for a versatile mobile X-ray solution? Contact us today to find the best fit for your needs!
