35mm Chain Width
- Beam width: 45mm
- Chain width: 35mm
- Chain pitch: 25.4mm
- Chain tension limit/tensile strength: 1000N
- Maximum conveyor load: 200kg
- Maximum conveyor length: 25m
- Materials: aluminum/stainless steel
*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

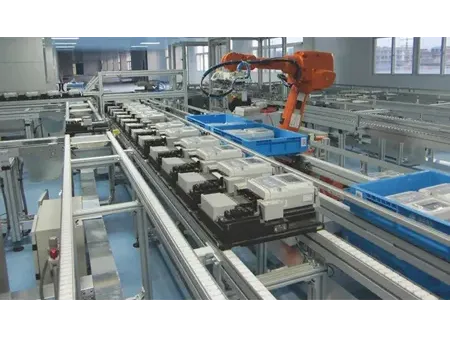

The CXT modular plastic chain conveyor is a pallet conveyor system that uses the design of twin track with flexible plastic chains to securely convey products. The standard conveyor chain width is 35 millimeters.
- Tailored solutions for your material conveying needs: Customize your material conveyor system with a wide range of customizable material conveying solutions and components.
- Optimize your production lines: To improve your production flow and ensure smooth conveying operations, we have various molds for manufacturing purposes, including exclusive injection molding molds designed to meet high-quality standards and ensure consistent product quality during production.
- Maximize efficiency: Our conveyor chains are seamlessly compatible with conveyor systems from leading brands such as Flexlink, FlexMove, and Rexroth for enhanced flexibility.
This modular plastic chain conveyor is suitable for automatic assembly and testing processes across industries (e.g., computers, sewing machines, mobile phones, automotive seats, eyeglasses, injection-molded parts, fishing reels, car instrument kits, etc.). The conveyor is also suitable for moving and handling heavy loads.

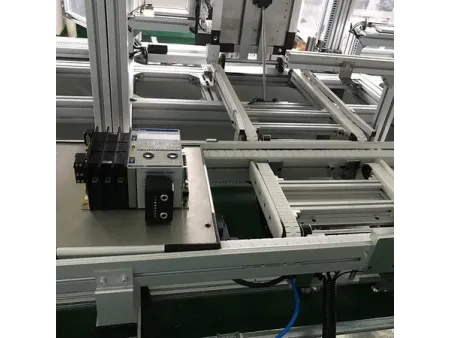

Pallet Chain Outfeed Conveyor

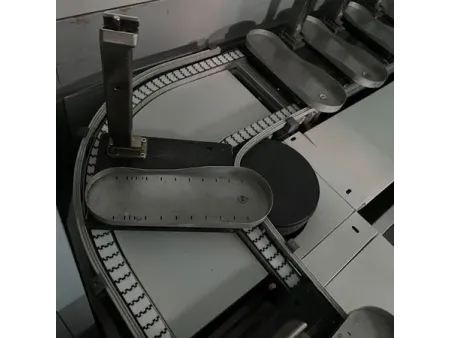

Dual-Track Conveyor for Footwear Industry

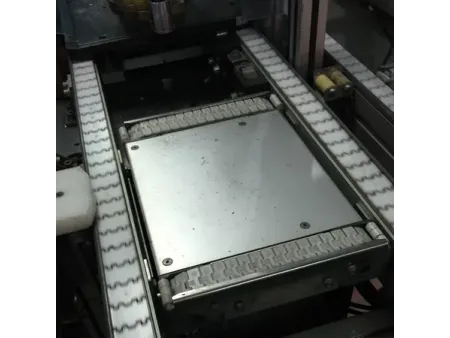

Lift Transfer Unit

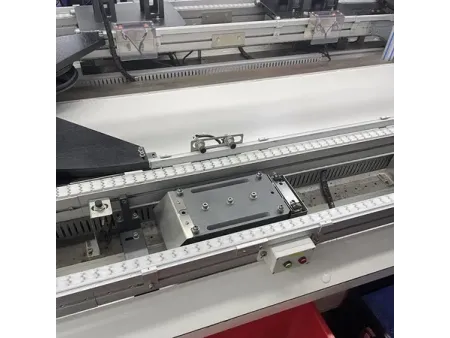

Plastic chain conveyor for low voltage components
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

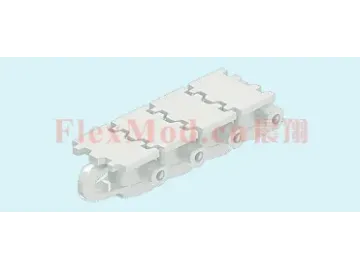

Conveyor chains

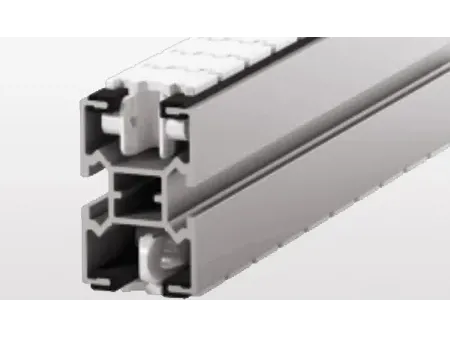

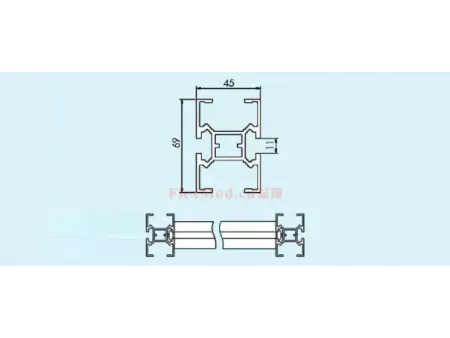

Conveyor beam

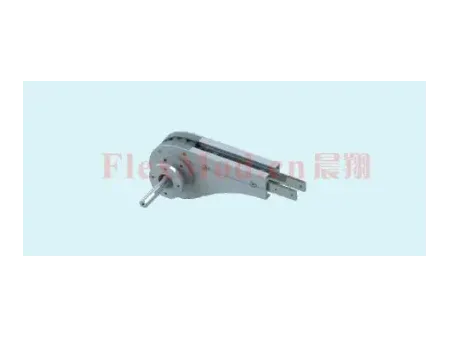

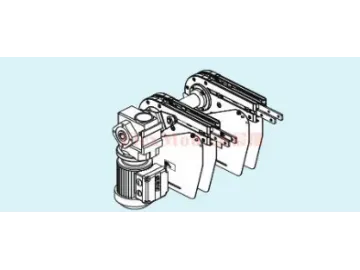

End drive units
End drive units

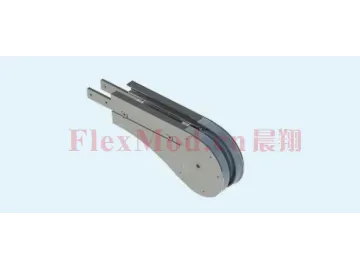

Idler end unit
