i-Sleeve Pro Single Head Shrink Sleeve Labeling Machine
Automatic shrink sleeve label applicator for speeds up to 600BPM
i-Sleeve Pro single head shrink sleeve labeling machine is launched by our company, capable of reaching a maximum speed of 600BPM/180mm (standard length). The shrink sleeve labeling machine can adapt to bottles or containers of various sizes and shapes, such as square and curved shapes. Our shrink sleeve label applicator finds extensive applications in shrink sleeve labeling across multiple packaging industries, including beverage packaging, pharmaceutical packaging, and food packaging. This model stands out for its compact footprint and high production output, perfectly meeting the needs of customers who require efficient and high-speed machinery.
- Maximum Speed: 600BPM
- Bottle Outer Diameter: Ø25mm to Ø125mm (based on customer-provided bottle specifications)
- Film Material: PVC / PET / OPS
- Film Thickness: PVC: 0.032mm to 0.07mm, PET: 0.02mm to 0.06mm, OPS: 0.04mm to 0.06mm
- Machine Dimensions (L×W×H): 2410mm×1377mm×2799mm (our company reserves the right to modify the machine dimensions for equipment optimization)
- Voltage: 3-phase, 220V
- Compatible with packaging production lines, supporting voltage-free I/O control or Ethernet communication systems.
- Equipped with protective covers and a color human-machine interface (HMI) that allows users to easily set all parameters, facilitating control over the packaging production line.
- Unique knife plate design eliminates the need for changing knife plate within the specified range. If replacement is required, it can be done quickly within minutes.
- Utilizes PLC control to enhance labeling accuracy and speed.
- Incorporates servo motion control and Ethernet communication, making the labeling process less susceptible to interference.
- Stores up to 100 sets of recipes for easy access and use.
- Optional UWI-8 floor-standing multi-reel label unwinder extends material replacement time, increases production efficiency, and reduces labor costs.
- Compatible with PET 20um shrink labels and PVC 32um shrink labels, significantly reducing material costs while achieving labeling speeds of up to 350 BPM/180mm (standard length).
- When using PET/PVC 40um labels, the fastest labeling speed can reach 600 BPM/180mm (standard length).
- Suitable for use when the conveyor belt speed is not constant; the labeling machine can still complete labeling without adjusting the bottle sensor.
- Sleeve underlapping machine is optional for producing premium packaging.
- Neck Tamper Evident Banding Used for sealing bottle necks, preventing tampering and other objects, ensuring product integrity.
- Full Body Over-The-Cap Sleeve Labeling Labels cover the bottle neck, body, and bottom, commonly used for sauces, condiments, and similar products.
- Full Body Shrink Sleeve Labeling Labels cover from the lower edge of the bottle neck to the bottom, commonly used for juices, coffee, and more.
- Partial Body Shrink Sleeve Labeling Labels are positioned in the center of the bottle body, commonly used for various bottled and canned products.
- Full Body & Underlap Sleeve Labeling Designed for products requiring labeling to the bottom, enhancing product aesthetics and presentation.

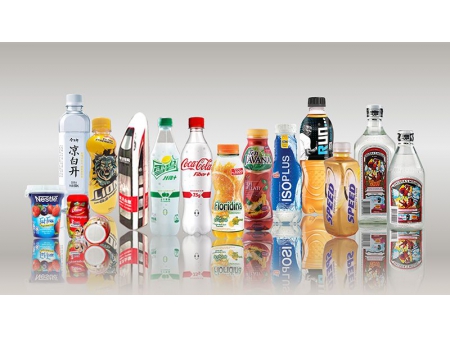

Our shrink sleeve labeling machine is widely used in the beverage packaging, dairy packaging, pharmaceutical packaging, personal care packaging, food packaging, and various other packaging industries. It is suitable for bottles or containers of different sizes and shapes, including square, curved, cup-shaped, and unique types of containers.
