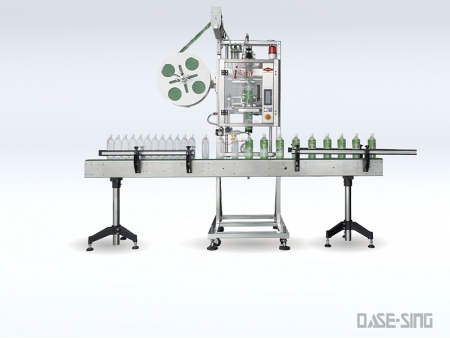

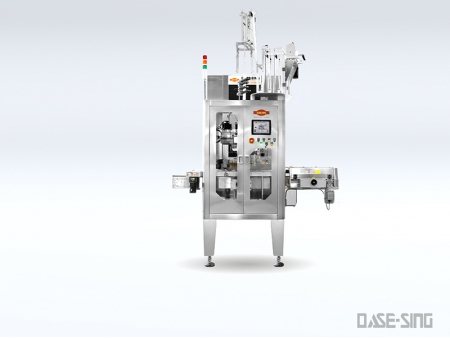

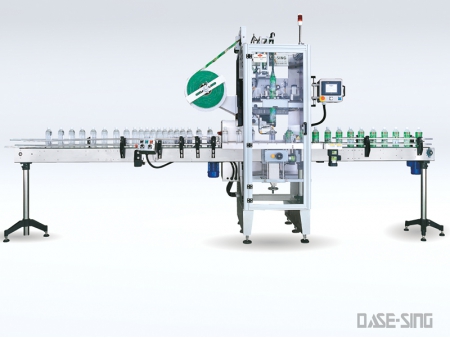

DSK-2B Single Head Shrink Sleeve Labeling Machine
Automatic shrink sleeve label applicator for wide mouth bottles

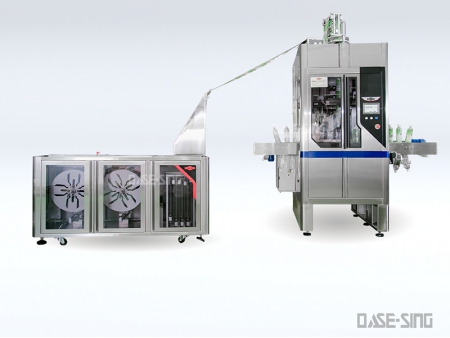

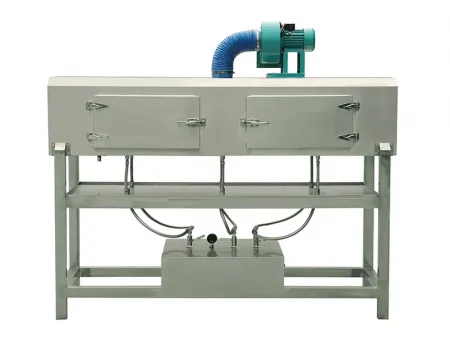

DSK-2B single-head shrink sleeve labeling machine is specifically designed for wide-mouth bottles and is suitable for containers with a diameter ranging from 135mm to 200mm. At the standard length of 150mm, the shrink sleeve labeling machine operates at a standard speed of 150 BPM (the speed may vary with longer label lengths). It can be equipped with various peripheral devices, such as electric or steam shrink tunnels and label orientation systems, according to customer requirements. The smooth and stable production efficiency greatly increases capacity, and the labels remain flat and undistorted after shrinking, ensuring high-quality packaging.
- Maximum Speed: 150 BPM
- Bottle Outer Diameter: Below Ø200mm
- Film Material: PVC / PET
- Film Thickness: PVC: 0.04mm~0.05mm
- Machine Dimensions (L×W×H): 1100mm×1180mm×2000mm (our company reserves the right to modify the machine's dimensions for equipment optimization)
- Voltage: 3-phase, 220V (according to customer requirements)
- The knife plate use Japanese brand servo system for stability and durability.
- Suitable for bottle diameters ranging from 135mm to 200mm.
- Dual-drive system for stable and accurate labeling.
- Gear-driven knife plate design for extended lifespan and perfect cutting of labels.
- Linkage arrangement of drive and front/rear stops ensures the precise position of mandrel.
- Cam design of feeding roller enables shrink sleeve installation faster.
- Human-machine interface system uses a large seven-inch touch screen for user-friendly operation.
- Dual-drive system and core shaft-supported connecting rod design for stable and reliable labeling.
This single-head shrink sleeve labeling machine uses a well-known brand color mark sensor for accurate and efficient recognition.
- Neck Tamper Evident Banding Used for sealing bottle necks, preventing tampering, and maintaining product integrity.
- Full Body Over-The-Cap Sleeve Labeling Labels cover the bottle neck, body, and bottom, commonly used for sauces, condiments, and similar products.
- Full Body Shrink Sleeve Labeling Labels cover from the lower edge of the bottle neck to the bottom, commonly used for juices, coffee, and more.
- Partial Body Shrink Sleeve Labeling Labels are positioned in the center of the bottle body, commonly used for various bottled and canned products.
- Full Body & Underlap Sleeve Labeling Designed for products requiring labeling to the bottom, enhancing product aesthetics and presentation.
This shrink sleeve labeling machine is widely used in various packaging industries, including beverage packaging, dairy packaging, pharmaceutical packaging, and more. It is suitable for containers with diameters ranging from 135mm to 200mm.
