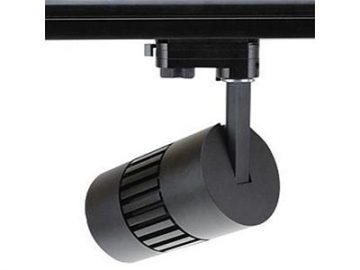

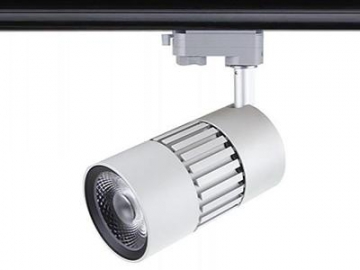

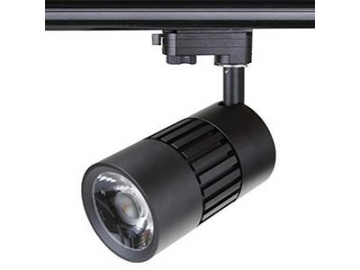

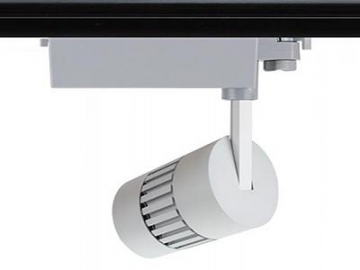

R Series Modern Track Lighting LED Light Kit
Request a Quote
Features
- R series LED track lights have a fin-like radiator, which is fashionable and functional. The radiator has good heat dissipation performance.
- External power supply or built-in power supply are both available.
- The beam angle of standard reflection cup is 10°, 24°, 36°.
- The color render index (CRI) is Ra97+(2700K/3000K/4000K), which displays the natural color of objects
- We provide two kinds of track adaptor, one is PowerGear, the other is GLOBAL, for you to choose.
- The LED driver of the track light is of high quality. The light has no strobes, PF>0.95. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flickering.
- If the CRI is up to 80, the luminous efficiency is more than 100 lm/w.
- Eight kinds of power: 10W, 15W, 20W, 25W, 30W, 35W, 40W, and 45W are available.
Product Models
| Model No. | Power | Dimension | |
| BH-TL-10W-R | 10W | Φ70*L124mm | |
| BH-TL-15W-R | 15W | Φ70*L124mm | |
| BH-TL-20W-R | 20W | Φ90*L160mm | |
| BH-TL-25W-R | 25W | Φ90*L160mm | |
| BH-TL-30W-R | 30W | Φ90*L160mm | |
| BH-TL-35W-R | 35W | Φ90*L160mm | |
| BH-TL-40W-R | 40W | Φ110*L195mm | |
| BH-TL-45W-R | 45W | Φ110*L195mm |
Dimension

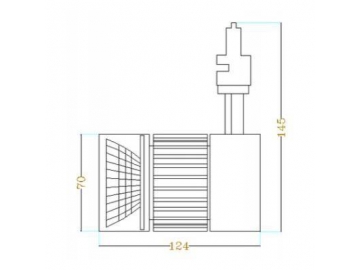

- 10-15W

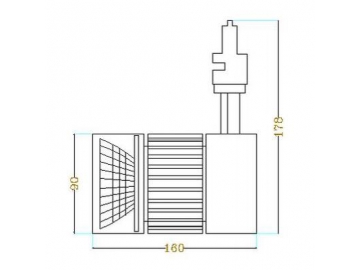

- 20-35W

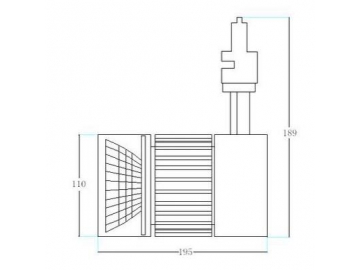

- 40-45W
Specification
- LED Chip Citizen/CREE COB
- LED Driver Tridonic / Philips / OSRAM / Lifud / BOKE
- Dimmable DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.95
- THD <12%
- Input Voltage AC220-240V/ AC100-240V 50/60Hz
- CRI 80+90+97+
- CCT 2700K, 3000K, 4000K, 5000K
- Luminous Efficacy 90-110lm/W @CRI80 (whole lamp)
- Lens Beam Angle 10°, 24°, 36°
- Body Material 6063 brushed aluminum alloy
- Light color Warm white, pure white, cold white
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white/silver
- Track adapter Global/PowerGear
- Track adapter phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Application

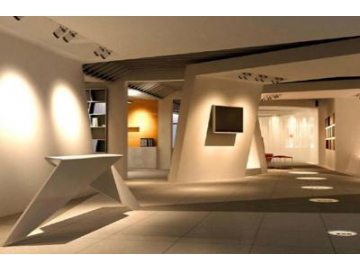

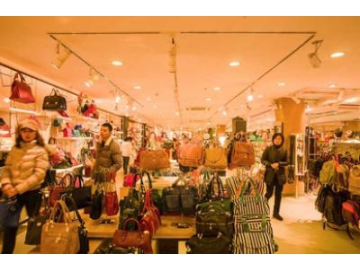

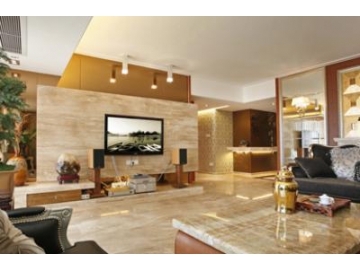

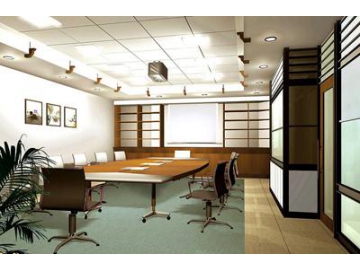

R series LED track light can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
