Automatic Mini/Capillary Blood Collection Tube Assembly Line
Request a Quote
View All: http://medical-machinery.com/1-3-1-automatic-mini-capillary-blood-collection-tube-assembly-line.html
10,000-12,000 pcs/h
Automatic production line for assembling mini capillary blood collection tubes
- Production capacity 10,000-12,000 pcs/h
- Tube size Ø11×45mm
- Cap size As per client’s samples
Finished Product Samples
Capable of producing up to 12,000 mini capillary blood collection tubes per hour, this automatic assembly line is designed to handle the precise assembly of 11×45mm mini capillary blood collection tubes. The assembly system processes each step, from tube loading to foam tray packaging, ensuring consistency and quality in high-volume medical production. With a focus on accuracy, the line manages additive dosing and capping, tailored for the demands of different tube type production.
Work Flow
- Tube loading
- Inversion detection
- Additive dosing (EDTA, heparin, clot activator, sodium citrate)

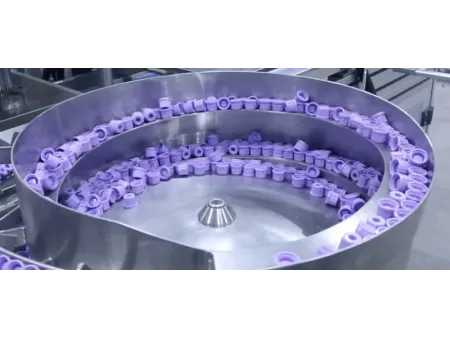

- Capping

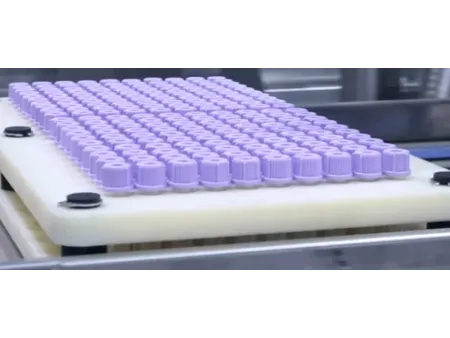

- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
Production capacity | 10,000-12,000 pcs/h |
Tube size | Ø11×45mm |
Cap size | As per client’s samples |
Control system | PLC control with touch screen |
Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
Blood clot activator (BCA): 10 sets of precision ceramic pump | |
Sodium citrate: 5 sets of precision ceramic pump (100-600μL ±6%) | |
Additive drying system | 3 PTC dust-free drying machines |
Detection system | Inverted tube detection before additive dosing |
Alarm for shortage of foam trays | |
Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
Power | 20kW/AC380V |
